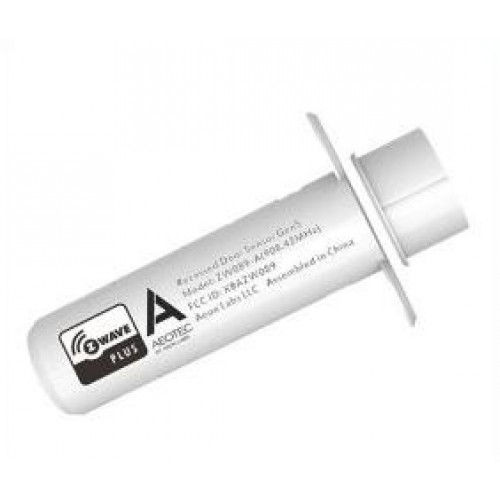

Z-Wave Recessed Door and Window Sensor Invisible Design Ness
Ness Z-Wave recessed door and window sensor features an invisible design and easy installation. Ideal for smart home and alarm automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aeotec Recessed Door Sensor Gen5, Z-Wave Invisible Door Sensor, Recessed Magnetic Door Contact
Technical Specifications
- Product Type: Recessed magnetic door and window sensor
- Z-Wave Model: ZW089
- Ness SKU: 106-243
- Wireless Protocol: Z-Wave Plus
- Detection: Door or window open/closed status
- Battery: CR2 lithium cell, 3 V, 800 mAh
- Battery Life: Approximately 1 year
- Low Battery Detection: Yes
- Operating Distance: Up to 91 m outdoors
- Maximum Magnet Distance: Approximately 10 mm
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 8% to 80% RH
- Installation Environment: Indoor, dry locations only
- Dimensions (H x L x W): 19mm x 64mm x 19mm
- Weight: 0.1 kg
Key Features
- Invisible recessed installation within the door or window frame
- Slim cylindrical sensor body for discreet fitting
- Reports open and closed status to a compatible Z-Wave controller
- Z-Wave Plus communication with low-power operation
- Low-battery reporting for maintenance planning
- Suitable for smart home, security and alarm automation systems
- Includes separate main sensor and magnetic sensor components
Professional Installation Requirements
- No licensed electrical installation is required. Installation involves drilling aligned recesses in the door or window frame and should follow the manufacturer’s instructions; configure the sensor with a compatible Z-Wave controller after fitting.
Applications
- Residential smart home automation
- Door and window security monitoring
- Intruder alarm systems with compatible Z-Wave gateways
- Lighting, heating or appliance automation triggered by door status
- Discreet monitoring of internal doors, windows and cabinets
Standards & Compliance
- AS/NZS 4268:2017 Amd 1:2021 — applicable radiocommunications equipment standard framework for short-range wireless devices; product-specific declaration was not located
- AS/NZS 2201.1:2007 — applicable to intruder alarm systems installed at client premises, including systems using wire-free links; system-level applicability
Environmental Benefits
- Low-power wireless operation avoids a dedicated mains power connection
- Replaceable CR2 battery allows the sensor to be maintained without replacing the complete unit
- Recessed installation protects the sensor from accidental impact and may support a longer service life
- Compact design reduces the visible material footprint compared with larger surface-mounted sensors
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness Corporation warranty terms and exclusions.
Available Now
Available through Ness and authorised Australian security, automation and electrical distributors.
