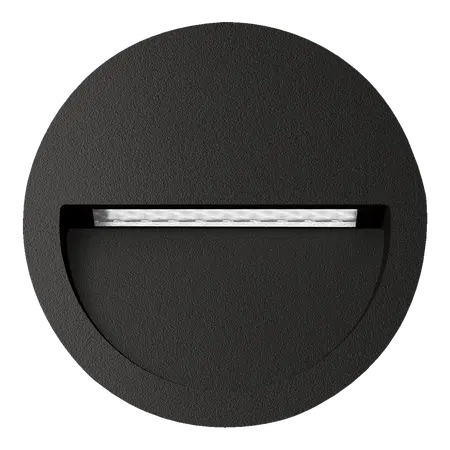

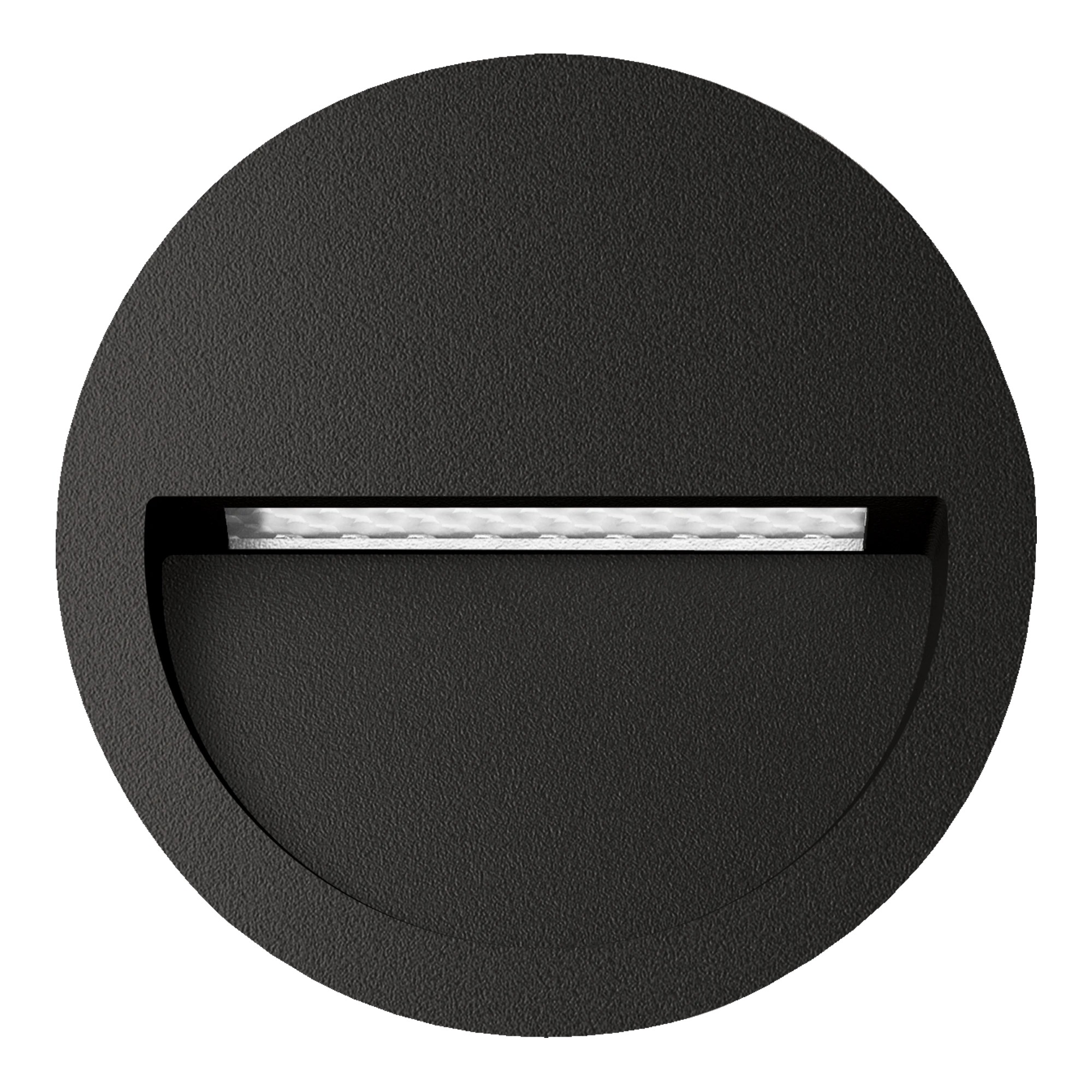

Zac-Pro 5 Recessed Round LED Step Light 5W 240V IP65 Black Domus
Domus Zac-Pro 5 recessed round LED step light, 5W, 240V, IP65, tri-colour, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: ZAC-PRO-5 Round Recessed Step Light, Domus Recessed LED Wall Light, Outdoor LED Step Light
Technical Specifications
- Input Voltage: 240V AC
- Power: 5W
- Light Output: 305 lm at 3000K, 348 lm at 4000K, 365 lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K switchable
- LED Type: SMD
- Colour Rendering Index: ≥90
- Beam Angle: 120°
- Dimmable: No
- LED Lifespan: 50,000 hours
- Ingress Protection: IP65
- Mounting: Recessed
- Body Material: Cast aluminium
- Finish: Black polyester powder coat
- Cable Entry: TPS cable gland
- Cutout Diameter: 100 mm without recessed box; 110 mm with recessed box
- Dimensions (H x L x W): 37mm x 115mm x 115mm
- Weight: 0.6 kg
Key Features
- Tri-colour switchable LED technology
- Downward illumination for pathways, steps and low-level outdoor areas
- IP65-rated construction for protection against dust and water jets
- Slimline cast-aluminium body with durable black powder-coated finish
- Suitable for external wall and step-lighting applications
- Low 5W power consumption
- Non-dimmable integrated LED design
Professional Installation Requirements
- Installation and mains electrical connection must be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Correct sealing and cable entry are required to maintain the IP65 rating.
Applications
- Outdoor steps and stairways
- Low-level pathway lighting
- External wall lighting
- Garden paths and planter-box areas
- Residential and commercial landscape lighting
Standards & Compliance
- AS/NZS 3000:2018 — Electrical installations and wiring requirements applicable to 240V lighting installation
- AS/NZS 60598.1:2017 — General requirements and tests for luminaires; applicable luminaire safety standard
Environmental Benefits
- LED technology provides useful illumination from a low 5W input
- 50,000-hour rated LED life can reduce replacement frequency and material waste
- Cast aluminium body and trim are recyclable at end of product life
- Low power consumption can support reduced operational energy use compared with higher-wattage conventional lighting
Warranty Information
Three-year replacement warranty, subject to Domus Lighting warranty terms and conditions. Domus states that products must be installed by a licensed electrician for warranty coverage.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
