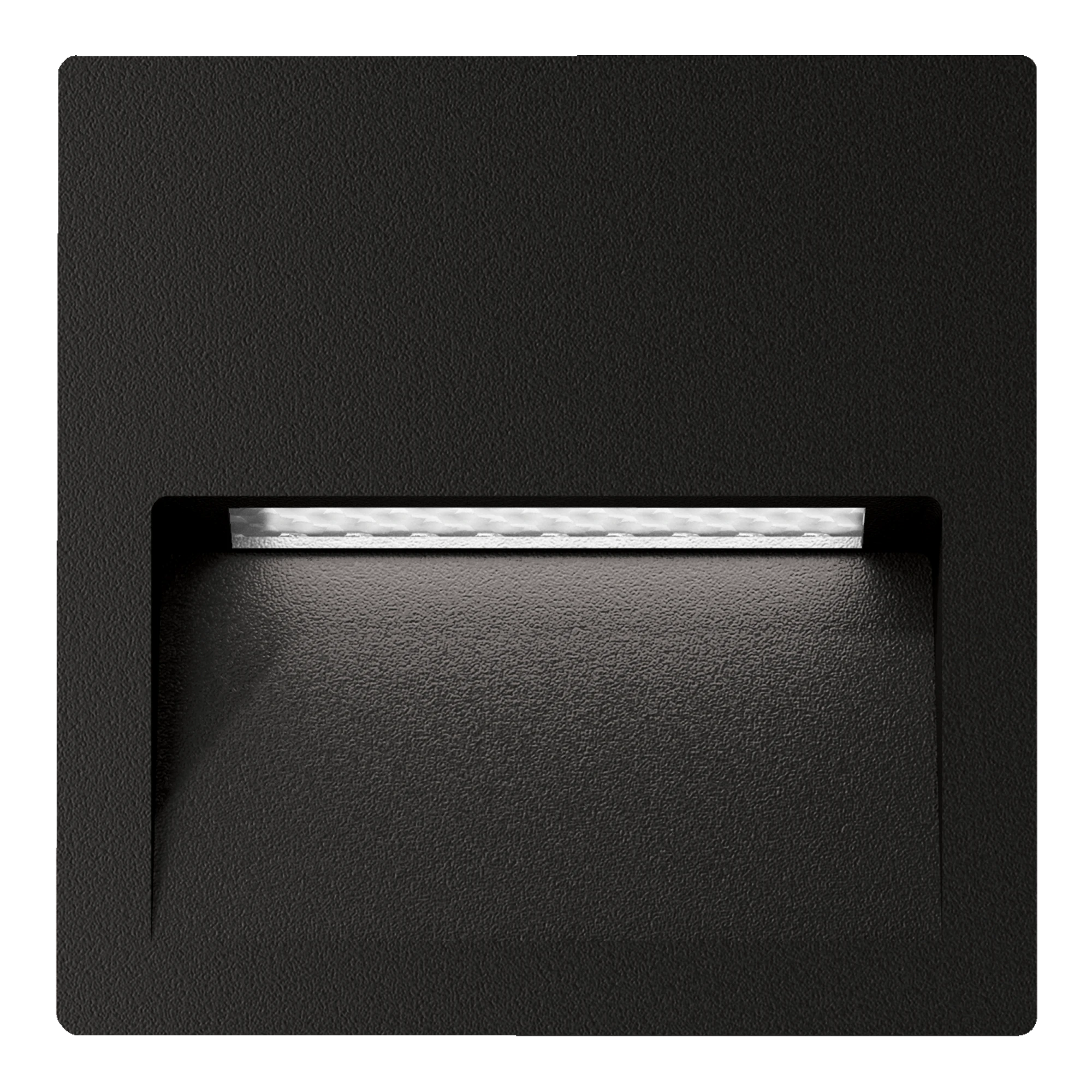

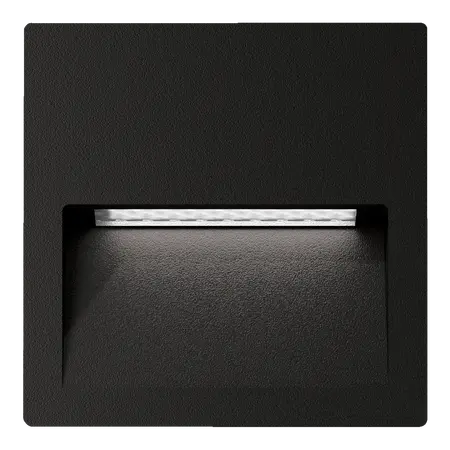

Zac-Pro 5 Recessed Square LED Step Light 5W 240V IP65 Black Domus
Domus Zac-Pro 5 recessed square LED step light, 5W, 240V, IP65, tri-colour, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Zac-Pro 5 SQR, Recessed LED Wall Light, Outdoor LED Step Light, Square Recessed Pathway Light
Technical Specifications
- Input Voltage: 240V AC
- Power: 5W
- Luminous Output: 305 lm at 3000K; 348 lm at 4000K; 365 lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K switchable
- CRI: ≥90
- Beam Angle: 120°
- LED Type: SMD
- Dimming: No
- IP Rating: IP65
- Rated Lifespan: 50,000 hours
- Material: Cast aluminium body with powder-coated black trim
- Mounting: Recessed
- Cut-out: 100mm without recessed box or 110mm x 110mm with recessed box
- Dimensions (H x L x W): 115mm x 60mm x 115mm
- Weight: 0.45 kg
Key Features
- Square recessed design for step, wall and pathway lighting
- Tri-colour switchable output for warm, neutral or cool white light
- IP65 protection for suitable outdoor applications
- Slimline cast-aluminium construction with black powder-coated finish
- Low 5W power consumption with up to 365 lumens output
- High colour rendering with CRI ≥90
- Wide 120° beam angle for downward walkway illumination
- Three-year replacement warranty when warranty conditions are met
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Isolate the power supply before installation and follow the manufacturer's installation instructions for 240V wiring and recessed mounting.
Applications
- Outdoor steps and stairways
- External pathways and walkways
- Low-level wall lighting
- Porches and entryways
- Planter boxes and front-wall installations where suitable wiring is provided
Standards & Compliance
- AS/NZS 60598.1 – general requirements for luminaires
- AS/NZS 60598.2.2 – particular requirements for recessed luminaires
Environmental Benefits
- LED technology provides lower energy consumption than equivalent conventional light sources
- Rated 50,000-hour lifespan can reduce replacement frequency and material waste
- Cast aluminium components and trim can be recycled at end of product life
- Low 5W operating power supports efficient pathway and safety lighting installations
Warranty Information
Three-year replacement warranty, subject to Domus Lighting warranty conditions including purchase through an authorised distributor, installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
