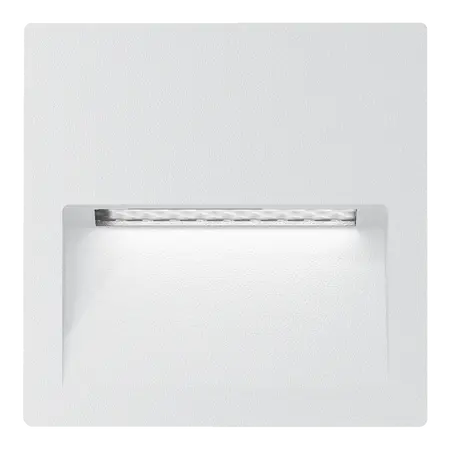

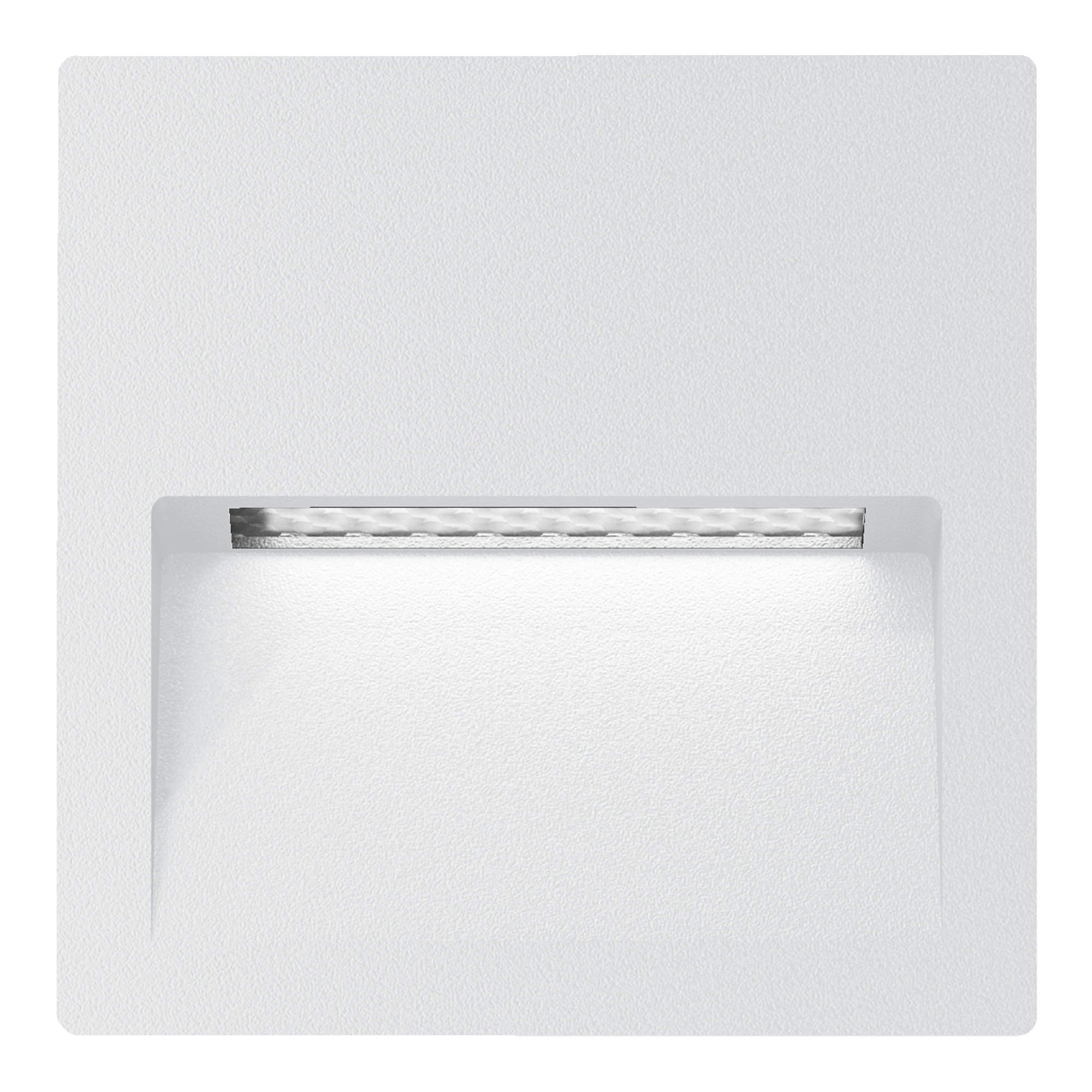

Zac-Pro 5 Recessed Square LED Step Light 5W 240V IP65 White Domus
Domus Zac-Pro 5 recessed square LED step light, 5W, 240V, IP65, tri-colour, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: ZAC-PRO-5-240V-SQR, Zac-Pro 5 Square Step Light, Recessed LED Wall Light, Exterior LED Step Light
Technical Specifications
- Input Voltage: 240V AC
- Power: 5W
- Light Source: SMD LED
- Colour Temperature: 3000K / 4000K / 5000K selectable
- Lumen Output: 305lm at 3000K, 348lm at 4000K, 365lm at 5000K
- Colour Rendering Index: ≥90
- Beam Angle: 120°
- Dimming: No
- Ingress Protection: IP65
- LED Lifespan: 50,000 hours
- Mounting: Recessed
- Cutout Without Recessed Box: 100mm diameter
- Cutout With Recessed Box: 110mm x 110mm
- Finish: White powder-coated cast aluminium
- Item Number: 10313
- Dimensions (H x L x W): 115mm x 115mm x 37mm
- Weight: 0.5 kg
Key Features
- Tri-colour selectable light output
- Slimline square recessed design
- Cast-aluminium body with powder-coated white finish
- Special chromate treatment for enhanced corrosion resistance
- IP65 weatherproof construction for suitable exterior applications
- Soft downward illumination for pathways, stairs and landscape areas
- TPS cable gland for installation
- Non-dimmable 240V mains model
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Confirm that the installation location is suitable for the fitting's IP65 rating and 240V mains supply.
Applications
- Residential and commercial step lighting
- Exterior pathways and stairs
- Retaining walls and planter boxes
- Landscape lighting
- Low-level wall and walkway illumination
Standards & Compliance
- AS/NZS 60598.2.2:2016, including amendments, for recessed luminaires
- AS/NZS 60598.1 applicable general requirements for luminaires
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- 5W LED technology provides low-power illumination compared with conventional higher-wattage light sources
- Long rated LED lifespan of 50,000 hours can reduce replacement frequency and product waste
- Cast aluminium construction is durable and recyclable at end of service life
- Selectable colour temperature allows the light output to be matched to the application without replacing the fitting
Warranty Information
Three-year replacement warranty for residential applications and 12-month replacement warranty for commercial applications, subject to Domus Lighting warranty conditions. Installation by a licensed electrician is required for warranty eligibility.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
