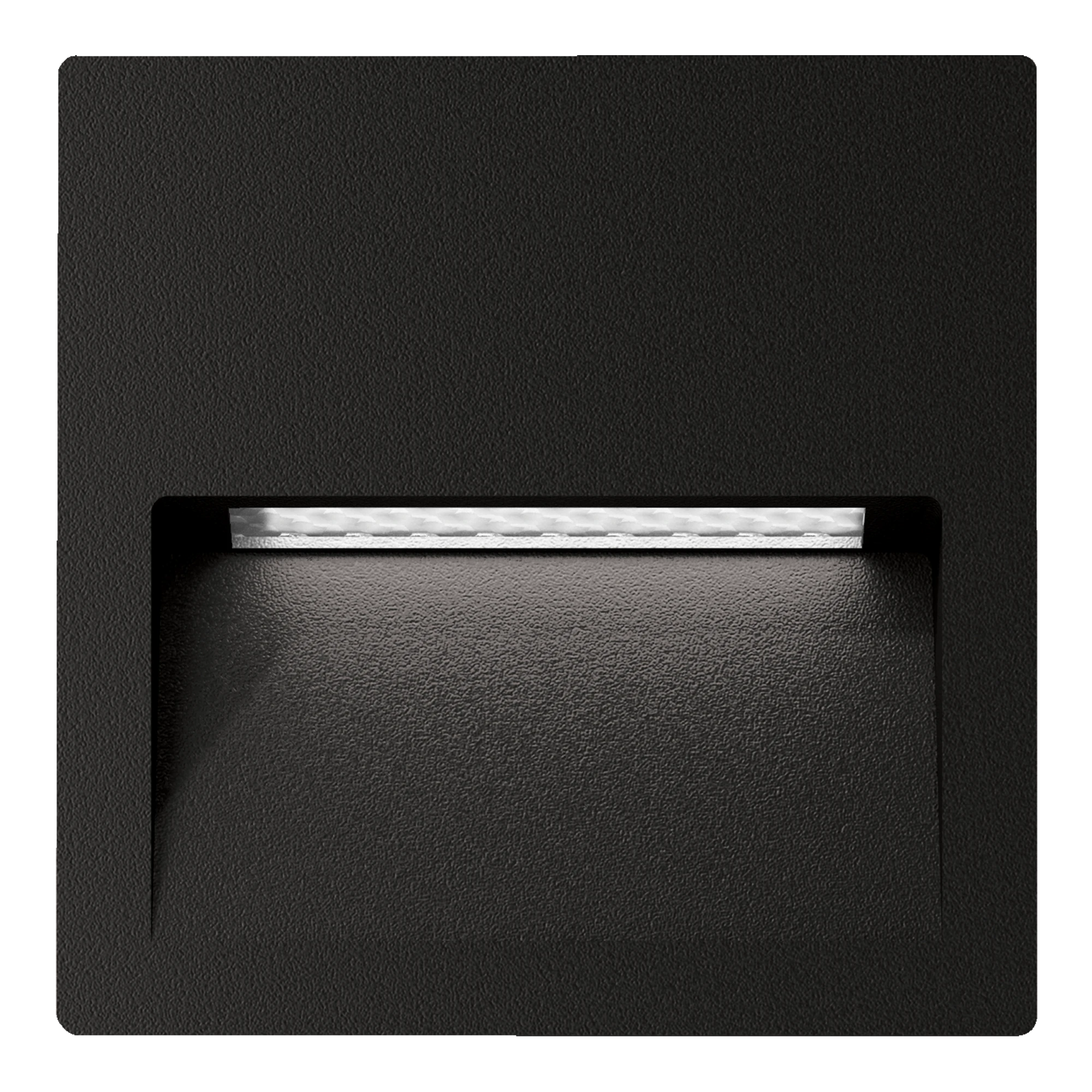

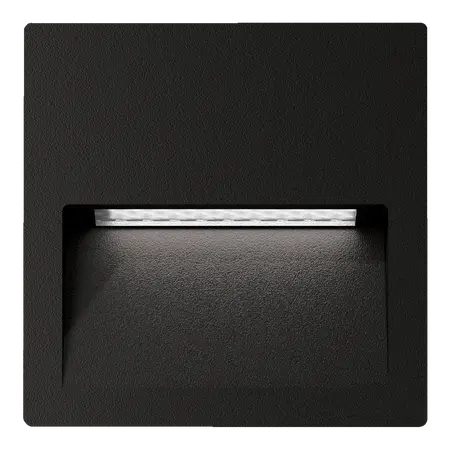

Zac-Pro 5 Recessed Square LED Step Light 5W 24V IP65 Black Domus
Domus Zac-Pro 5 recessed square LED step light, 5W, 24V, IP65, tri-colour, black. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: ZAC-PRO-5-LV-SQR, Domus Zac-Pro 5 Square Recessed Step Light, 24V LED Wall Light, Tri-Colour LED Step Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 5W
- LED Type: SMD
- Lumen Output: 305lm at 3000K, 348lm at 4000K, 365lm at 5000K
- Colour Temperature: 3000K / 4000K / 5000K switchable
- Colour Rendering Index: ≥90
- Beam Angle: 120°
- Dimming: Yes, when used with a dimmable driver
- IP Rating: IP65
- Lifespan: 50,000 hours
- Operating Temperature: -20°C to 45°C
- Material: Cast aluminium with chromate treatment and polyester powder-coated finish
- Driver Requirement: 12/24V DC constant-voltage LED driver, not included
- Wiring: Wire fittings in parallel
- Cut-out Without Recessed Box: 100mm
- Cut-out With Recessed Box: 110mm x 110mm
- Dimensions (H x L x W): 115mm x 115mm x 37mm
- Weight: 0.4 kg
Key Features
- Recessed square design for step, pathway and low-level wall lighting
- Tri-colour selectable output for warm, neutral or cool white light
- Suitable for 12V or 24V DC low-voltage systems
- IP65-rated construction for outdoor applications
- Cast-aluminium body with corrosion-resistant surface treatment
- Soft downward illumination for stairs, pathways and landscape areas
- Black finish
- Requires a compatible 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, wire fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Residential and commercial stair lighting
- Outdoor pathways and walkways
- Retaining walls and front wall installations
- Planter boxes and landscape lighting
- Low-level architectural and garden lighting
Standards & Compliance
- AS/NZS 3000:2018 Electrical Installations applies to the electrical installation and wiring of the fitting.
- AS/NZS 60598.1:2025 is the applicable general luminaire safety standard for this type of LED light fitting.
- AS/NZS 60598.2.2:2026 is applicable to recessed luminaires; product-specific certification details were not stated by the manufacturer.
Environmental Benefits
- 5W LED technology provides low-power illumination compared with traditional halogen step lights.
- Up to 50,000-hour rated lifespan can reduce replacement frequency and material waste.
- Cast aluminium construction and the powder-coated finish support product durability and longer service life.
- Low-voltage 12/24V DC operation is suitable for efficient landscape lighting systems when paired with an appropriately sized driver.
Warranty Information
Three-year replacement warranty for residential applications. Domus Lighting's current warranty statement lists exterior LED steplights under a 3-year residential replacement warranty and a 12-month commercial replacement warranty. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; confirm current stock and lead time with the distributor.
