Trade Discount 25%

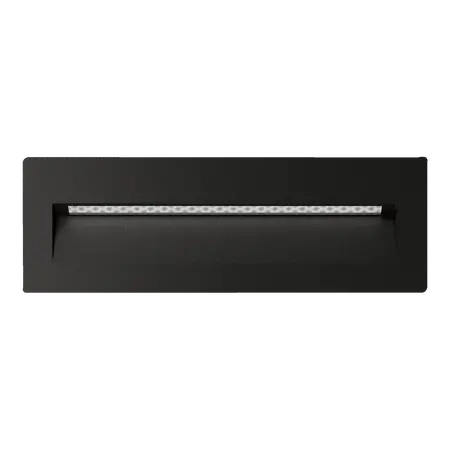

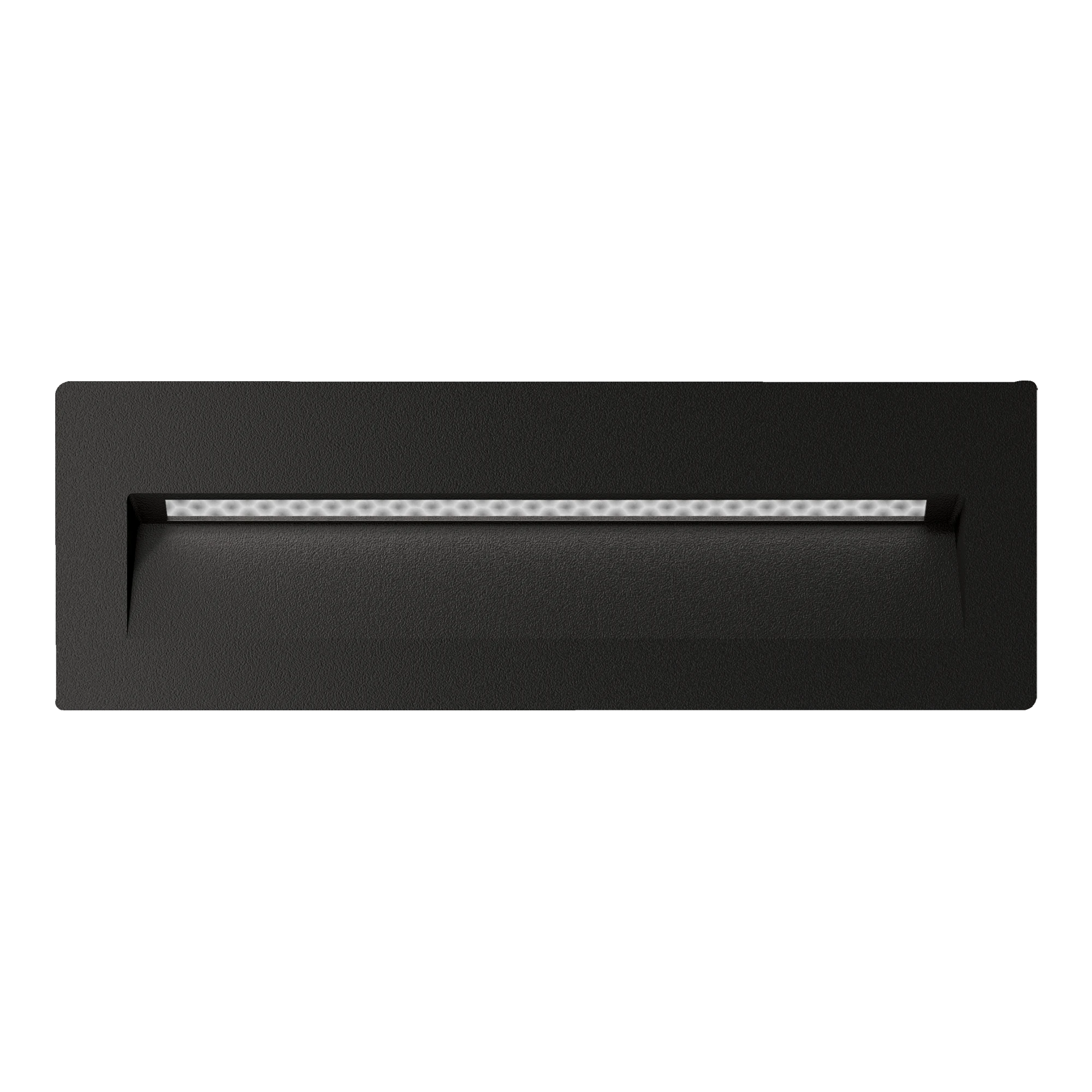

Zac-Pro 8 Recessed Rectangular LED Step Light 8W 24V Black Domus
Domus Zac-Pro 8 recessed rectangular LED step light, 8W, 24V, IP65, tri-colour, black. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: ZAC-PRO-8-12/24V, recessed LED step light, LED brick light, LED pathway light, recessed wall light
Technical Specifications
- Input Voltage: 24V DC
- Power: 8W
- Light Source: SMD LED
- Colour Temperature: 3000K, 4000K or 5000K selectable
- Luminous Flux: 421lm at 3000K; 462lm at 4000K; 495lm at 5000K
- Colour Rendering Index: CRI ≥90
- Beam Angle: 120°
- Dimming: Yes, when used with a compatible dimmable driver
- Ingress Protection: IP65
- LED Lifespan: 50,000 hours
- Material: Cast aluminium body with chromate treatment and polyester powder-coated finish
- Installation Type: Recessed
- Driver Requirement: 12/24V DC constant-voltage LED driver, not included
- Wiring: Multiple fittings must be wired in parallel
- Operating Temperature: -20°C to 45°C
- Dimensions (H x L x W): 76mm x 226mm x 53.5mm
- Weight: 0.5 kg
Key Features
- Tri-colour switchable LED output
- Slimline rectangular recessed design
- IP65-rated construction for suitable outdoor applications
- Black powder-coated aluminium finish
- Soft 120° downward illumination for steps, pathways and low-level areas
- High colour rendering with CRI ≥90
- Long rated LED lifespan of 50,000 hours
- Suitable for 24V DC low-voltage installations
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Requires a compatible 24V DC constant-voltage LED driver, with the fitting wired in parallel. The driver and electrical connections must be suitably protected for the installation environment.
Applications
- Residential and commercial exterior steps
- Low-level pathway lighting
- Outdoor wall and stair riser illumination
- Planter boxes and garden structures with low-voltage wiring
- Front walls, entryways and architectural landscape lighting
Standards & Compliance
- AS/NZS 3000:2018 – Electrical installations, including wiring and connection requirements
Environmental Benefits
- LED technology provides lower energy consumption than comparable halogen lighting
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- Aluminium construction is recyclable at end of service life
- Low-voltage 24V operation supports use with efficient LED driver systems
Warranty Information
Three-year replacement warranty as stated by Domus Lighting. Warranty coverage is subject to the manufacturer's conditions, including installation by a licensed electrician; commercial warranty terms may differ.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
