Zac-Pro 8 Recessed Rectangular LED Step Light 8W 24V White Domus

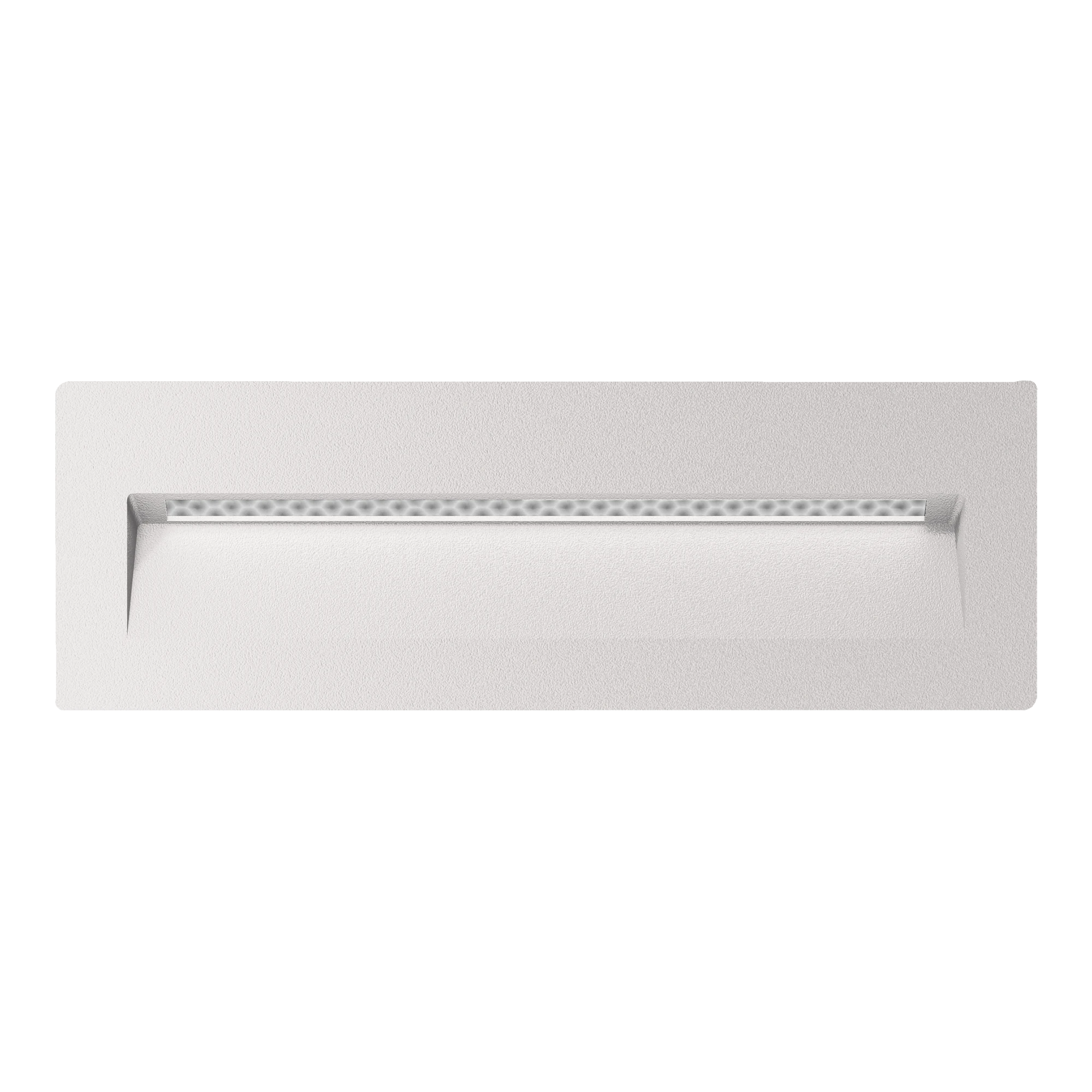

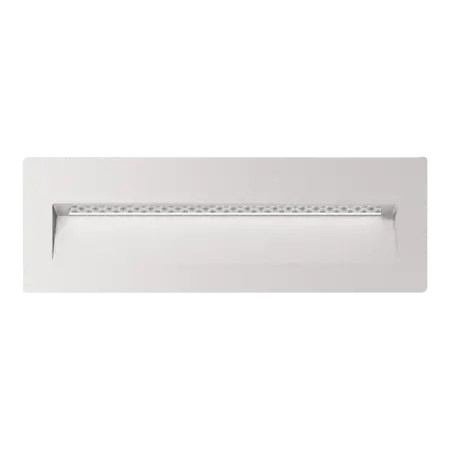

Domus Zac-Pro 8 recessed rectangular LED step light, 8W, 24V, IP65, tri-colour, white. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Zac-Pro 8 LED Step Light, Recessed LED Wall Light, Rectangular LED Brick Light, Outdoor LED Pathway Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 8W
- LED Type: SMD
- Colour Temperature: 3000K / 4000K / 5000K tri-colour
- Lumen Output: 421lm at 3000K, 462lm at 4000K, 495lm at 5000K
- CRI: ≥90
- Beam Angle: 120°
- IP Rating: IP65
- Dimming: Yes, when used with a dimmable driver
- Lifespan: 50,000 hours
- Material: Cast aluminium with chromate treatment and polyester powder-coated finish
- Installation: Recessed mounting
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Cutout Without Recessed Box: 210mm x 60mm
- Cutout With Recessed Box: 220mm x 70mm
- Dimensions (H x L x W): 76mm x 226mm x 53.5mm
- Weight: 0.5 kg
Key Features
- Rectangular recessed design for step, wall and pathway lighting
- Soft downward illumination for stairs, walkways and low-level outdoor areas
- Tri-colour switchable output with 3000K, 4000K and 5000K settings
- IP65 protection against dust and low-pressure water jets
- Slimline cast-aluminium construction
- White powder-coated finish for exterior applications
- Dimmable with a compatible dimmable 12/24V DC driver
- TPS cable gland for installation convenience
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, wire fittings in parallel and follow the manufacturer's installation instructions and applicable electrical requirements.
Applications
- Residential and commercial step lighting
- Outdoor pathways and walkways
- Stair risers and entry areas
- Planter boxes and garden features
- Exterior walls and facade lighting
- Low-level architectural and landscape lighting
Standards & Compliance
- AS/NZS 3000:2018 – Electrical installations and Wiring Rules, applicable to installation
- AS/NZS 60598.1:2025 – Luminaires, general requirements and tests, applicable to the luminaire category
- AS/NZS 60598.2.2:2026 – Particular requirements for recessed luminaires, applicable to recessed installation
Environmental Benefits
- 8W LED technology provides low operating energy consumption compared with higher-wattage conventional light sources
- Published LED lifespan of up to 50,000 hours can reduce replacement frequency and product waste
- Cast aluminium construction is durable and recyclable at end of service life
- Tri-colour selection can help match light output to application without replacing the fitting
Warranty Information
Three-year replacement warranty for residential applications, subject to Domus Lighting warranty conditions. Commercial applications are covered by a 12-month replacement warranty for LED step lights. Installation by a licensed electrician is required for warranty eligibility.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
