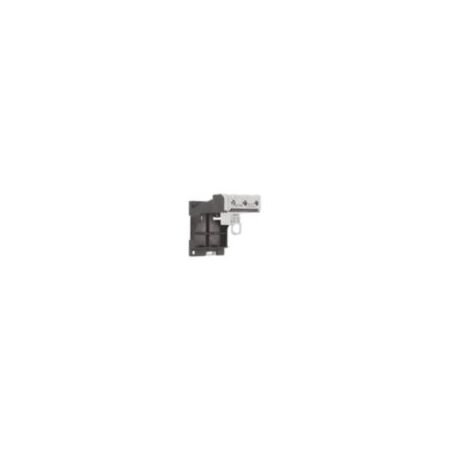

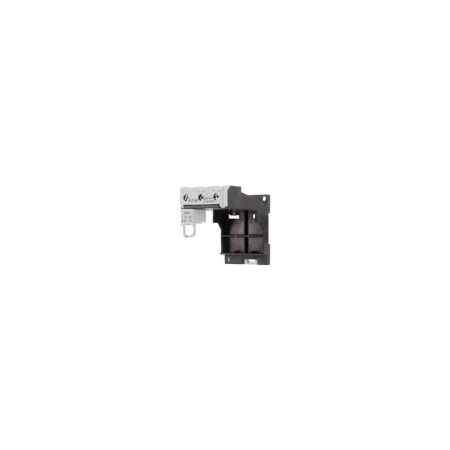

ZB65 Mounting Base for Overload Relay | 600V Voltage Rating | IP00 Protection | -25°C to 55°C Operating Temp by Eaton
ZB65 mounting base designed for separate installation of Eaton ZB65 overload relay, featuring a 600V voltage rating and IP00 protection. Ideal for industrial and commercial electrical control panels, it ensures reliable performance in temperatures ranging from -25°C to 55°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ZB65 Mounting Base for Overload Relay | 600V Voltage Rating | IP00 Protection | -25°C to 55°C Operating Temp by Eaton
Brand: Eaton
SKU: Y7-278474
Alternatively Known As: ZB65 Mounting Base, Eaton ZB Accessory Base, ZB65 Relay Mounting Base
Technical Specifications
- Product Length/Depth: 119 mm
- Product Height: 92 mm
- Product Width: 60 mm
- Voltage rating - max: 600 V
- Rated operational current for specified heat dissipation (In): 75 A
- Ambient operating temperature: -25 °C to 55 °C
- Degree of protection: IP00
- Equipment heat dissipation, current-dependent Pvid: 1.5 W
- Static heat dissipation, non-current-dependent Pvs: 0 W
- Heat dissipation per pole, current-dependent Pvid: 0.5 W
- Dimensions (H x L x W): 92mm x 119mm x 60mm
- Weight: 0.137 kg
Key Features
- Designed for separate mounting of ZB65 overload relay
- Meets product standard requirements for corrosion resistance, thermal stability, and UV resistance
- Voltage rating up to 600 V
- Ambient operating temperature range from -25 °C to 55 °C
- Degree of protection: IP00
Professional Installation Requirements
- Installation should be performed by a qualified electrician or panel builder, ensuring compliance with electrical standards and proper integration with switchgear.
Applications
- Mounting base for Eaton ZB65 overload relay in electrical control panels
- Used in industrial and commercial electrical installations requiring overload protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports efficient electrical system design reducing energy waste
- Durable construction reduces need for frequent replacements
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller ZB65-XEZ individual mounting base is available for immediate purchase, ideal for industrial and commercial electrical control panel applications.
