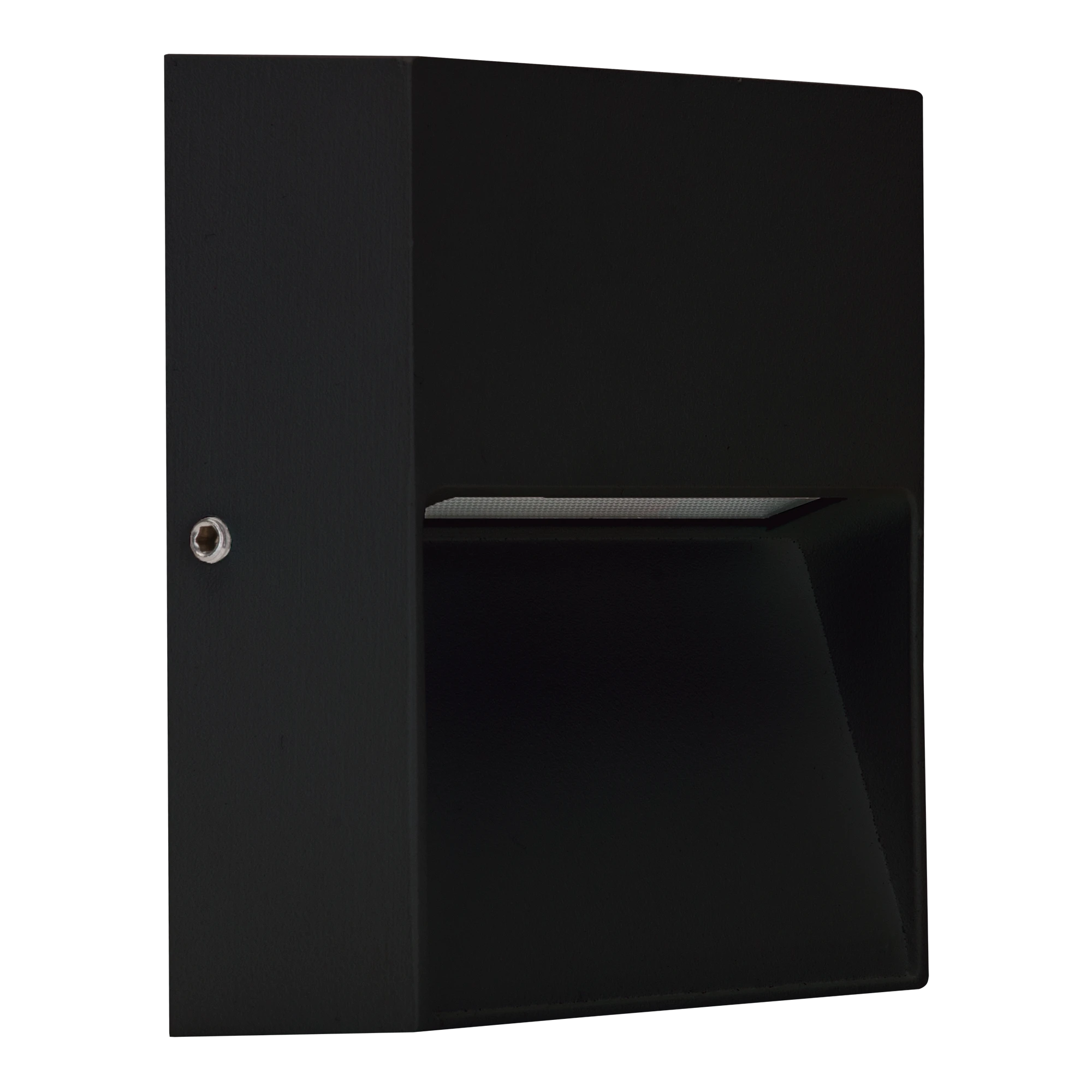

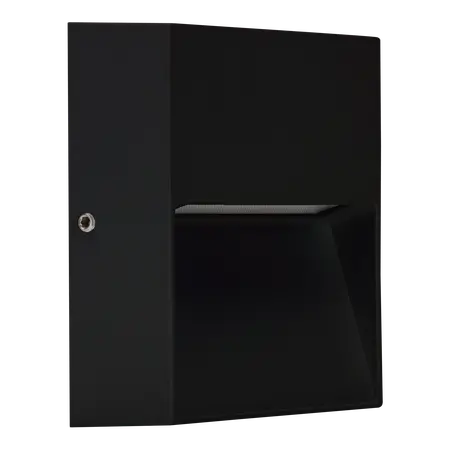

Zeke-Pro 5 Surface Mount LED Step Light 5W 240V Black Domus
Domus Zeke-Pro 5 surface mount square LED step light, 5W, 240V, IP65, tri-colour, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Zeke-Pro 5 SQR LED Steplight, Surface-Mount LED Wall Light, Outdoor LED Pathway Light
Technical Specifications
- Model: ZEKE-PRO-5-SQR-BLK
- Variant ID: 10326
- Input Voltage: 240V AC
- Power: 5W
- Finish Colour: Black
- LED Type: SMD
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Lumen Output: 305lm at 3000K, 348lm at 4000K, 365lm at 5000K
- Beam Angle: 120°
- CRI: ≥90
- IP Rating: IP65
- Dimming: No
- Rated Lifespan: 50,000 hours
- Body Material: Cast aluminium with chromate treatment and polyester powder-coated finish
- Cable Entry: TPS cable gland
- Dimensions (H x L x W): 34mm x 105mm x 105mm
- Weight: 0.6 kg
Key Features
- Square surface-mounted design for walls, steps and pathways
- Tri-colour selectable white light
- Downward illumination suitable for low-level lighting
- IP65-rated construction for outdoor applications
- Slimline cast-aluminium body with durable black finish
- Suitable where recessed mounting is not practical
- Built-in LED light source
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Ensure the fitting is correctly sealed and installed only in locations suitable for its IP65 rating.
Applications
- Outdoor steps and stairways
- Low-level pathway lighting
- External wall lighting
- Planter boxes
- Front wall installations
- Outdoor areas where recessed mounting is not possible
Standards & Compliance
- AS/NZS 3000:2018 — Electrical installations and wiring requirements for connection of the 240V luminaire
- AS/NZS 60598.1:2025 — General requirements and tests for luminaires; applicable product safety standard
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen or incandescent lighting
- 50,000-hour rated lifespan can reduce replacement frequency and installation waste
- Cast aluminium construction is recyclable at end of service life
- Tri-colour selection can help avoid over-lighting by selecting the required colour temperature
Warranty Information
Three-year replacement warranty for residential exterior LED steplights. Commercial applications are covered by a 12-month replacement warranty. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
