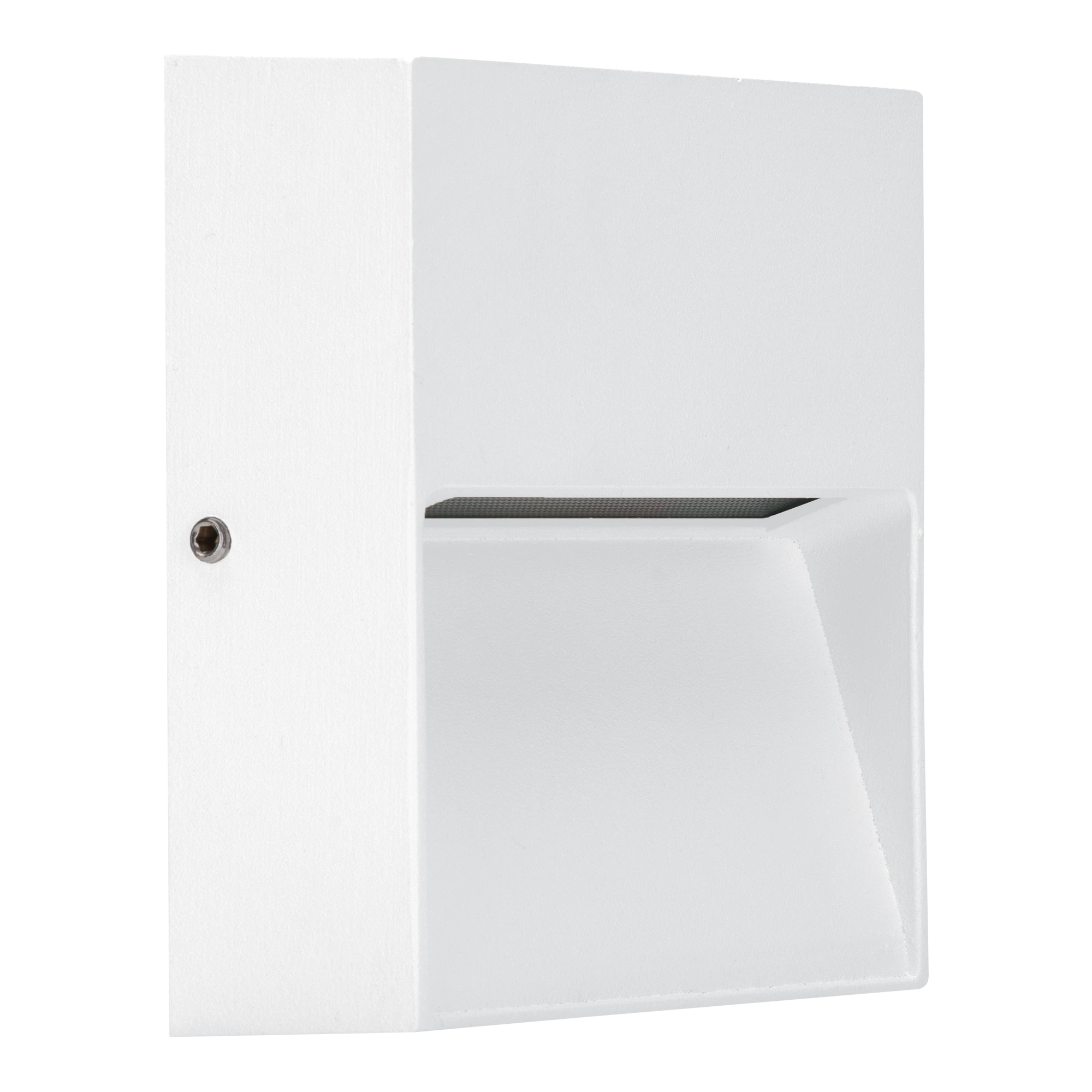

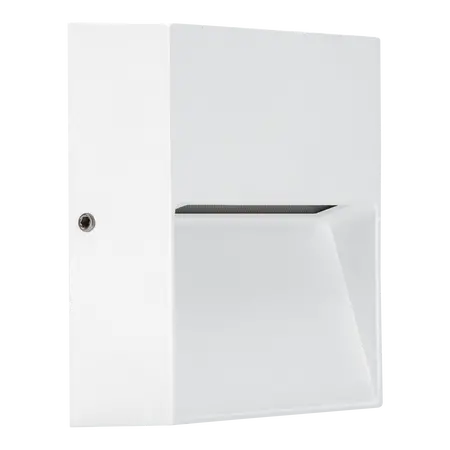

Zeke-Pro 5 Surface Mount LED Step Light 5W 240V White Domus
Domus Zeke-Pro 5 surface mount square LED step light, 5W, 240V, IP65, tri-colour, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Zeke-Pro 5 SQR LED Steplight, Surface-Mounted LED Wall Light, Outdoor LED Pathway Light
Technical Specifications
- Input Voltage: 240V AC
- Power: 5W
- Light Output: 305lm at 3000K, 348lm at 4000K, 365lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Beam Angle: 120°
- LED Type: SMD
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP65
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Body Material: Cast aluminium
- Finish: White polyester powder-coated finish over chromate-treated aluminium
- Mounting: Surface mount
- Cable Gland: TPS
- Dimensions (H x L x W): 105mm x 105mm x 34mm
- Weight: 0.6 kg
Key Features
- Square surface-mounted design for steps, pathways and walls
- Tri-colour switchable output with 3000K, 4000K and 5000K settings
- IP65-rated construction for suitable outdoor applications
- Downward illumination for low-level pathway and step lighting
- Slimline cast-aluminium body with durable powder-coated finish
- Built-in LED light source
- Suitable where recessed mounting is not practical
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian electrical installation requirements. Ensure cable entry and IP65 sealing are maintained for outdoor use.
Applications
- Outdoor steps and stairways
- Low-level pathway lighting
- External wall lighting
- Planter boxes
- Front wall installations
- Areas where recessed mounting is not possible
Standards & Compliance
- AS/NZS 60598.1:2025 – Luminaires, Part 1: General requirements and tests
- AS/NZS 3000:2018 – Electrical installations, where applicable to the installation
Environmental Benefits
- 5W LED operation can reduce energy consumption compared with higher-wattage conventional light sources
- 50,000-hour rated LED lifespan can reduce replacement frequency and product waste
- Cast aluminium body is recyclable at end of service life
- Low-maintenance integrated LED design supports longer service intervals
Warranty Information
Three-year replacement warranty for residential applications and 12-month replacement warranty for commercial applications, subject to Domus Lighting warranty conditions, licensed electrician installation and installation in accordance with the manufacturer's instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
