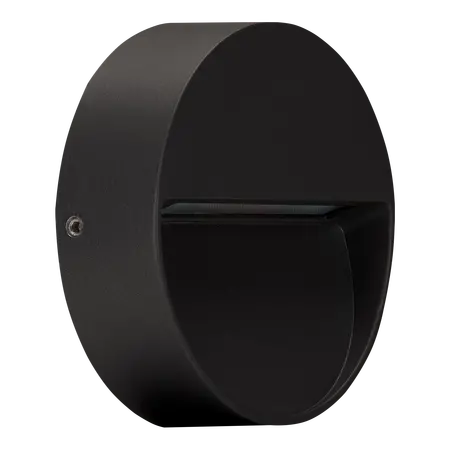

Zeke-Pro 5 Surface Mount Round LED Step Light 5W 240V Black Domus
Domus Zeke-Pro 5 surface mount round LED step light, 5W, 240V, IP65, tri-colour, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Zeke-Pro 5 LED Step Light, Surface Mounted LED Pathway Light, Outdoor LED Wall Light
Technical Specifications
- Input Voltage: 240V AC
- Power Consumption: 5W
- Light Source: Integrated SMD LED
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Lumen Output: 305lm at 3000K, 348lm at 4000K, 365lm at 5000K
- Beam Angle: 120°
- Colour Rendering Index: CRI ≥90
- Dimmable: No
- Ingress Protection: IP65
- LED Lifespan: 50,000 hours
- Body Material: Cast aluminium
- Finish: Black polyester powder-coated aluminium with chromate treatment
- Cable Entry: TPS cable gland
- Dimensions (H x L x W): 34mm x 105mm x 105mm
- Weight: 0.7 kg
Key Features
- Round surface-mounted design for walls, steps and low-level pathways
- Downward illumination suitable for external pathways and steps
- Tri-colour switching between warm white, neutral white and white
- IP65 protection for outdoor applications
- Slimline cast-aluminium body with durable powder-coated finish
- Integrated LED light source
- Suitable where recessed mounting is not possible
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Follow the manufacturer's installation instructions, isolate the 240V supply before fitting, and ensure all cable entries and seals maintain the IP65 rating.
Applications
- Outdoor step lighting
- Low-level pathway lighting
- External wall lighting
- Planter box lighting
- Front wall installations
- Outdoor areas where recessed mounting is not practical
Standards & Compliance
- AS/NZS 60598.1: Luminaires — general requirements and tests
- AS/NZS 60598.2.1: Particular requirements for fixed general-purpose luminaires
- AS/NZS 3000: Electrical installations, including connection to fixed wiring
Environmental Benefits
- 5W LED operation reduces energy consumption compared with higher-wattage conventional lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Cast aluminium components are recyclable at end of service life
- Integrated LED technology provides efficient illumination for outdoor pathway and step lighting
Warranty Information
Three-year replacement warranty for residential applications. Domus warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation instructions. Commercial applications are covered by a 12-month replacement warranty under the current Domus warranty schedule.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
