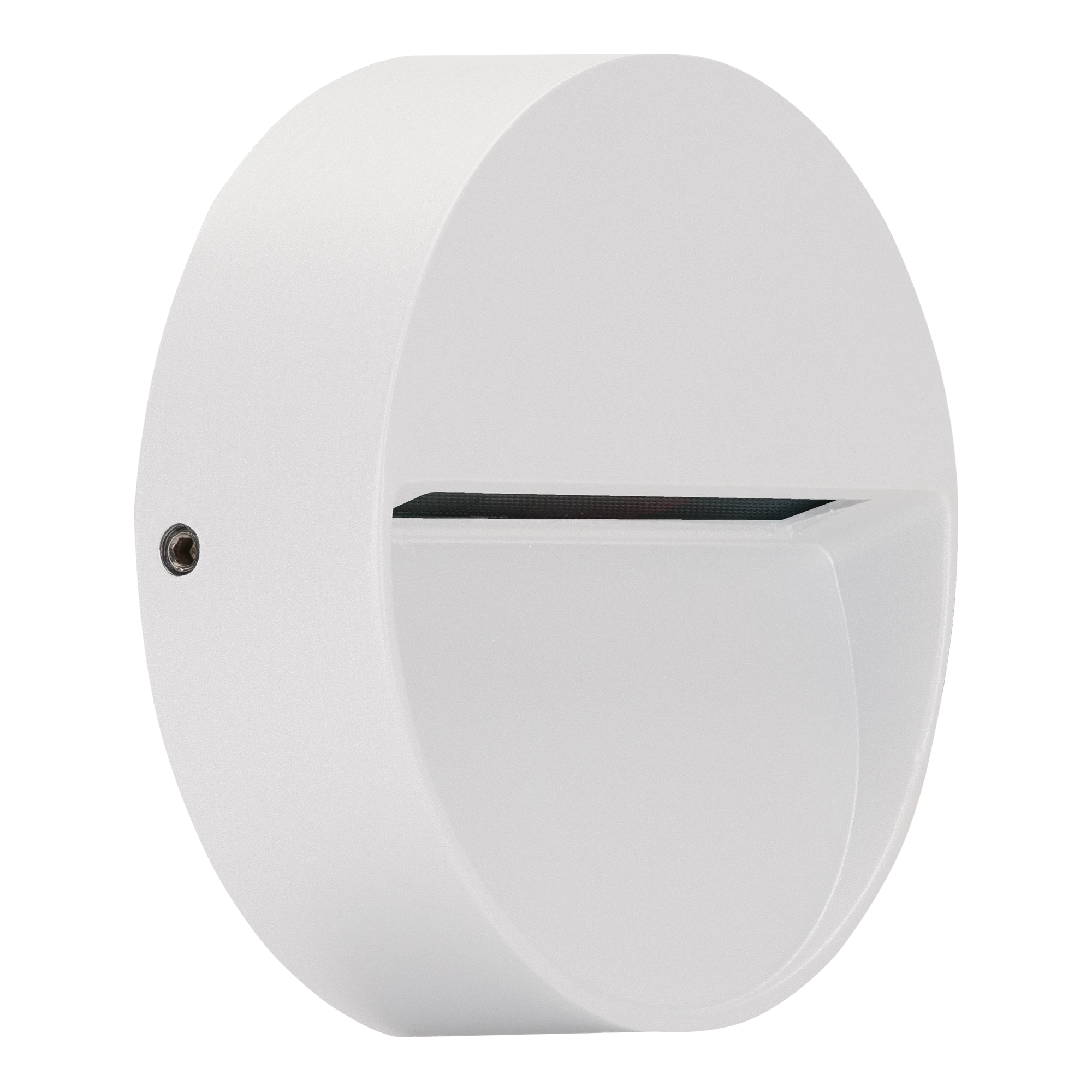

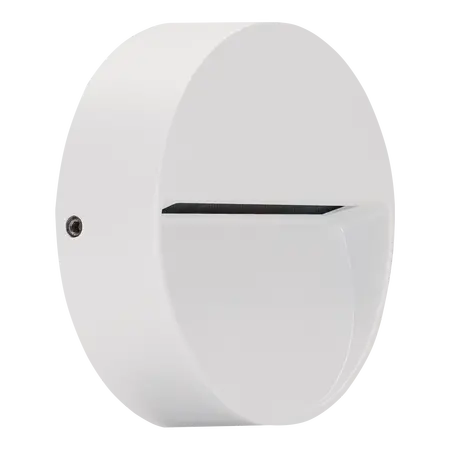

Zeke-Pro 5 Surface Mount Round LED Step Light 5W 240V White Domus
Domus Zeke-Pro 5 surface mount round LED step light, 5W, 240V, IP65, tri-colour, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Surface-Mount LED Step Light, Outdoor LED Pathway Light, LED Wall Light, Tri-Colour LED Steplight
Technical Specifications
- Input Voltage: 240V AC
- Power: 5W
- IP Rating: IP65
- Light Output: 305 lm at 3000K, 348 lm at 4000K, 365 lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Beam Angle: 120°
- LED Type: SMD
- Colour Rendering Index: CRI ≥90
- Dimmable: No
- Rated Lifespan: 50,000 hours
- Body Material: Cast aluminium
- Finish: Chromate-treated aluminium with polyester powder coating
- Mounting: Surface mounted
- Cable Entry: TPS cable gland
- Dimensions (H x L x W): 34mm x 105mm x 105mm
- Weight: 0.6 kg
Key Features
- Round, slimline surface-mounted design for steps, pathways and walls
- Tri-colour selectable output from warm white to cool white
- IP65-rated construction for outdoor applications
- Downward-directed illumination
- Durable cast-aluminium body with protective powder-coated finish
- Built-in LED light source
- Suitable where recessed mounting is not practical
Professional Installation Requirements
- Installation must be performed by a licensed electrician because this model operates from 240V AC. Install in accordance with the manufacturer's instructions, applicable wiring rules and the IP65 sealing requirements.
Applications
- Outdoor steps and stairways
- Low-level pathway lighting
- External wall lighting
- Planter boxes
- Front wall installations
- Locations where recessed mounting is not possible
Standards & Compliance
- AS/NZS 60598.1:2017 – general requirements and tests for luminaires
- AS/NZS 60598.2.1:2014 – particular requirements for fixed general-purpose luminaires
- AS/NZS 3000:2018 – electrical installation requirements applicable to connection and installation
Environmental Benefits
- Low 5W power consumption reduces energy use compared with higher-wattage conventional light sources
- LED technology provides a long rated lifespan of 50,000 hours, reducing replacement frequency and waste
- Cast aluminium construction and durable coating support extended product service life
- Aluminium components can be recycled at end of life
Warranty Information
Three-year replacement warranty for residential applications and 12-month replacement warranty for commercial applications, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
