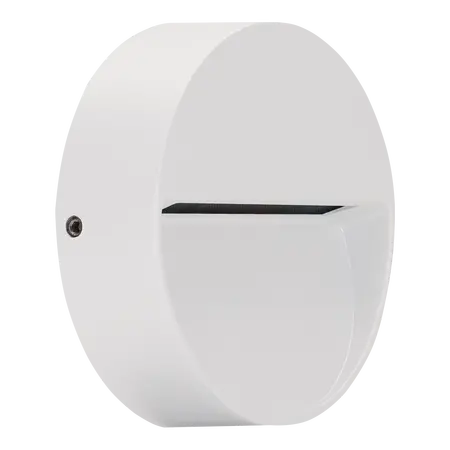

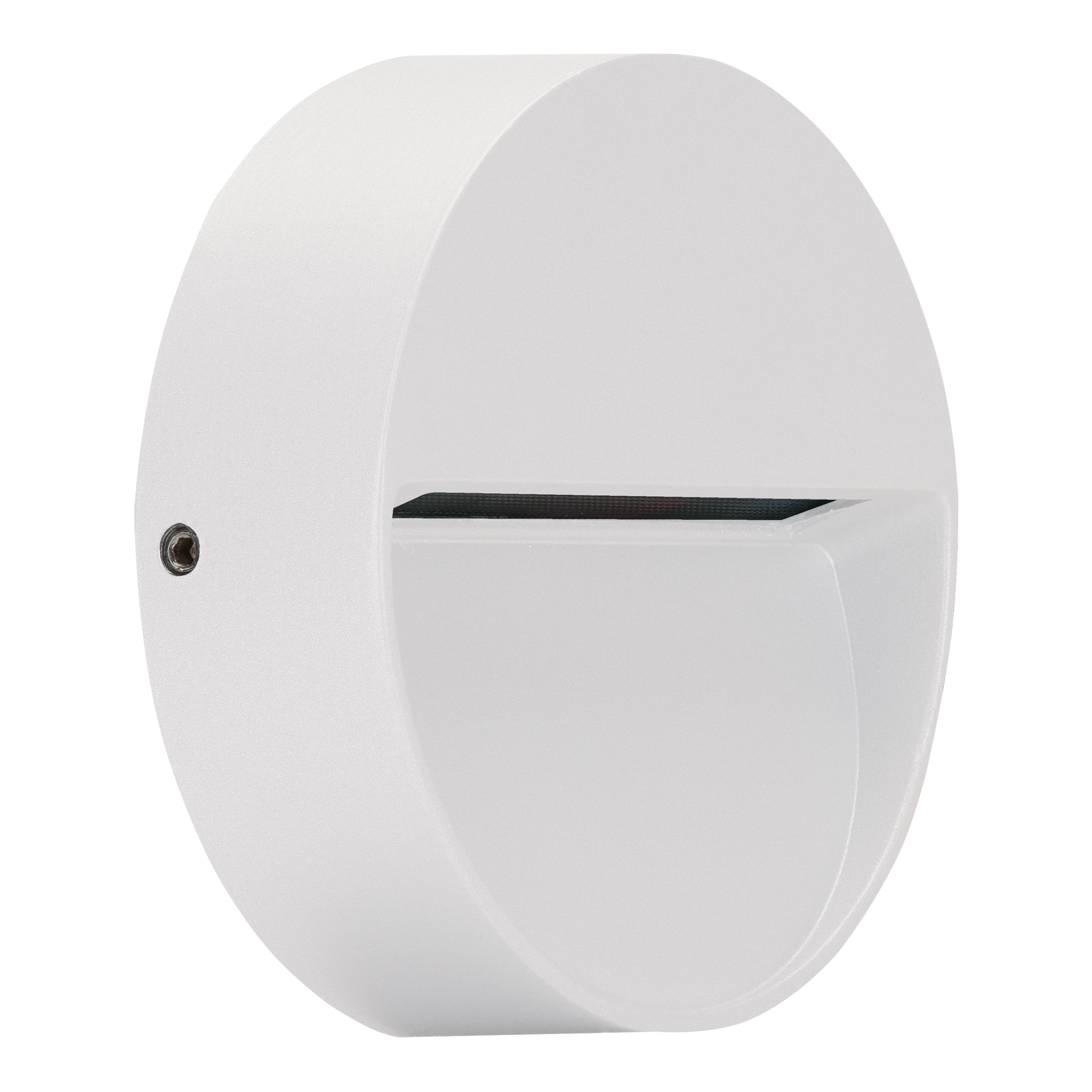

Zeke-Pro 5 Surface Mount Round LED Step Light 5W 24V White Domus
Domus Zeke-Pro 5 surface mount round LED step light, 5W, 24V, IP65, tri-colour, white. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Zeke-Pro 5 Round LED Steplight, Domus Surface-Mount Step Light, 24V DC LED Pathway Light
Technical Specifications
- Model: ZEKE-PRO-5-12V/24V-RND-WHT
- Variant ID: 10336
- Input Voltage: 24V DC
- Power: 5W
- Light Source: SMD LED
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Luminous Output: 305 lm at 3000K, 348 lm at 4000K, 365 lm at 5000K
- Beam Angle: 120°
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP65
- Dimming: Yes, when used with a dimmable driver
- LED Lifespan: 50,000 hours
- Driver Requirement: 12/24V DC constant-voltage LED driver; wire in parallel
- Construction: Slimline cast-aluminium body with powder-coated finish
- Finish Colour: White
- Dimensions (H x L x W): 34mm x 105mm x 105mm
- Weight: 0.35 kg
Key Features
- Round surface-mounted design for walls, steps and pathways
- Tri-colour switchable output with 3000K, 4000K and 5000K settings
- Downward illumination suitable for low-level pathway lighting
- IP65-rated construction for suitable outdoor applications
- Low-voltage 24V DC operation
- Requires a separate constant-voltage LED driver
- Dimmable with a compatible dimmable driver
- TPS cable gland for installation
- Cast-aluminium body with chromate-treated and polyester powder-coated finish
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Provide a suitable 24V DC constant-voltage LED driver, connect fittings in parallel, isolate the power supply before installation and follow the manufacturer's installation instructions.
Applications
- Outdoor steps and stairways
- Low-level pathway lighting
- Garden paths and planter boxes
- External wall lighting
- Front-wall installations using low-voltage wiring
- Locations where recessed mounting is not suitable
Standards & Compliance
- Applicable standard: AS/NZS 60598.1 for general requirements and tests for luminaires
- Applicable standard: AS/NZS 60598.2.23 for extra-low-voltage lighting systems for ELV light sources
- Installation should comply with AS/NZS 3000 wiring requirements
- Product-specific certification or conformity marking is not stated in the published Domus datasheet
Environmental Benefits
- LED technology provides lower energy consumption than comparable conventional step-light sources
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Aluminium construction is recyclable at end of service life
- Low-voltage 24V DC operation can support efficient, centralised lighting systems
Warranty Information
Domus states a three-year replacement warranty for the ZEKE-PRO-5. The Domus warranty policy requires installation by a licensed electrician and installation in accordance with the manufacturer's guidelines; the warranty statement may distinguish between residential and commercial applications.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
