Zeke-Pro 5 Surface Mount Square LED Step Light 5W 24V Black Domus

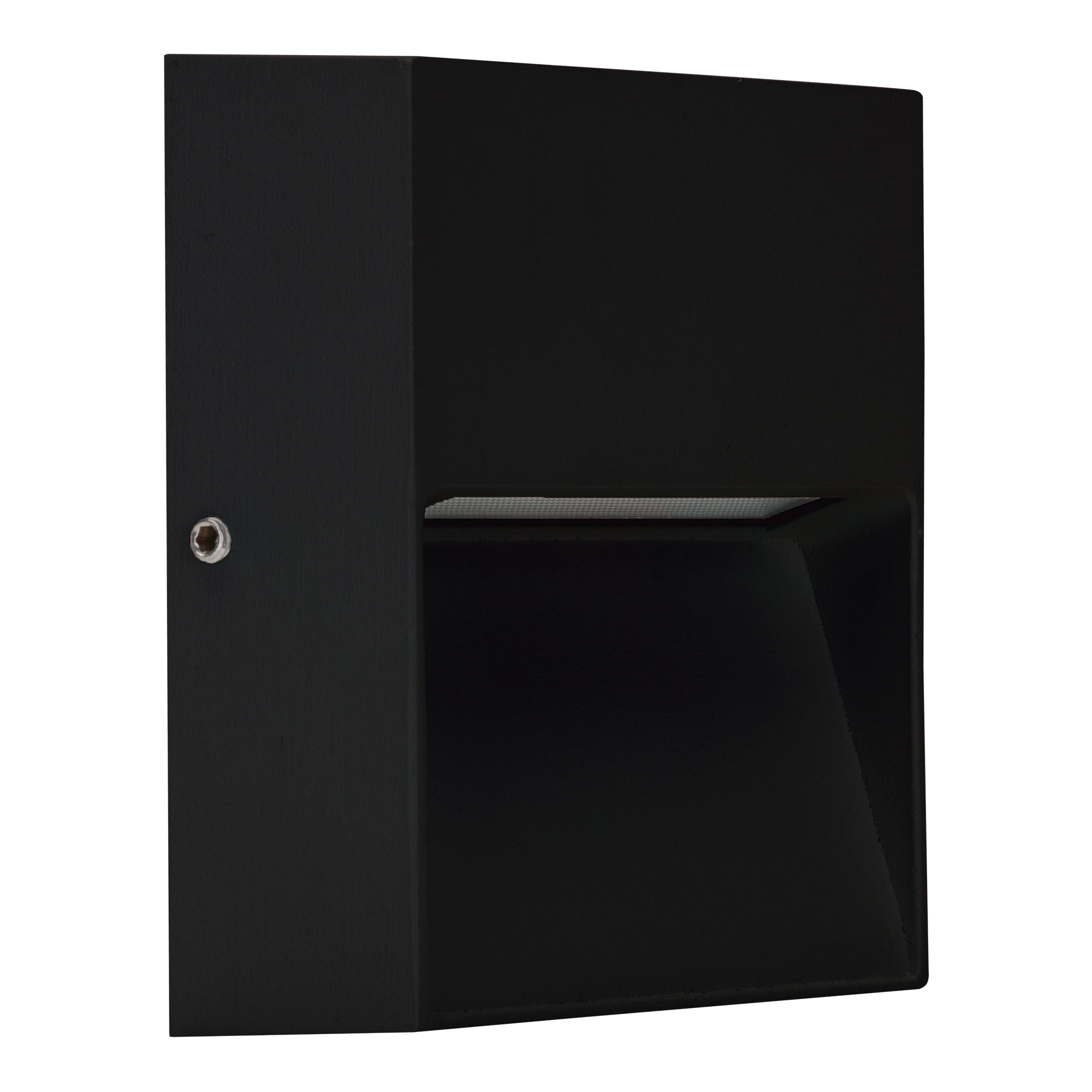

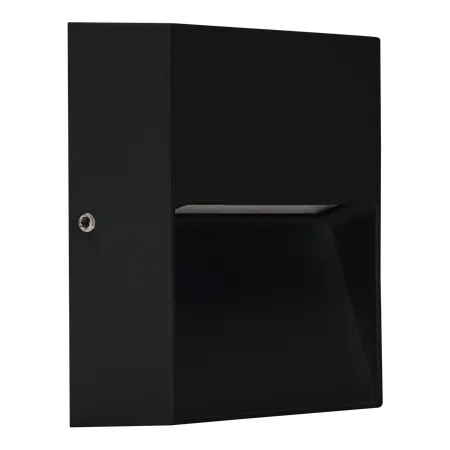

Domus Zeke-Pro 5 surface mount square LED step light, 5W, 24V, IP65, tri-colour, black. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Zeke-Pro 5 SQR LED Steplight, Surface-Mounted LED Wall Light, Outdoor LED Pathway Light
Technical Specifications
- Input Voltage: 12/24V DC; 24V DC selected variant
- Power: 5W
- Light Output: 305lm at 3000K; 348lm at 4000K; 365lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K selectable
- CRI: ≥90
- Beam Angle: 120°
- LED Type: SMD
- Dimming: Yes, when used with a dimmable constant-voltage driver
- Lifespan: 50,000 hours
- Ingress Protection: IP65
- Material: Cast aluminium with chromate treatment and polyester powder-coated finish
- Driver Requirement: 12/24V DC constant-voltage LED driver; wire fittings in parallel
- Dimensions (H x L x W): 34mm x 105mm x 105mm
- Weight: 0.6 kg
Key Features
- Square surface-mounted design for walls, steps, pathways and planter boxes
- Tri-colour switchable output with 3000K, 4000K and 5000K settings
- Downward illumination with a wide 120° beam angle
- IP65 protection for outdoor applications
- Slimline cast-aluminium body with durable black powder-coated finish
- Integrated 5W SMD LED light source
- TPS cable gland for installation
- Low-voltage 24V DC operation for systems using extra-low-voltage wiring
- Manufacturer data sheet specifies 105mm x 105mm x 34mm dimensions
Professional Installation Requirements
- Installation must be performed by a professional electrician. Use a suitable 12/24V DC constant-voltage LED driver, ensure correct polarity and wiring in parallel, and maintain the IP65 sealing requirements. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2025/09/ZEKE-PRO-5-12-24V-SQR-Installation-Manual-1.pdf))
Applications
- Outdoor steps and stairways
- Low-level pathway lighting
- External wall lighting
- Planter boxes
- Front wall installations
- Locations where recessed mounting is not suitable
Standards & Compliance
- AS/NZS 60598.1:2017 — applicable general safety and testing requirements for luminaires
- AS/NZS 3000:2018 — applicable electrical installation requirements for the low-voltage lighting circuit and driver
Environmental Benefits
- LED technology provides lower power consumption than comparable conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- Cast aluminium housing is durable and widely recyclable
- 24V DC operation supports efficient low-voltage lighting systems when paired with a suitable driver
Warranty Information
Three-year replacement warranty stated by Domus for the ZEKE-PRO-5 range. Domus’s current warranty schedule lists exterior LED steplights as 3-year replacement for residential use and 12-month replacement for commercial use, subject to the warranty terms and correct installation. ([domuslighting.com.au](https://www.domuslighting.com.au/product/zeke-pro-5/))
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; confirm current stock and lead time with the distributor.
