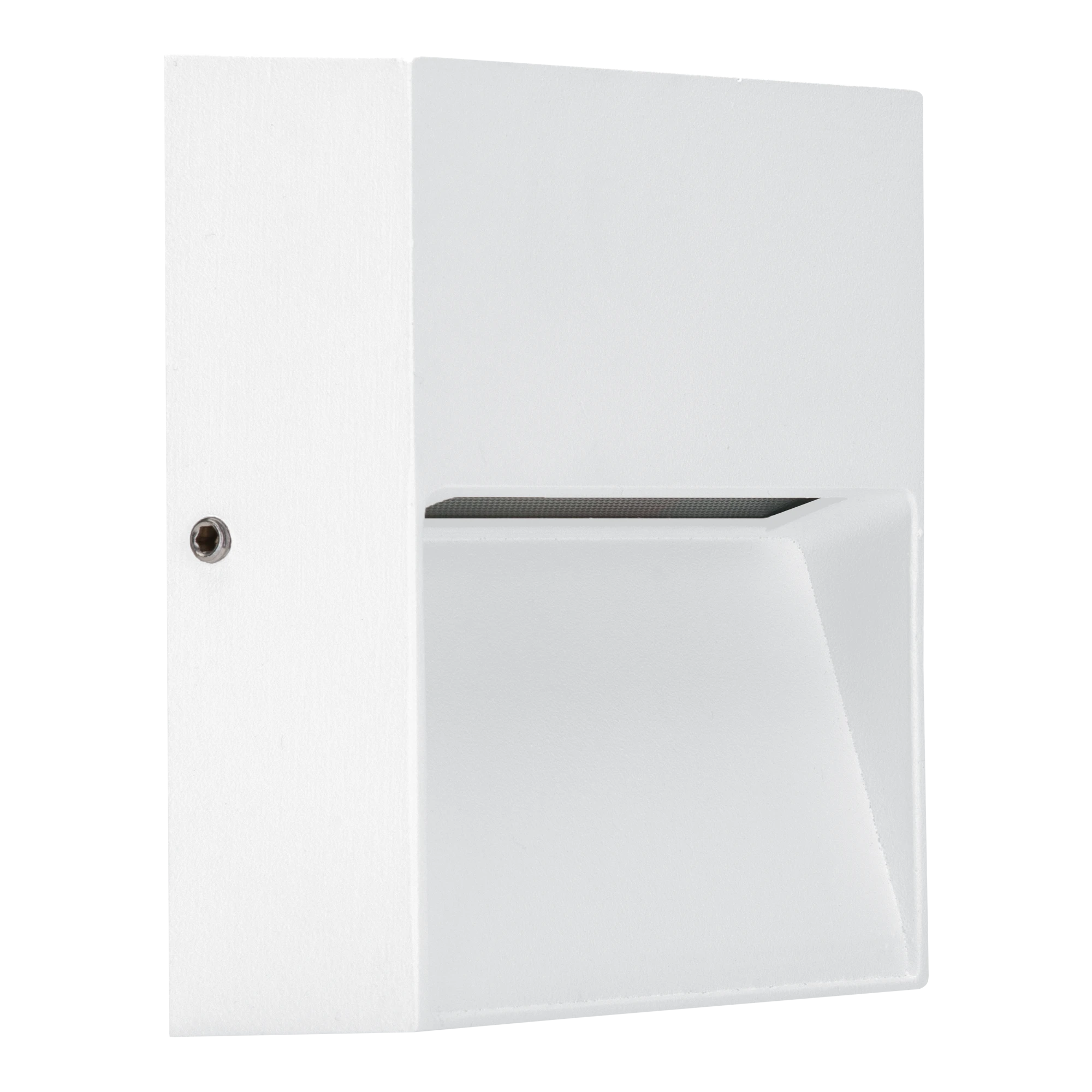

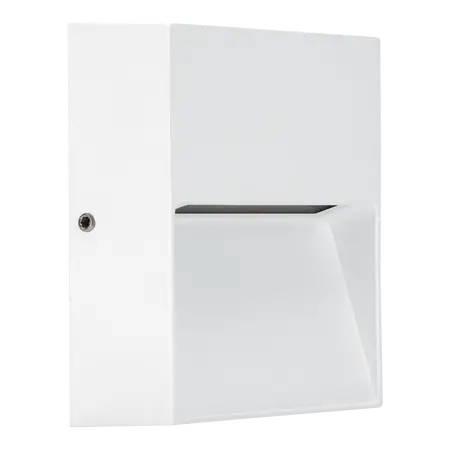

Zeke-Pro 5 Surface Mount Square LED Step Light 5W 24V White Domus
Domus Zeke-Pro 5 surface mount square LED step light, 5W, 24V, IP65, tri-colour, white. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Zeke-Pro 5 SQR LED Steplight, Surface-Mount LED Step Light, Exterior LED Wall Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 5W
- Light Output: 305 lm at 3000K, 348 lm at 4000K, 365 lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Colour Rendering Index: ≥90
- Beam Angle: 120°
- LED Type: SMD
- Ingress Protection: IP65
- Dimmable: Yes, when used with a dimmable constant-voltage driver
- Lifespan: 50,000 hours
- Driver Requirement: 12/24V DC constant-voltage LED driver; wire in parallel
- Finish: White powder-coated aluminium
- Dimensions (H x L x W): 34mm x 105mm x 105mm
- Weight: 0.3 kg
Key Features
- Square surface-mounted design for walls, steps and pathways
- Tri-colour switchable between warm white, neutral white and white
- IP65-rated construction for suitable outdoor applications
- Slimline cast-aluminium body with durable powder-coated finish
- Downward illumination for low-level pathway and step lighting
- High colour rendering with CRI ≥90
- Requires a separate 12/24V DC LED driver
Professional Installation Requirements
- Installation must be completed by a licensed electrician using a suitable 12/24V DC constant-voltage LED driver. Install in accordance with the manufacturer's instructions and AS/NZS 3000 requirements; incorrect installation may affect warranty coverage.
Applications
- External steps and stairways
- Low-level pathway lighting
- Front walls and entrance areas
- Planter boxes and garden features
- Outdoor residential and commercial wall lighting
Standards & Compliance
- AS/NZS 3000:2018 Electrical installations, including selection and installation of electrical equipment
- AS/NZS 60598.1:2025 Luminaires, Part 1: General requirements and tests
Environmental Benefits
- LED technology provides lower power consumption than traditional halogen step lighting
- 50,000-hour rated lifespan can reduce replacement frequency and waste
- Aluminium housing is recyclable at end of product life
- Low-voltage 24V DC operation supports safer, efficient extra-low-voltage lighting installations
Warranty Information
Three-year replacement warranty for residential exterior steplight applications. Domus Lighting's warranty policy lists a 12-month replacement warranty for commercial exterior steplight applications. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
