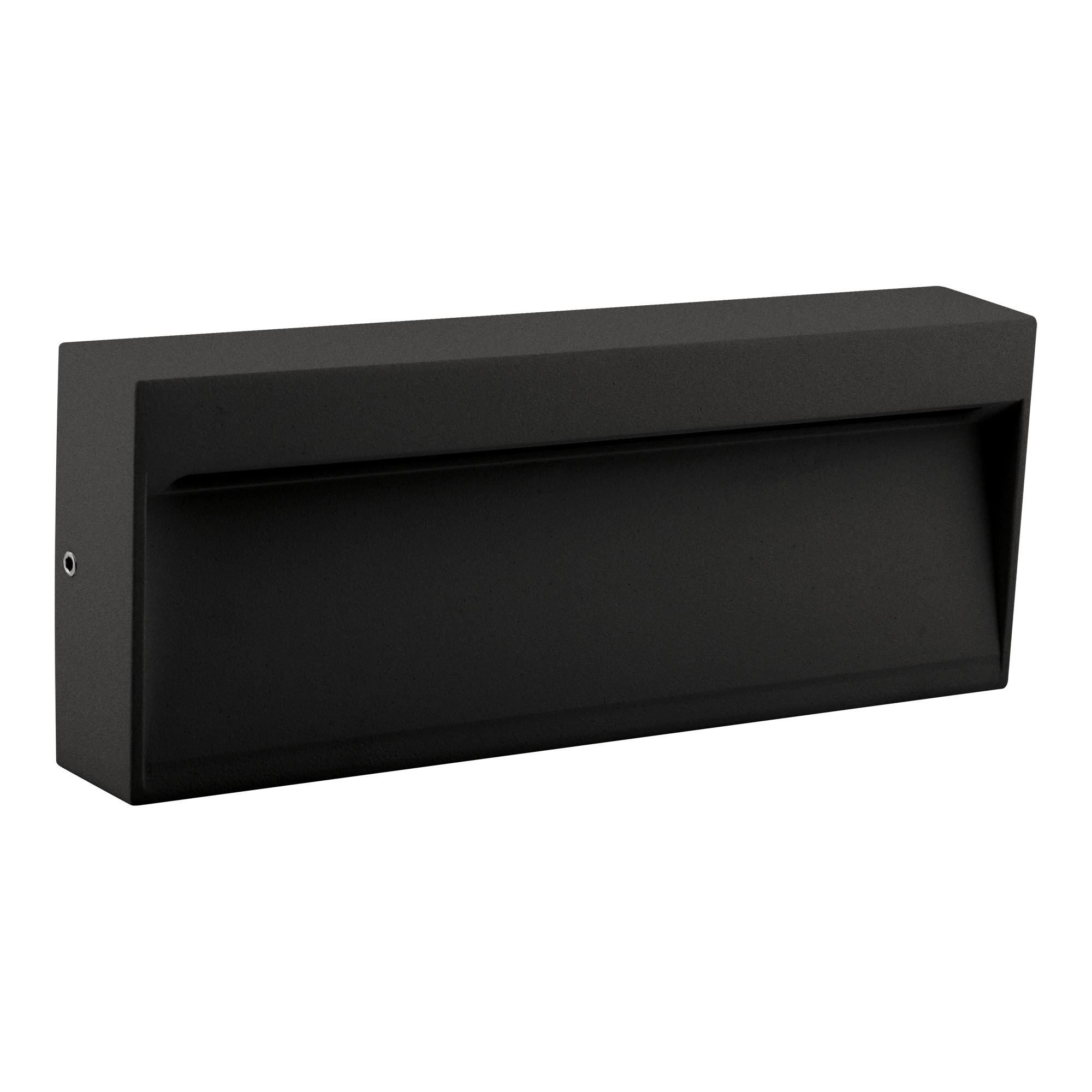

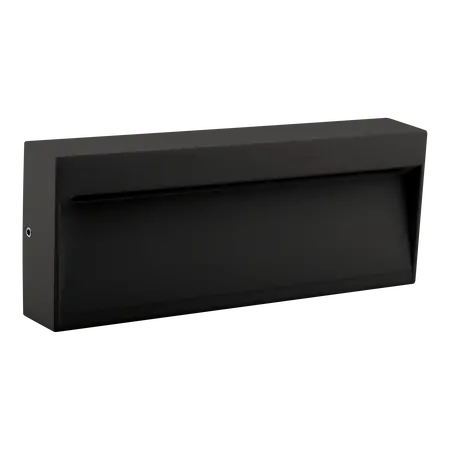

Zeke-Pro 8 Surface Mount LED Step Light 8W 24V Black Domus
Domus Zeke-Pro 8 surface mount rectangular LED step light, 8W, 24V, IP65, tri-colour, black. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Zeke-Pro 8 LED Steplight, Domus Zeke-Pro 8 Wall Light, 24V LED Pathway Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 8W
- Light Output: 421lm at 3000K, 462lm at 4000K, 495lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K selectable
- CRI: ≥90
- Beam Angle: 120°
- LED Type: SMD
- Ingress Protection: IP65
- Dimming: Yes, when used with a compatible dimmable driver
- LED Lifespan: 50,000 hours
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Construction: Cast-aluminium body with polyester powder-coated black finish
- Cable Entry: TPS cable gland
- Dimensions (H x L x W): 34mm x 200mm x 80mm
- Weight: 0.45 kg
Key Features
- Surface-mount rectangular design for walls, steps and pathways
- Tri-colour switchable output with 3000K, 4000K and 5000K settings
- Downward illumination for low-level external lighting
- IP65-rated construction for outdoor applications
- Low-voltage 24V DC operation
- Aluminium body with protective chromate treatment and powder-coated finish
- Compatible with dimmable constant-voltage drivers
- Three-year replacement warranty
Professional Installation Requirements
- Installation of the 24V DC LED driver and fixed wiring should be carried out by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Use only a compatible 12/24V DC constant-voltage driver.
Applications
- External steps and stairways
- Low-level pathway lighting
- Front walls and entryways
- Planter boxes and garden features
- Outdoor residential and commercial wall lighting
Standards & Compliance
- AS/NZS 60598.1: Applicable general safety requirements for luminaires; a product-specific compliance declaration was not located.
- AS/NZS 60598.2.23:2021: Applicable requirements for extra-low-voltage lighting systems; product-specific compliance declaration was not located.
Environmental Benefits
- LED technology provides lower operating energy consumption than many conventional step-light sources.
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste.
- Cast aluminium is recyclable at end of service life.
- Separate constant-voltage driver arrangement may allow driver replacement without replacing the complete luminaire.
Warranty Information
Three-year replacement warranty for residential applications, subject to Domus Lighting warranty conditions. Domus requires installation by a licensed electrician and installation in accordance with the product instructions. Commercial warranty duration for exterior steplights is 12 months replacement. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2025/09/ZEKE-PRO-8-12-24V-Data-Sheet.pdf))
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
