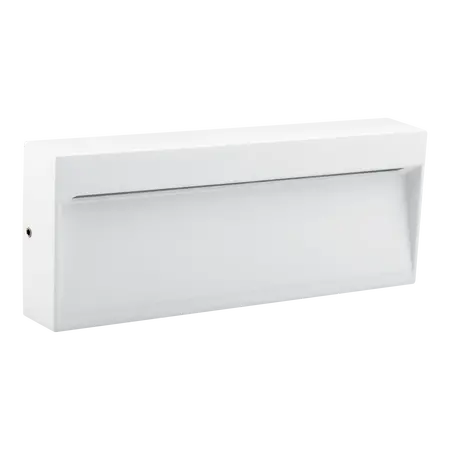

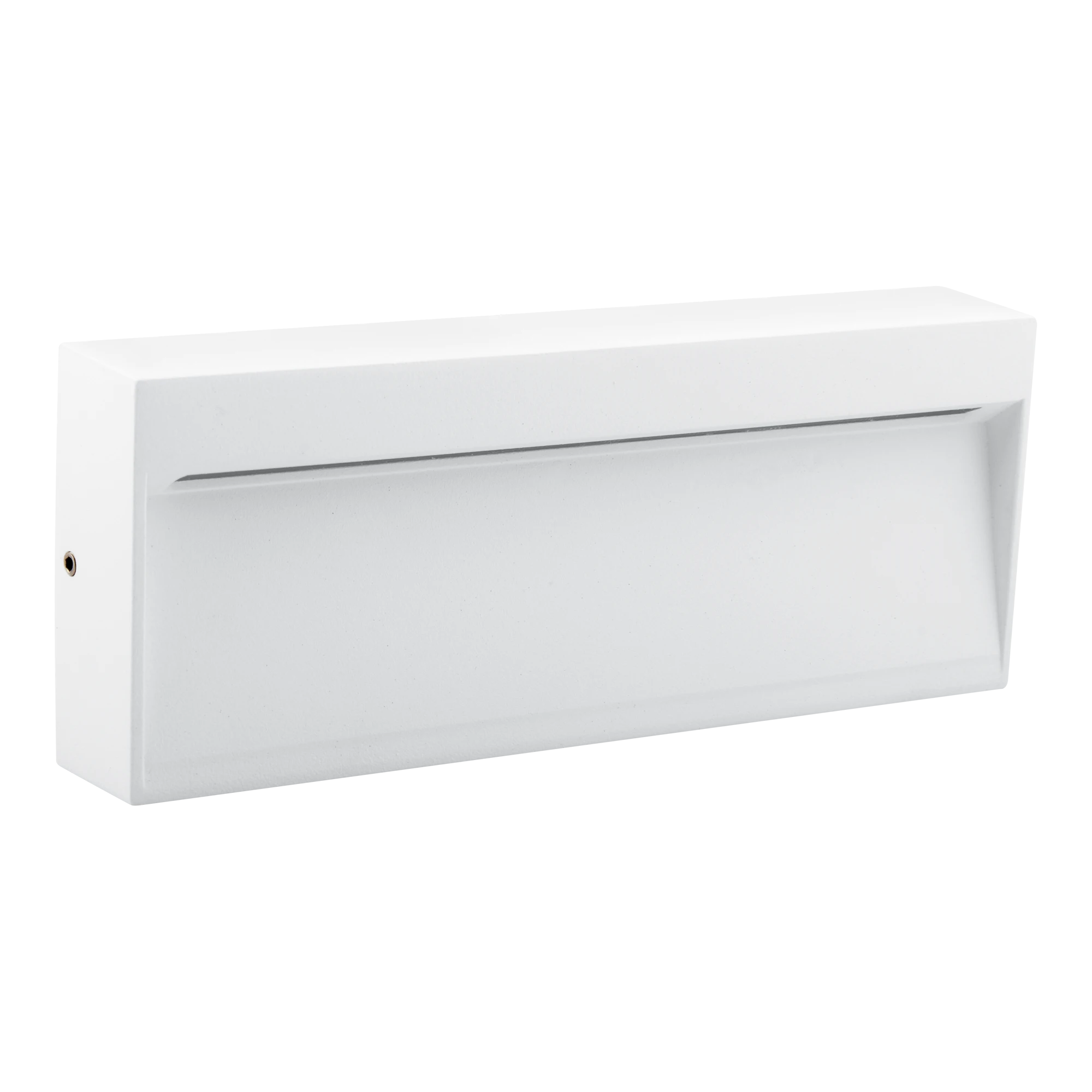

Zeke-Pro 8 Surface Mount LED Step Light 8W 24V White Domus
Domus Zeke-Pro 8 surface mount rectangular LED step light, 8W, 24V, IP65, tri-colour, white. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: ZEKE-PRO-8, Domus Zeke-Pro 8 LED Steplight, Surface-Mount LED Wall Light, Outdoor LED Pathway Light
Technical Specifications
- Input Voltage: 24V DC
- Power: 8W
- Light Output: 421 lm at 3000K, 462 lm at 4000K, 495 lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Beam Angle: 120°
- LED Type: SMD
- Colour Rendering Index: CRI ≥90
- Dimmability: Yes, when used with a dimmable constant-voltage driver
- Lifespan: 50,000 hours
- IP Rating: IP65
- Material: Cast aluminium body with chromate treatment and polyester powder-coated finish
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Finish: White
- Mounting: Surface-mounted with TPS cable gland
- Dimensions (H x L x W): 80mm x 200mm x 34mm
- Weight: 0.8 kg
Key Features
- Tri-colour CCT switching between warm, neutral and cool white
- IP65-rated construction for outdoor wall, pathway and step applications
- Slimline rectangular surface-mounted design
- Downward illumination with a wide 120° beam
- Low-voltage 24V DC operation
- Requires a separately supplied 24V constant-voltage LED driver
- Durable cast-aluminium body with powder-coated finish
- Built-in LED with long operating life
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver, wire connected luminaires in parallel, and complete the installation in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
- Outdoor steps and stair risers
- Low-level pathway and walkway lighting
- External wall lighting
- Planter boxes and garden features
- Front wall and entry lighting
- Outdoor areas where recessed mounting is not suitable
Standards & Compliance
- AS/NZS 60598.1 for general luminaire safety requirements and testing
- AS/NZS 3000 for selection and installation of electrical equipment
Environmental Benefits
- 8W LED operation can reduce energy consumption compared with higher-wattage conventional lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and waste
- Cast aluminium construction is recyclable at end of product life
- 24V DC operation supports low-voltage outdoor lighting installations
Warranty Information
Three-year replacement warranty for residential use. Domus Lighting's published warranty policy lists a 12-month replacement warranty for commercial exterior steplights. Warranty coverage is subject to Domus terms and installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
