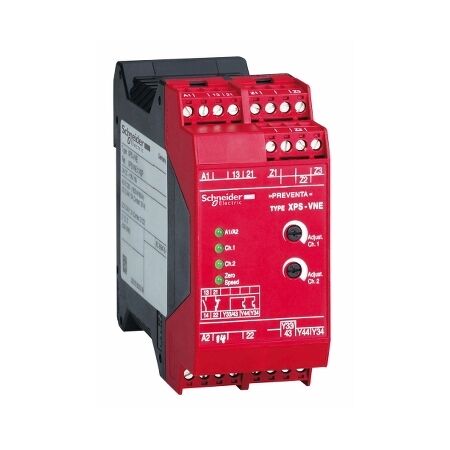

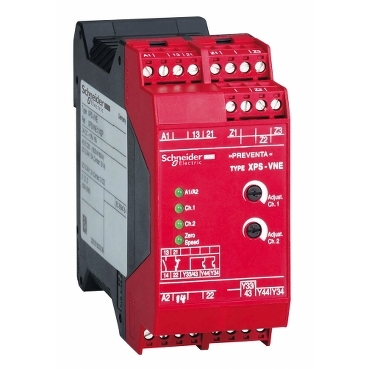

Zero Speed Detection Module | 24V DC Control | DIN Rail Mountable | LED Indicators | @Pack of 1 | by Clipsal
The Zero Speed Detection Module operates at 24V DC, providing enhanced safety for industrial automation systems. With a motor power supply capability of up to 230V AC and LED status indicators, this module is perfect for motor control panels and safety circuits. Its compact DIN rail mountable design ensures easy installation, making it an essential component for manufacturing plants and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Zero Speed Detection Module | 24V DC Control | DIN Rail Mountable | LED Indicators | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXPSVNE3742P
Alternatively Known As: Zero Speed Detection Module, XPSVN Module, Motor Speed Detector, Safety Relay Module, SCHXPSVNE3742P
Technical Specifications
- Control Voltage: 24V DC
- Motor Power Supply: Up to 230V AC, 60Hz
- Mounting: DIN rail
- Status Indication: LED indicators
- Operating Temperature: -25°C to +55°C
- Enclosure Protection: IP20
- Response Time: < 100 ms
- Dimensions (H x L x W): 99mm x 114.5mm x 22.5mm
- Weight: 0.25 kg
Key Features
- Zero speed detection for enhanced safety
- Operates at 24V DC control voltage
- Suitable for motor power supply up to 230V AC, 60Hz
- DIN rail mountable for easy installation
- LED status indicators for operational feedback
- Compact modular design
Professional Installation Requirements
- Installation must be performed by a qualified electrician or automation technician in accordance with local electrical standards.
Applications
- Industrial automation systems
- Motor control panels
- Safety circuits for machinery
- Conveyor systems
- Manufacturing plants
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances operational safety, reducing risk of accidents and environmental hazards.
- Supports energy-efficient motor management by ensuring motors are only active when required.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Mod DETECT.V=0 24VDC Zero Speed Detection Module (SCHXPSVNE3742P) is available for immediate purchase. Ideal for industrial automation and safety-critical motor control applications.
