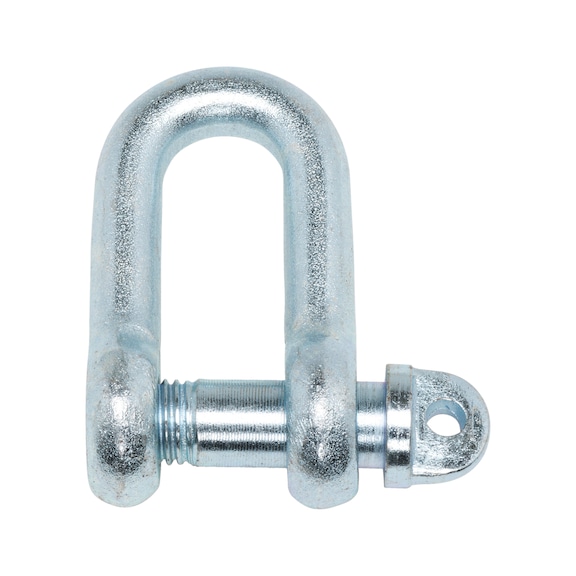

Zinc Plated Shackle SHKL A SZ016 | 160 kg Load Capacity | Curved Design | @Pack of 25 | by Wurth
The Zinc Plated Shackle SHKL A SZ016 is designed for towing and securing applications, featuring a robust 160 kg load capacity and a curved design suitable for sizes M5 to M12. Made from durable zinc-plated steel, this shackle is perfect for connecting motor vehicles and lengthening ropes and chains, ensuring reliability in automotive and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Zinc Plated Shackle SHKL A SZ016 | 160 kg Load Capacity | Curved Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 523016
Alternatively Known As: Towing Shackle, Zinc Plated Shackle, Steel Shackle, Curved Shackle
Technical Specifications
- Load capacity: 160 kg
- Thread type x shackle bolt diameter: M6 mm
- Shackle internal width (b1): 8 mm
- Shackle external width (b2): 18 mm
- Shackle diameter (d1): 6 mm
- Shackle-bolt diameter (d2): 6 mm
- Internal shackle height (centre bolt) (h1): 21 mm
- Design: Curved
- Material: Steel
- Surface: Zinc plated
- Form: A
- Nominal size: 0.16
- RoHS-compliant: Yes
- Dimensions (H x L x W): 21mm x 40mm x 18mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel construction
- Curved design for sizes M5 to M12
- Suitable for towing and connection purposes
Professional Installation Requirements
- No professional installation required; suitable for manual use in towing and securing applications.
Applications
- Connection element for towing motor vehicles
- Lengthening ropes and chains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Shackle SHKL A SZ016 BT ZN PIN60 25 PCS is available now for immediate purchase. Ideal for towing and securing applications in automotive and industrial settings.
