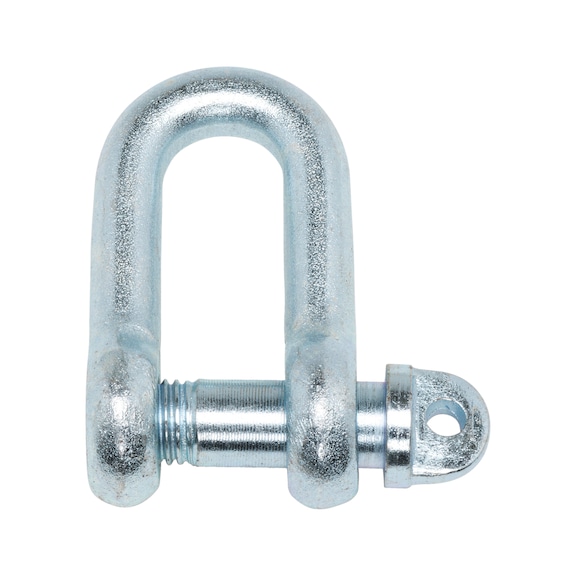

Zinc-Plated Shackle SHKL A SZ06 | 630 kg Load Capacity | Curved Design | @Pack of 5 | by Wurth
The Zinc-Plated Shackle SHKL A SZ06 is designed for reliable towing and securing applications, featuring a robust 630 kg load capacity and a corrosion-resistant zinc-plated steel construction. Ideal for automotive and industrial use, this curved design shackle ensures safe connections for towing motor vehicles and lengthening ropes and chains.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Zinc-Plated Shackle SHKL A SZ06 | 630 kg Load Capacity | Curved Design | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 52306
Alternatively Known As: Towing Shackle, Zinc-Plated Shackle, Steel Shackle, Curved Shackle
Technical Specifications
- Load capacity: 630 kg
- Thread type x shackle bolt diameter: M12 mm
- Shackle internal width (b1): 17 mm
- Shackle external width (b2): 37 mm
- Shackle diameter (d1): 12 mm
- Shackle-bolt diameter (d2): 12 mm
- Internal shackle height (centre bolt) (h1): 42 mm
- Design: Curved
- Material: Steel
- Surface: Zinc plated
- Form: A
- Nominal size: 0.6
- RoHS-compliant: Yes
- Dimensions (H x L x W): 42mm x 60mm x 37mm
- Weight: 0.1 kg
Key Features
- Zinc-plated steel for corrosion resistance
- Curved design for sizes M5 to M12
- Forged design for sizes M16 to M48
- Hot-dip galvanized from M48 size
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper load handling and safety.
Applications
- Connection element for towing motor vehicles
- Lengthening ropes and chains
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Shackle SHKL A SZ06 BT ZN PIN120 5 PCS is available for immediate purchase, ideal for towing and securing applications in automotive and industrial settings.
