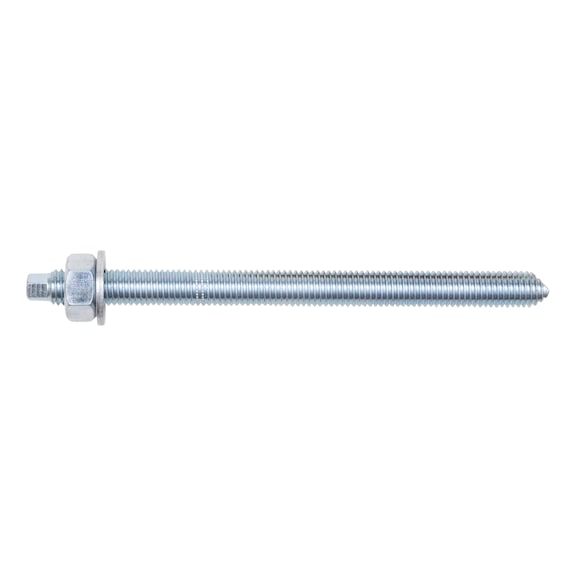

Zinc Plated Steel Anchor Rod M12x135 | Corrosion Resistant | Compatible with W-VD & WIT Systems | @Pack of 10 | by Wurth
Zinc Plated Steel Anchor Rod M12x135 is designed for reliable concrete anchoring, featuring corrosion-resistant zinc plating and compatibility with W-VD and WIT injection systems. Ideal for professional installation, this anchor rod ensures safety and compliance with multiple ETA certifications, making it perfect for construction and renovation projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type description: W-VD-A/S 5.8
- Metric anchor diameter: M12
- Property class: 5.8
- Attachment height (t fix): 10 mm
- Anchor length (l): 135 mm
- Effective anchoring depth (h ef): 110 mm
- Nominal drill-bit diameter cartridge system (d 0): 14 mm
- Nominal drill-bit diameter injection system (d 0): 14 mm
- Drill hole depth (h 0): 110 mm
- Material: Steel
- Surface: Zinc plated
- Approvals: ETA-06/0074, ETA-12/0164, ETA-12/0569, ETA-17/0127, ETA-19/0542, ETA-20/0647, ETA-20/1038, ETA-21/0168
- Dimensions (H x L x W): 135mm x 135mm x 12mm
- Weight: 0.3 kg
Key Features
- Zinc-plated steel construction for corrosion resistance
- Anchor rod with point angle and hexagon socket for rotation-impact insertion
- Compatible with W-VD and WIT injection systems
- Approved under multiple ETA certifications for reliability and safety
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with injection and bonded anchor systems to ensure compliance with ETA approvals and safety standards.
Applications
- Concrete anchoring with W-VD bonded anchor capsule systems
- Use with WIT injection systems in concrete
- Suitable for compound anchor cartridge systems
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing replacement waste
Warranty Information
Warranty subject to Wurth standard terms and conditions; covers manufacturing defects.
Available Now
The Wurth W VD A S Zinc Plated Steel Anchor Rod M12x135 is available for immediate purchase, ideal for concrete anchoring applications using bonded capsule and injection systems.
