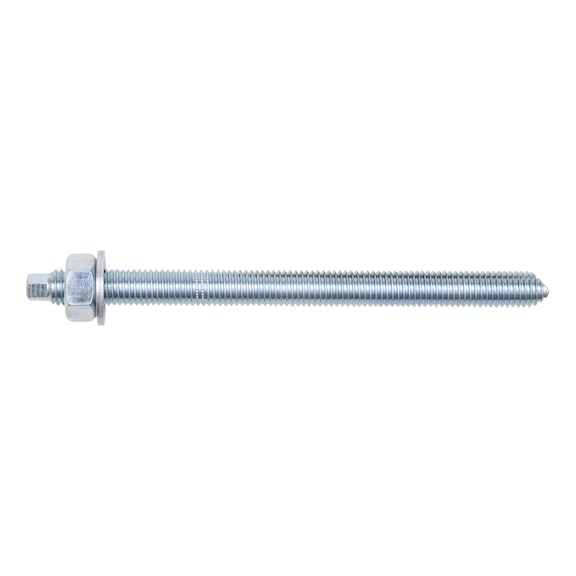

Zinc Plated Steel Anchor Rod M16 | 155mm Attachment Height | Compatible with W-VD & WIT Systems | @Pack of 10 | by Wurth
Zinc Plated Steel Anchor Rod M16 is designed for reliable concrete anchoring, featuring a 155mm attachment height and compatibility with W-VD and WIT systems. Built for construction professionals, this anchor rod ensures strong performance with multiple ETA approvals, making it ideal for both structural and non-structural fastening applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Zinc Plated Steel Anchor Rod M16 | 155mm Attachment Height | Compatible with W-VD & WIT Systems | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5915116300
Alternatively Known As: Zinc Plated Anchor Rod M16, W-VD Anchor Rod, Injection System Anchor Rod, Bonded Anchor Rod
Technical Specifications
- Type description: W-VD-A/S 5.8
- Metric anchor diameter: M16
- Property class: 5.8
- Attachment height (t fix): 155 mm
- Anchor length (l): 300 mm
- Effective anchoring depth (h ef): 125 mm
- Nominal drill-bit diameter cartridge system (d 0): 18 mm
- Nominal drill-bit diameter injection system (d 0): 18 mm
- Drill hole depth (h 0): 125 mm
- Material: Steel
- Surface: Zinc plated
- Approvals: ETA-06/0074, ETA-09/0040, ETA-12/0164, ETA-05/0034, ETA-12/0569, ETA-17/0127, ETA-19/0543, ETA-21/0168
- Dimensions (H x L x W): 300mm x 300mm x 16mm
- Weight: 1.2 kg
Key Features
- Zinc-plated steel for corrosion resistance
- Anchor rod with point angle and hexagon socket enabling rotation-impact insertion
- Compatible with W-VD compound anchor cartridge system and WIT injection systems
- Multiple ETA approvals ensuring compliance and reliability
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with bonded anchor and injection systems to ensure compliance with structural and safety standards.
Applications
- Concrete anchoring with W-VD bonded anchor capsule systems
- Use with WIT injection systems in concrete
- Suitable for structural and non-structural fastening in construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides long-lasting corrosion protection, reducing the need for frequent replacements and waste.
Warranty Information
Warranty as per Wurth standard terms and conditions; typically covers manufacturing defects.
Available Now
The Wurth W VD A S Zinc Plated Steel Anchor Rod M16x300 is available for immediate purchase, ideal for concrete anchoring applications in construction and structural projects.
