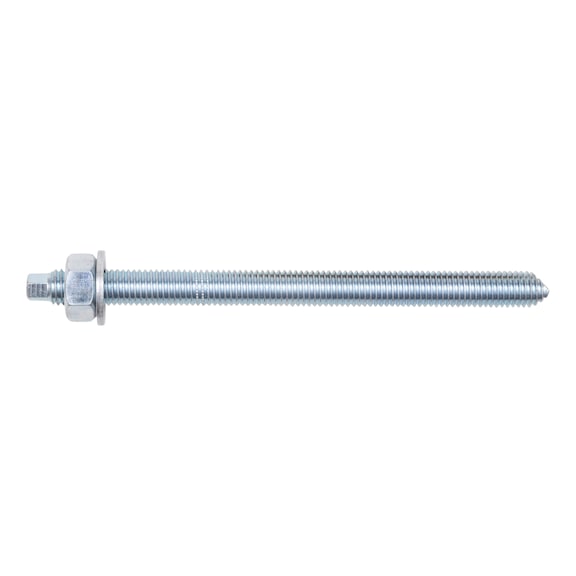

Zinc Plated Steel Anchor Rod M16 | 45mm Attachment Height | Compatible with W-VD & WIT Systems | @Pack of 10 | by Wurth
Zinc Plated Steel Anchor Rod M16 is designed for reliable concrete anchoring, featuring a 45mm attachment height and compatibility with W-VD and WIT injection systems. Built for professional use, this anchor rod ensures strong performance and durability, backed by multiple ETA approvals for safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type description: W-VD-A/S 5.8
- Metric anchor diameter: M16
- Property class: 5.8
- Attachment height (t fix): 45 mm
- Anchor length (l): 190 mm
- Effective anchoring depth (h ef): 125 mm
- Nominal drill-bit diameter cartridge system (d 0): 18 mm
- Nominal drill-bit diameter injection system (d 0): 18 mm
- Drill hole depth (h 0): 125 mm
- Material: Steel
- Surface: Zinc plated
- Approvals: ETA-06/0074, ETA-09/0040, ETA-12/0164, ETA-05/0034, ETA-12/0569, ETA-17/0127, ETA-19/0543, ETA-21/0168
- Dimensions (H x L x W): 190mm x 190mm x 16mm
- Weight: 0.5 kg
Key Features
- Zinc-plated steel construction for corrosion resistance
- Anchor rod with point angle and hexagon socket for rotation-impact insertion
- Compatible with W-VD and WIT injection systems
- Covered by multiple ETA approvals ensuring reliability and performance
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with concrete anchoring and injection systems to ensure compliance with safety and performance standards.
Applications
- Concrete anchoring with W-VD bonded anchor capsule systems
- Use with WIT injection systems in concrete
- Suitable for compound anchor cartridge systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth W VD A S Zinc Plated Steel Anchor Rod M16x190 is available for immediate purchase, ideal for concrete anchoring applications using bonded anchor capsule and injection systems.
