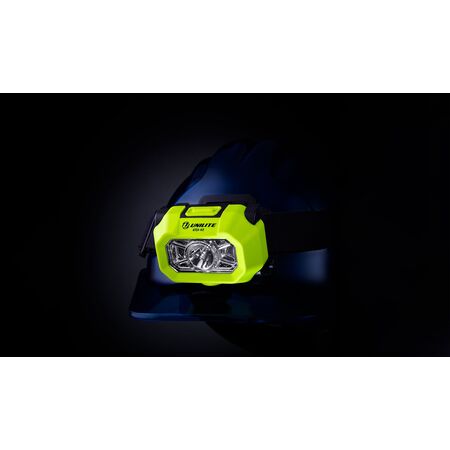

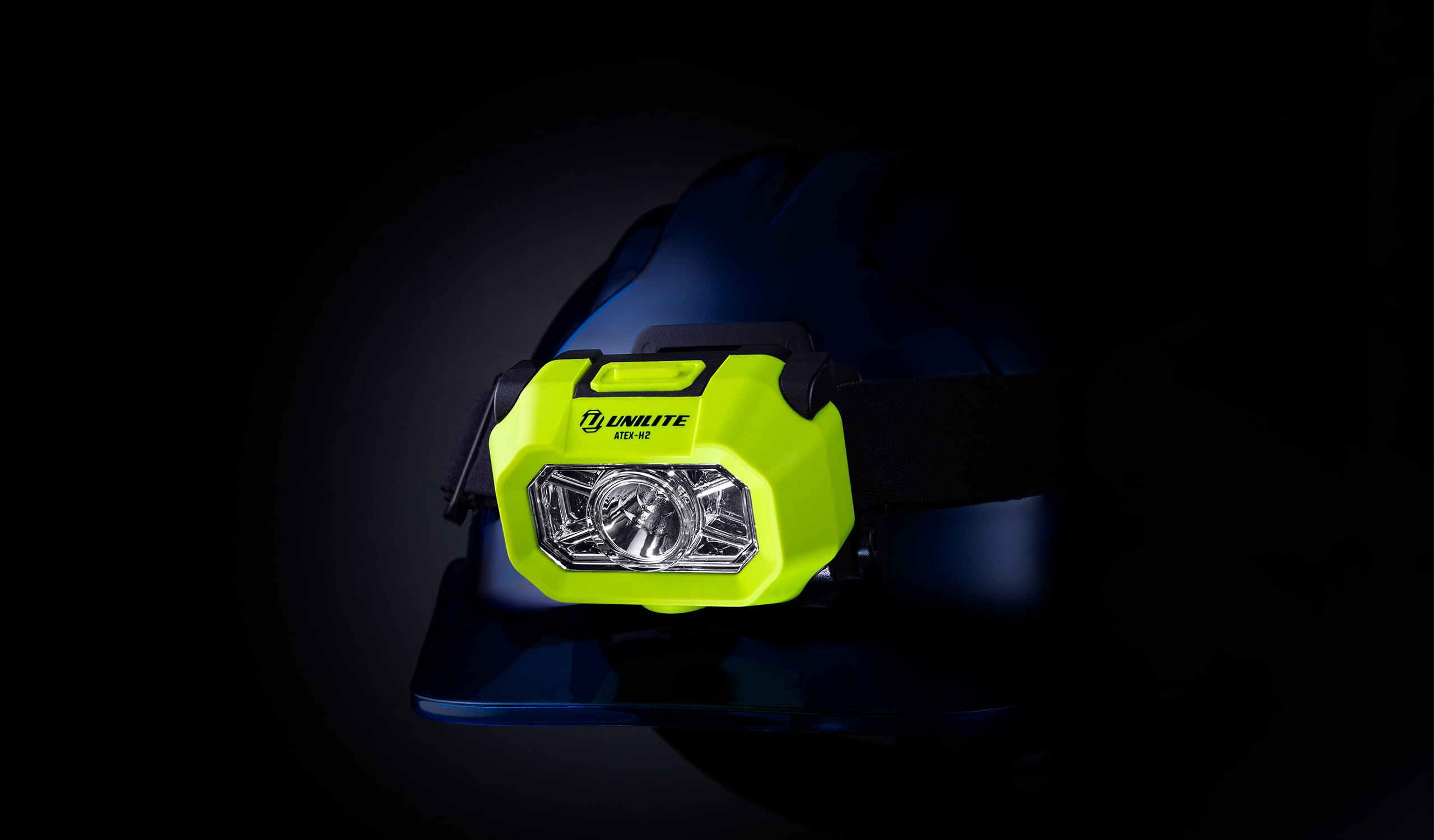

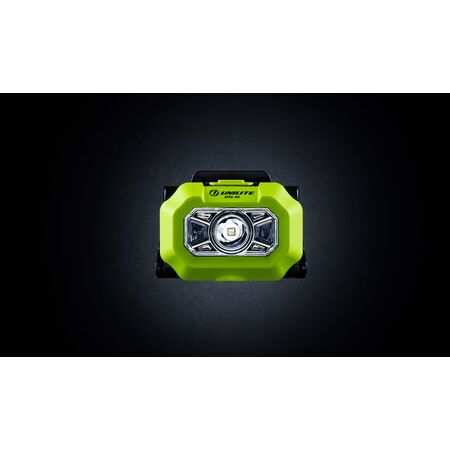

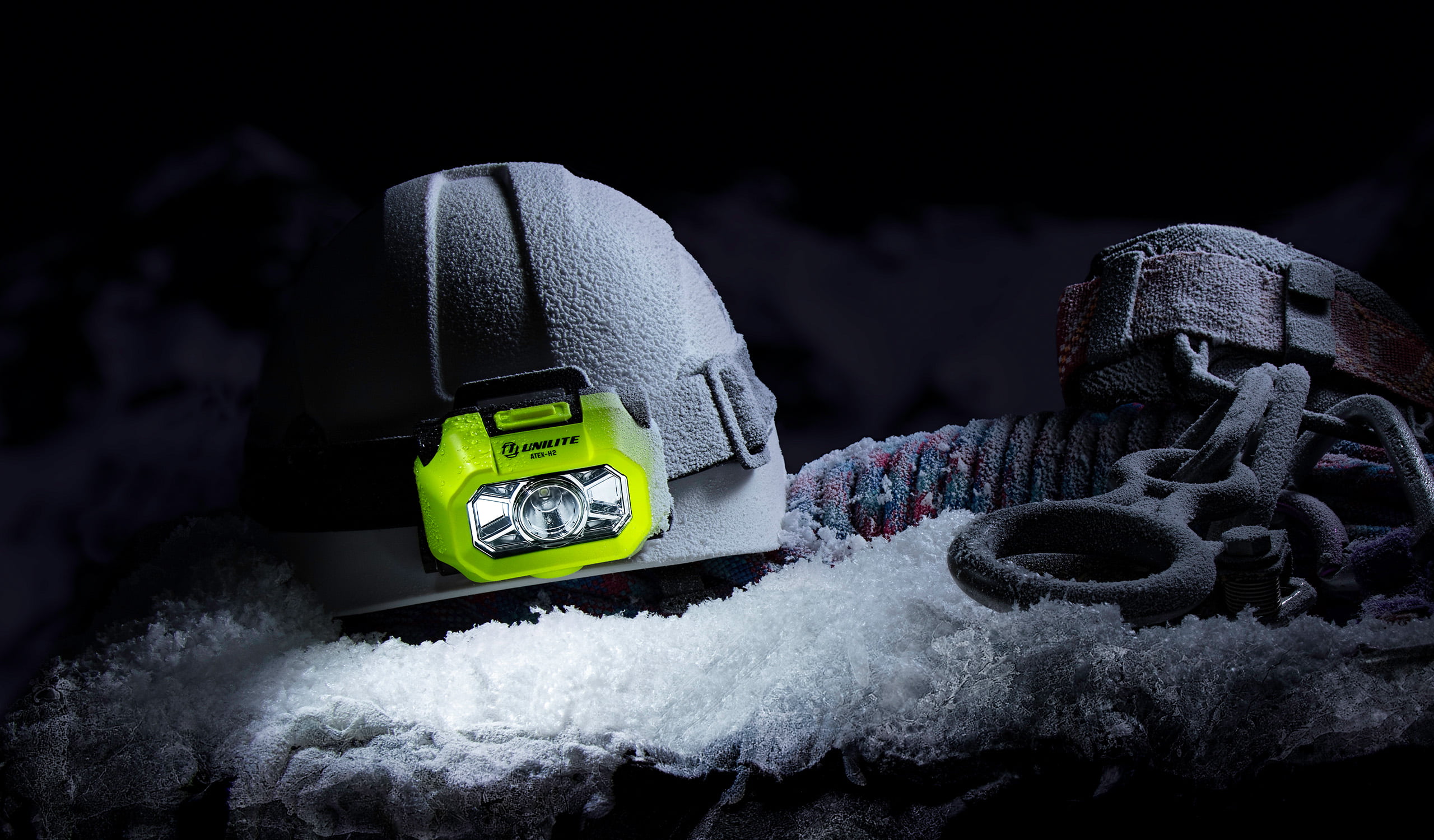

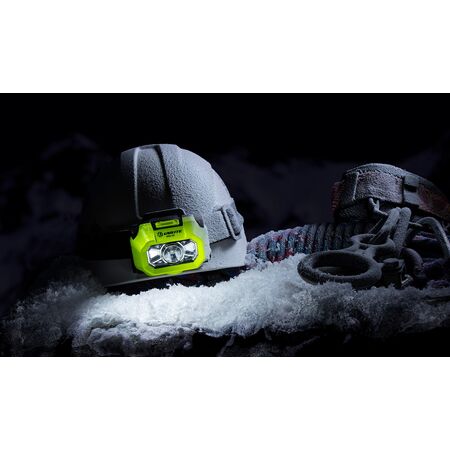

Zone 0 ATEX Head Torch | 225 Lumens High | IP67 Rated | Intrinsically Safe | by Unilite

BRAND: Aspen Pumps
SKU: ATEX-H2
$161.10 List price: $194.90
+ −
30 Days Return Delivery Options
The Zone 0 ATEX Head Torch delivers powerful 225 lumens on high and 110 lumens on low, making it perfect for hazardous environments. With a robust IP67 rating, it’s dust-tight and submersible to 1m, ensuring reliability in mining, oil and gas, and chemical plants. Designed for safety, it features a gas release valve and a locking battery compartment, making it an essential tool for industrial inspections.

Product Name/Title: Zone 0 ATEX Head Torch | 225 Lumens High | IP67 Rated | Intrinsically Safe | by Unilite

Brand: Unilite

SKU: ATEX-H2

Alternatively Known As: ATEX Headlamp, Intrinsically Safe Head Torch, Hazardous Area Headlamp, Zone 0 LED Torch

Technical Specifications
  • Lumens: 225 (High), 110 (Low)
  • Runtime: 5 hours (High), 12 hours (Low)
  • Beam Distance: 115 meters (High), 79 meters (Low)
  • IP Rating: IP67 (dust tight and water submersible to 1m)
  • Power Source: 1.5V Alkaline AAA battery
  • Housing Material: ABS and rubber
  • Weight: 128 grams
  • Dimensions (H x L x W): 49mm x 75mm x 37mm
  • Weight: 0.128 kg
Key Features
  • Intrinsically safe LED head torch rated for Zone 0 and UL Class 1 Div 1 hazardous areas
  • Gas release valve and safety locking battery compartment for enhanced safety
  • Strong ABS and rubber housing for robust protection
  • High IP67 rating for dust and water resistance (submersible to 1m)
  • Two light modes: Low (110 lumens, 12 hours runtime) and High (225 lumens, 5 hours runtime)
  • Beam distance up to 115 meters
Professional Installation Requirements
  • No professional installation required; however, users should follow safety guidelines for use in hazardous environments.
Applications
  • Hazardous environments requiring Zone 0 and UL Class 1 Div 1 compliance
  • Mining, oil and gas, chemical plants, and other explosive atmospheres
  • Industrial safety and inspection tasks in hazardous zones
Standards & Compliance
  • Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long runtime reduces battery waste
  • Durable construction minimizes replacement frequency
Warranty Information

Warranty details available upon request from Unilite; typically includes manufacturer defects coverage.

Available Now

The Unilite Zone 0 ATEX Head Torch is available for immediate purchase, ideal for use in hazardous industrial and mining environments.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
