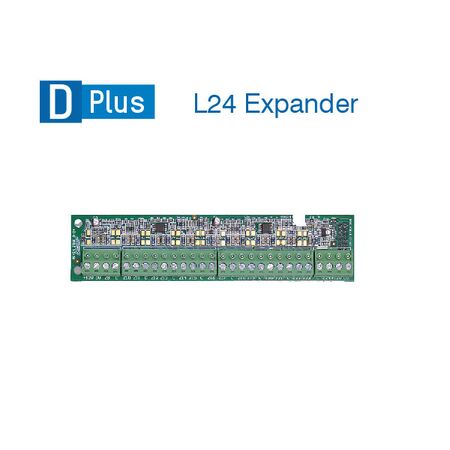

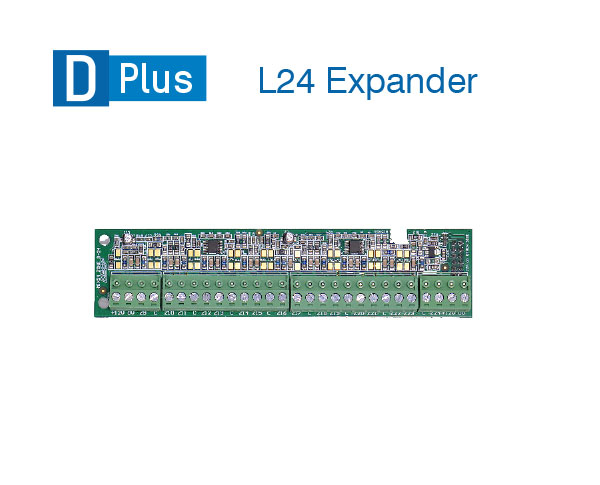

Zone Expander 9-24 Hardwired and Wireless Ness

BRAND: Ness
SKU: 106-983
$75.60 List price: $100.80
+ −
30 Days Return Electricians Unlock Trade Access
Ness zone expander features 9-24 zones with hardwired and wireless expansion. Ideal for expanding alarm systems.

Alternatively Known As: Ness L24 Local Expander, DPlus-L24 Alarm Zone Expander, Ness 24-Zone Expander

Technical Specifications
  • Model: DPlus-L24
  • Additional Inputs: 16 hardwired zones
  • System Capacity: 24 hardwired zones when installed with the DPlus 8-zone base panel
  • Zone Allocation: Zones 9-24
  • Wireless Capability: Up to 32 wireless zones when used with an optional Ness radio interface
  • Connection: Plug-in expansion module for the Ness DPlus main board
  • Zone Doubling: Not required for 24 hardwired zones
  • Standalone Dimensions: Manufacturer does not publish separate module dimensions; dimensions provided are an estimate for the PCB-format expander
  • Estimated Weight: Approx. 0.10 kg
  • Dimensions (H x L x W): 20mm x 120mm x 75mm
  • Weight: 0.1 kg
Key Features
  • Adds 16 hardwired alarm zones to a Ness DPlus system
  • Expands the DPlus base panel from 8 to 24 hardwired zones
  • Uses zones 9-24 without zone doubling
  • Supports up to 32 wireless zones when paired with an optional Ness radio interface
  • Plug-in installation on the DPlus main board
  • Made in Australia
Professional Installation Requirements
  • Installation should be performed by a qualified security technician. The DPlus panel must be powered down before fitting or removing the expansion module, and wiring and programming should follow the manufacturer's installation instructions.
Applications
  • Expanding Ness DPlus residential alarm systems
  • Expanding Ness DPlus commercial security systems
  • Adding hardwired detectors, reed switches, panic buttons and other alarm inputs
  • Integrating hardwired and wireless detection devices in one alarm system
Standards & Compliance
  • AS/NZS 2201.1:2007 for the design, installation, commissioning and maintenance of intruder alarm systems
Environmental Benefits
  • Extends the service life of an existing DPlus alarm panel, reducing the need to replace the complete system
  • Compact electronic expansion module minimises additional material use compared with installing a separate alarm control panel
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))

Available Now

Available through Ness Corporation and authorised Australian security distributors. ([ness.com.au](https://ness.com.au/contactus?utm_source=openai))
