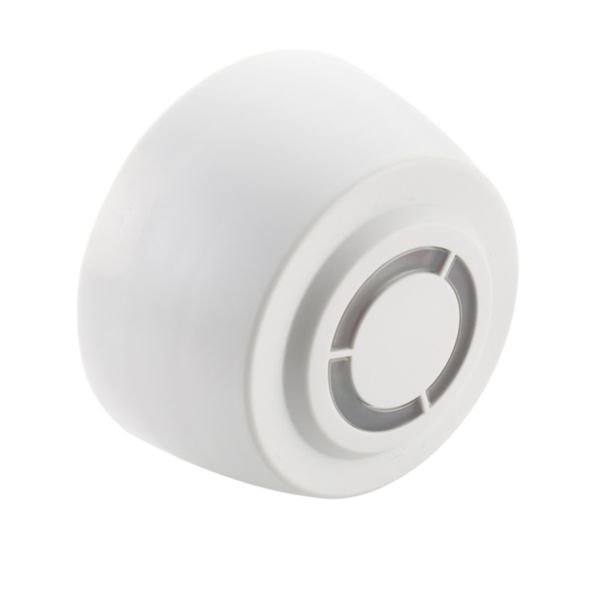

1-10V Analogue Dimming Microwave Presence Detector | IP40 Rated | Controls Up to 10 Drivers | Surface Mounted | @EA of 1 | by CP Electronics
The 1-10V Analogue Dimming Microwave Presence Detector is designed for efficient lighting control in commercial and office spaces. With IP40 protection and the ability to control up to 10 drivers, this surface-mounted sensor utilizes high-frequency microwave technology for reliable presence detection. Ideal for energy savings, it features adjustable luminosity settings and easy installation, making it perfect for modern indoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-10V Analogue Dimming Microwave Presence Detector | IP40 Rated | Controls Up to 10 Drivers | Surface Mounted | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS6SM-AD
Alternatively Known As: Microwave Presence Detector, Ceiling Mounted Occupancy Sensor, 1-10V Dimming Presence Sensor, Surface Mounted Motion Detector
Technical Specifications
- Detection technology: High frequency microwave
- Voltage: 230 V AC, 50 Hz
- Max switching power: 2300 W
- Detection angle: 360° horizontal
- Max reach: 8 m sideways and frontally, 16 m diameter on floor
- Response value luminosity adjustable: 0-2000 lx
- Switch-on delay: 1 second, Switch-off delay: 10 seconds
- Standby consumption: approx. 3.1 mA
- Degree of protection: IP40
- Impact strength: IK05
- Material: Thermoplastic, halogen free, matt white finish
- Mounting method: Surface mounted
- Mandatory neutral connection required
- Terminals capacity: 2.5 mm²
- Dimensions (H x L x W): 95mm x 52mm x 95mm
- Weight: 0.15 kg
Key Features
- Surface mounted with IP40 rating for indoor use
- Microwave presence/absence detection technology
- Controls up to 10 drivers/ballasts with 1-10V analogue dimming
- Programmable via UHS5 or UNLCDHS handsets
- Switching/dimming with lux level sensing and lensing
- Absence detection and maintained illuminance with daylight linking
- Two channel flexibility with scene setting and recall
- Compatible with all lighting types
- Self-contained unit with easy installation via back plate
- Optional infrared remote handset for user override
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal device performance.
Applications
- Automatic control of lighting in commercial and office spaces
- Heating and ventilation control in indoor environments
- Energy saving through presence and absence detection
- Suitable for ceiling surface mounting in various indoor settings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on presence
- Supports daylight harvesting to minimize unnecessary artificial lighting
- Helps lower carbon footprint through efficient energy management
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics 1-10V Analogue Dimming IP40 Ceiling Surface Mounted Microwave Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
