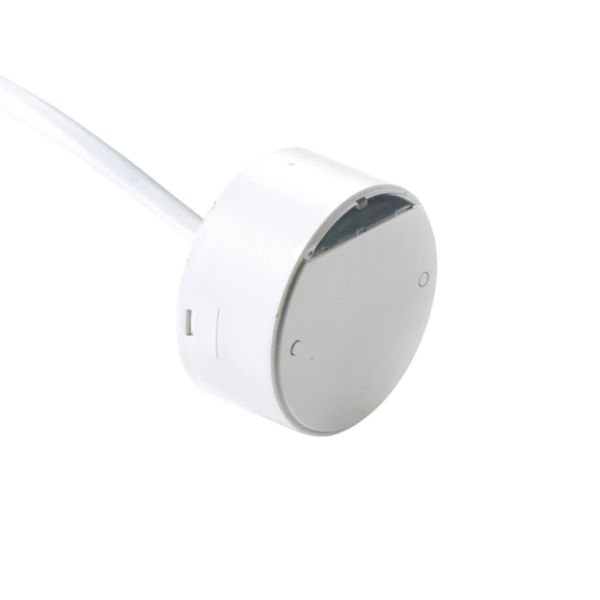

1-10V Analogue Dimming Miniature Microwave Presence Detector | IP40 Rated | 360° Detection | @Each of 1 | by CP Electronics
The 1-10V Analogue Dimming Miniature Microwave Presence Detector is designed for seamless integration into luminaires, offering a 360° detection angle and an impressive 8m diameter reach. Ideal for commercial and industrial applications, this sensor enables automatic lighting control and energy savings through adjustable sensitivity and luminosity response values. With its IP40 rating and halogen-free thermoplastic construction, it ensures durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-10V Analogue Dimming Miniature Microwave Presence Detector | IP40 Rated | 360° Detection | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS5-AD-L03
Alternatively Known As: Microwave Presence Sensor, Miniature Microwave Detector, IP40 Presence Detector, 1-10V Dimming Presence Sensor, Luminaire Presence Detector
Technical Specifications
- Detection technology: High frequency microwave sensor
- Voltage: 230V AC, 50Hz
- Detection angle: 360° horizontal
- Detection range: 8m diameter on floor, 4m reach sideways and frontally
- Switching power: Max 1100W
- Control current: 4.8mA
- Standby consumption: 3.6mA
- Operating temperature: -10°C to 80°C
- IP rating: IP40
- Impact rating: IK05
- Material: Halogen free thermoplastic, matt white finish
- Mounting method: Surface mounted
- Response value luminosity adjustable: 0-2000 lux
- Switch-off delay: 10 seconds
- Switch-on delay: 1 second
- Mandatory neutral connection required
- Terminals capacity: 1.5 mm²
- Connection cable length: 300mm lead
- Dimensions (H x L x W): 39mm x 19mm x 39mm
- Weight: 0.1 kg
Key Features
- Miniature microwave presence detector designed for luminaire mounting
- 1-10V analogue dimming control for lighting ballasts
- 360° detection angle with up to 8m diameter reach on the floor
- Adjustable sensitivity and luminosity response values
- Programmable via UHS5 or UNLCDHS/a handsets
- Surface mounted with IP40 protection rating
- Compatible with all lighting types including DALI/DSI digital dimming
- Maintained illuminance and daylight harvesting capabilities
- Remote operation and supplied remote control included
- Halogen free thermoplastic material with matt white finish
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic lighting control in large or awkwardly shaped spaces
- Luminaire integration for presence detection
- Suitable for incandescent, fluorescent, and compact fluorescent lighting
- Ideal for commercial and industrial lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings through automatic lighting control and dimming
- Supports daylight harvesting to reduce unnecessary artificial lighting
- Reduces energy consumption and carbon footprint in commercial buildings
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics 1-10V Analogue Dimming Miniature IP40 Microwave Presence Detector Head with 300mm Lead is available for immediate purchase, ideal for integration in commercial and industrial luminaires requiring automatic lighting control.
