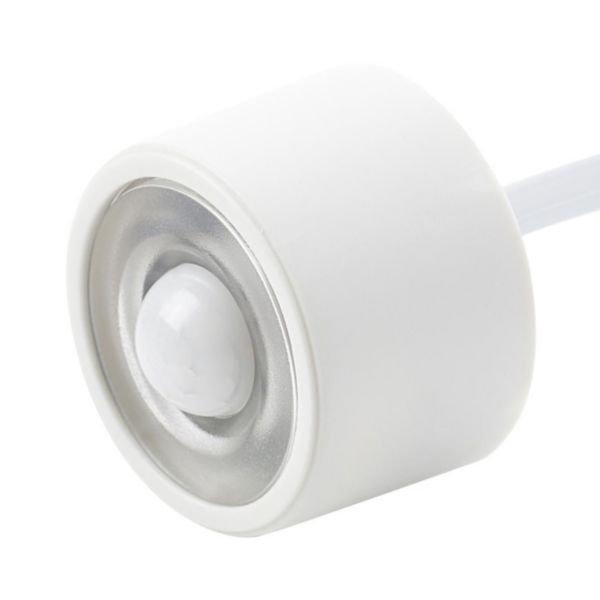

1-10V Analogue Dimming Miniature PIR Presence Detector | IP40 Rated | Ceiling Flush Mounted | @Each of 1 | by CP Electronics
The 1-10V Analogue Dimming Miniature PIR Presence Detector is designed for efficient lighting control in commercial and office environments. With its IP40 rating and small, unobtrusive design, it seamlessly integrates into ceilings while providing automatic lighting based on occupancy. Pre-wired with a 1m lead for easy installation, this detector supports dimming control and absence detection, making it perfect for energy-saving applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-10V Analogue Dimming Miniature PIR Presence Detector | IP40 Rated | Ceiling Flush Mounted | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBMPIR-AD-SL-L1
Alternatively Known As: Miniature PIR Presence Detector, 1-10V Analogue Dimming PIR Sensor, Ceiling Mounted PIR Detector, Flush Mounted Presence Sensor
Technical Specifications
- Detection method: Passive Infrared (PIR)
- Dimming control: 1-10V analogue dimming
- Mounting height: Up to 2.8 meters
- IP rating: IP40
- Connection: Pre-wired with 1m lead and RJ11 plug
- Relay rating: 6A (standard power supply)
- Programmable via UHS5 or UNLCDHS handsets
- Lux level sensing and switching
- Absence detection with adjustable timeout
- Compatible with incandescent, fluorescent, and compact fluorescent lighting
- Dimensions (H x L x W): 25mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Small and unobtrusive design for ceiling flush mounting
- 1-10V analogue dimming control compatible with dimming ballasts
- Pre-wired with 1m lead and RJ11 plug for easy connection
- Suitable for mounting heights up to 2.8m
- Programmable via UHS5 or UNLCDHS handsets
- Supports switching and dimming with lux level sensing
- Absence detection with adjustable timeout period
- Two channel flexibility and scene setting capabilities
- IP40 rated for indoor use
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Commercial and office lighting control
- Automatic lighting in corridors and meeting rooms
- Energy-saving lighting in retail and hospitality environments
- Luminaire integration for presence detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on occupancy
- Supports daylight harvesting to optimize natural light use
- Helps lower carbon footprint through efficient lighting management
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The CP Electronics 1-10V Analogue Dimming Miniature IP40 Ceiling Flush Mounted PIR Presence Detector with 1m Lead is available for immediate purchase, ideal for commercial and office lighting control applications.
