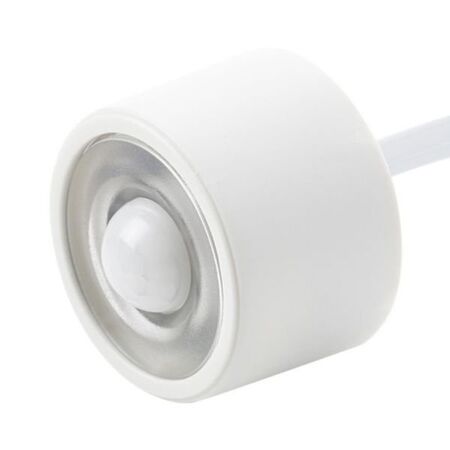

1-10V Analogue Dimming Miniature PIR Presence Detector | IP40 Rated | Ceiling Flush Mounted | @Each of 1 | by CP Electronics
The 1-10V Analogue Dimming Miniature PIR Presence Detector is designed for efficient lighting control in commercial and office environments. With its IP40 rating and ceiling flush mount design, it offers reliable presence and absence detection, programmable via UHS5 or UNLCDHS handsets. This detector supports various lighting types and features adjustable timeout for energy-saving automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-10V Analogue Dimming Miniature PIR Presence Detector | IP40 Rated | Ceiling Flush Mounted | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBMPIR-AD-L1
Alternatively Known As: Miniature PIR Presence Detector, Analogue Dimming PIR Sensor, Ceiling Mounted PIR Detector, IP40 PIR Presence Sensor
Technical Specifications
- Detection method: Passive Infrared (PIR)
- Dimming control: 1-10V analogue dimming
- IP rating: IP40
- Mounting: Ceiling flush mounted
- Lead length: 1 meter with RJ11 plug
- Mounting height: Up to 2.8 meters
- Programmable via handset (UHS5 or UNLCDHS)
- Switching and dimming with lux level sensing
- Absence detection with adjustable timeout
- Compatible with incandescent, fluorescent, compact fluorescent lighting
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Small and unobtrusive design for ceiling flush mounting
- 1-10V analogue dimming control compatible with dimming ballasts
- Pre-wired with 1m lead and RJ11 plug for easy connection
- Suitable for mounting heights up to 2.8m
- Programmable via UHS5 or UNLCDHS handsets
- Supports switching and dimming with lux level sensing and lensing
- Absence detection with adjustable timeout period
- Two channel flexibility and scene setting/recall
- Compatible with all lighting types including incandescent, fluorescent, and compact fluorescent
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and proper integration with lighting systems.
Applications
- Commercial and office lighting control
- Energy-saving lighting automation
- Presence and absence detection in indoor environments
- Integration with luminaires for automatic lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on presence
- Supports daylight harvesting and maintained illuminance to optimize energy use
- Helps lower carbon footprint through efficient lighting management
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics 1-10V Analogue Dimming Miniature IP40 Ceiling Flush Mounted PIR Presence/Absence Detector with 1m Lead is available for immediate purchase, ideal for commercial and office lighting automation applications.
