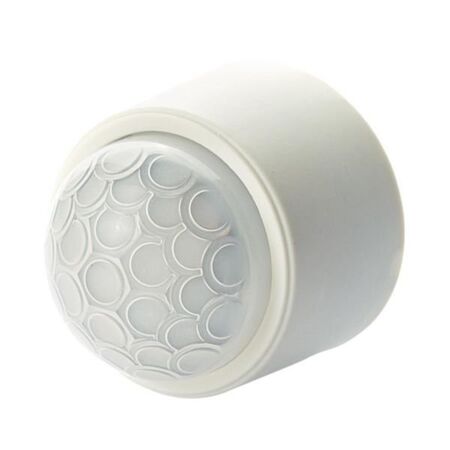

1-10V Analogue Dimming Miniature PIR Presence Detector | IP40 Rated | Controls Up to 10 Drivers | @EA of 1 | by CP Electronics
The 1-10V Analogue Dimming Miniature PIR Presence Detector is designed for efficient indoor lighting control, featuring high sensitivity PIR technology and the ability to control up to 10 drivers. Ideal for commercial and office environments, this detector helps reduce energy consumption by automatically adjusting lighting based on presence, ensuring optimal performance and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-10V Analogue Dimming Miniature PIR Presence Detector | IP40 Rated | Controls Up to 10 Drivers | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBMHS-AD-SA-C
Alternatively Known As: Miniature PIR Presence Detector, 1-10V Dimming PIR Sensor, Ceiling Mounted Occupancy Sensor, CP Electronics PIR Detector
Technical Specifications
- Detection technology: Passive Infrared (PIR)
- Dimming control: 1-10V analogue dimming
- IP rating: IP40 suitable for indoor ceiling mounting
- Power supply unit: Standard or slim-line PSU options
- Maximum drivers controlled: Up to 10
- Mounting height: Up to 9 meters
- Connection: Pre-wired with RJ11 plug
- Programming: Infrared programmable
- Dimensions (H x L x W): 40mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Small and unobtrusive design
- High sensitivity PIR sensor for increased detection range
- Suitable for mounting heights up to 9 meters
- Supplied pre-wired with RJ11 plug for easy PSU connection
- Flush mounting ring included for simple ceiling installation
- Available with standard or slim-line power supply unit (PSU)
- Infrared programmable for flexible settings
- Controls up to 10 drivers with 1-10V analogue dimming
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Commercial and office lighting control
- Energy-saving presence and absence detection
- Integration with 1-10V dimmable luminaires
- Ceiling mounting in indoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on presence
- Supports dimming to lower power usage and extend lamp life
- Helps decrease carbon footprint through efficient lighting management
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The CP Electronics 1-10V Analogue Dimming Miniature IP40 Ceiling Mounted PIR Presence/Absence Detector with PSU is available for immediate purchase, ideal for commercial and office lighting control applications.
