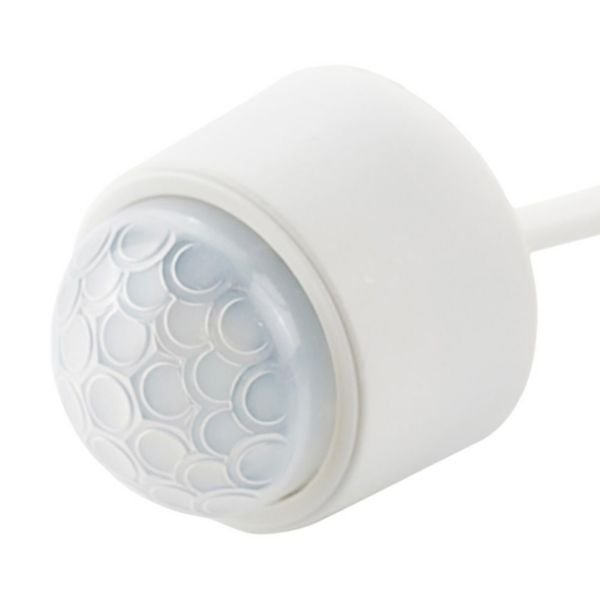

1-10V Analogue Dimming Miniature PIR Presence Detector | IP40 Rated | Flush/Surface Mounted | @Each of 1 | by CP Electronics
The 1-10V Analogue Dimming Miniature PIR Presence Detector is designed for efficient lighting control in commercial spaces. With an IP40 rating and a pre-wired 1m lead, it easily connects to power supplies. Ideal for mounting at heights up to 9 meters, this detector supports absence detection and daylight harvesting, ensuring energy savings and optimal lighting management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-10V Analogue Dimming Miniature PIR Presence Detector | IP40 Rated | Flush/Surface Mounted | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBMHS-AD-SL-L1
Alternatively Known As: Miniature PIR Presence Sensor, 1-10V Dimming PIR Detector, Flush Mounted PIR Sensor, Surface Mounted PIR Detector
Technical Specifications
- IP Rating: IP40
- Detection method: Passive Infrared (PIR)
- Dimming control: 1-10V analogue dimming ballasts
- Mounting height: Up to 9 meters
- Connection: Pre-wired with 1m lead and RJ11 plug
- Programmable settings: Timeout, lux level, scene recall
- Relay rating: 6A (standard power supply) or 2A (slim-line power supply)
- Compatible lighting types: Incandescent, fluorescent, compact fluorescent
- No acoustic sensor or background monitoring
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Small and unobtrusive design suitable for flush or surface mounting
- Pre-wired with RJ11 plug for easy connection to power supply
- Suitable for mounting at heights up to 9 meters
- Controls 1-10V analogue dimming ballasts
- Adjustable timeout period for automatic switching off
- Programmable via UHS5 or UNLCDHS handsets
- Supports absence detection and daylight harvesting
- Two channel flexibility with scene setting and recall
- Compatible with incandescent, fluorescent, and compact fluorescent lighting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and proper integration with lighting systems.
Applications
- Lighting control in commercial and office buildings
- Automatic lighting management in corridors and rooms
- Energy saving in spaces with intermittent occupancy
- Integration with luminaires for presence detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching off lights when areas are unoccupied
- Supports daylight harvesting to optimize natural light use
- Helps lower carbon footprint through efficient lighting control
Warranty Information
Standard manufacturer warranty applies, typically 2 years.
Available Now
The CP Electronics 1-10V Analogue Dimming Miniature IP40 PIR Presence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
