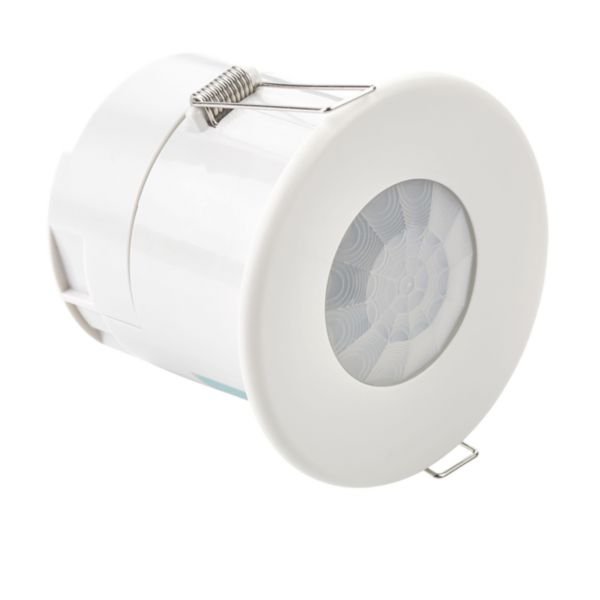

1-10V Analogue Dimming PIR Presence Detector | IP40 Rated | 360° Detection | Flush Mounted | @EA of 1 | by CP Electronics
The 1-10V Analogue Dimming PIR Presence Detector is designed for efficient lighting control in commercial and office spaces. With a 360° detection angle and IP40 rating, it supports up to 10 drivers or ballasts, making it ideal for energy-saving applications. This compact, flush-mounted unit features infrared programmability and daylight harvesting capabilities, ensuring optimal performance and reduced energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-10V Analogue Dimming PIR Presence Detector | IP40 Rated | 360° Detection | Flush Mounted | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSPIR-AD
Alternatively Known As: PIR Presence Detector, Ceiling PIR Sensor, Analogue Dimming PIR Sensor, Flush Mounted PIR Detector, Occupancy Sensor
Technical Specifications
- Detection technology: Passive Infrared (PIR)
- Voltage: 230 V AC, 50 Hz
- Max switching power: 2300 W
- Max starting current: 80 A
- Detection angle: 360° horizontal
- Max reach: 3.5 m sideways and frontally, 7 m diameter on floor
- IP rating: IP40
- Impact rating: IK05
- Operating temperature: -10 to 35 °C
- Standby consumption: approx. 1.13 mA
- Terminals capacity: 2.5 mm²
- Mounting method: Flush-mounted in ceiling tile or surface box
- Material: Halogen free thermoplastic, matt white (RAL 9002)
- Infrared programmable with remote handset
- Supports forced switch off and staircase light control
- Dimensions (H x L x W): 76mm x 69.5mm x 76mm
- Weight: 0.1 kg
Key Features
- Compact low profile design for flush ceiling mounting
- Self-contained unit with no external control boxes required
- Infrared programmable with optional remote handset
- Supports switching and dimming with lux level lensing
- Maintained illuminance with daylight linking/harvesting
- Suitable for all lighting types and up to 10 drivers/ballasts
- Two channel flexibility with scene setting and recall
- Lamp burn-in function
- IP40 rated for indoor use
- Halogen free thermoplastic material
- 360° horizontal detection angle with 7m diameter floor reach
- Adjustable response sensitivity and luminosity
- Forced switch off and staircase light controller features
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct integration with lighting control systems.
Applications
- Lighting control in commercial and office buildings
- Automatic presence detection for energy saving
- Daylight harvesting and dimming control
- Staircase lighting control
- HVAC load control integration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption through automatic lighting control and daylight harvesting
- Supports dimming to extend lamp life and reduce power usage
- Halogen free materials for reduced environmental impact
Warranty Information
Standard manufacturer warranty applies; typically 2 years against defects.
Available Now
The CP Electronics 1-10V Analogue Dimming Compact IP40 Ceiling Flush Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
