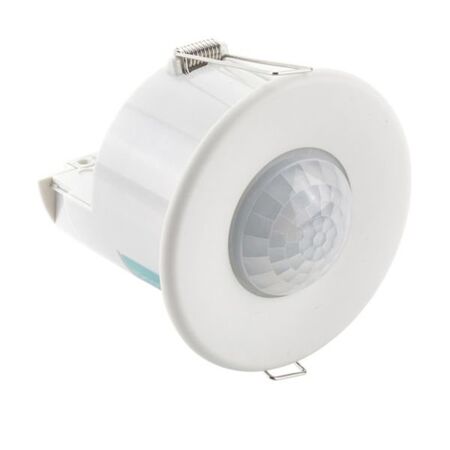

1-10V Analogue Dimming PIR Presence Detector | IP40 Rated | Flush Mounted | @Each of 1 | by CP Electronics
The 1-10V Analogue Dimming PIR Presence Detector is designed for efficient lighting control in commercial and office spaces. With its IP40 rating and ability to control up to 10 devices, this flush-mounted sensor offers programmable dimming and absence detection features. Ideal for energy savings and automatic light adjustment, it ensures optimal performance in indoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-10V Analogue Dimming PIR Presence Detector | IP40 Rated | Flush Mounted | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDMR-AD
Alternatively Known As: PIR Presence Detector, Ceiling PIR Sensor, Analogue Dimming PIR Detector, IP40 Ceiling PIR Sensor
Technical Specifications
- Detection type: Passive Infrared (PIR)
- Dimming control: 1-10V analogue dimming up to 10 devices (10 x 2mA)
- IP rating: IP40 suitable for indoor ceiling flush mounting
- Programmable via handset for on/off, lux levels, and preset scenes
- Lux level sensing and lensing for automatic light adjustment
- Two channel output for flexible lighting control
- Absence detection functionality included
- No acoustic sensor included
- No connection cable included
- Dimensions (H x L x W): 40mm x 100mm x 100mm
- Weight: 0.2 kg
Key Features
- Mid-range PIR detector with high performance faceted lens for superior detection pattern
- 1-10V analogue dimming with switching and dimming capabilities
- Lux level lensing and sensing for energy-efficient lighting control
- Programmable via dedicated programming handset
- Absence detection functionality
- Two channel flexibility for complex lighting control
- Scene setting and recall features
- Maintained illuminance with daylight linking or daylight harvesting
- Compatible with all lighting types
- Lamp burn-in feature
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Open plan office spaces
- Commercial and retail lighting control
- Areas requiring presence or absence detection for lighting automation
- Ceiling mounted installations in indoor environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports energy savings through daylight harvesting and presence detection
- Reduces unnecessary lighting usage, lowering electricity consumption
- Compatible with all lighting types to optimize energy efficiency
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The CP Electronics 1-10V Analogue Dimming Mid Range IP40 Ceiling Flush Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting automation applications.
