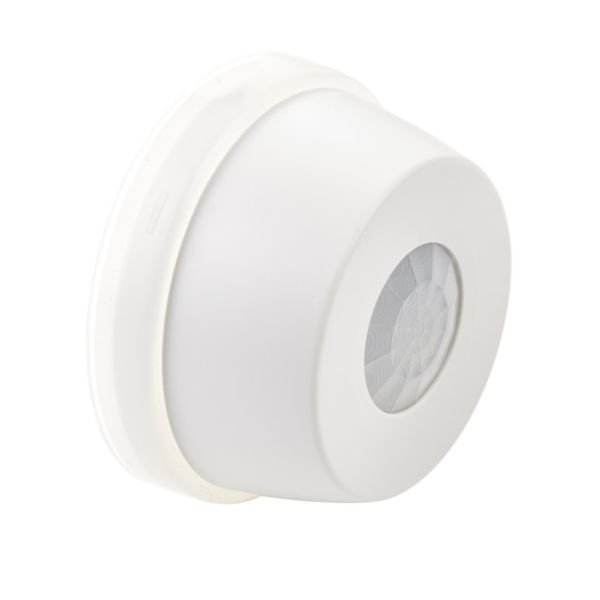

1-10V Analogue Dimming PIR Presence Detector | IP54 Rated | Controls Up to 10 Drivers | 360° Detection | @EA of 1 | by CP Electronics

BRAND: CP Electronics
SKU: EBDSM-AD
$356.20 List price: $443.90
+ −
30 Days Return Delivery Options
The 1-10V Analogue Dimming PIR Presence Detector is designed for efficient lighting control in commercial spaces. With a 360° detection angle and the ability to control up to 10 drivers, it ensures optimal energy savings and convenience. Ideal for corridors and staircases, this compact surface-mounted unit features IP54 protection for enhanced durability and performance.

Product Name/Title: 1-10V Analogue Dimming PIR Presence Detector | IP54 Rated | Controls Up to 10 Drivers | 360° Detection | @EA of 1 | by CP Electronics

Brand: CP Electronics

SKU: EBDSM-AD

Alternatively Known As: PIR Presence Detector, Analogue Dimming PIR Sensor, Ceiling Mounted Occupancy Sensor, 1-10V Dimming PIR Detector, Surface Mounted PIR Sensor

Technical Specifications
  • Detection technology: Passive Infrared (PIR)
  • Voltage: 230V AC, 50Hz
  • Max switching power: 2300W
  • Max starting current: 80A
  • Detection angle: 360° horizontal
  • Max reach: 3.5m sideways and frontally, 7m diameter on floor
  • Response value luminosity adjustable: 0-2000 lux
  • Switch-on delay: 1 second, switch-off delay: 10 seconds
  • Standby consumption: approx. 1.13mA
  • Material: Thermoplastic, halogen free, matt white finish
  • Degree of protection: IP40 standard, IP54 with gasket
  • Impact resistance: IK05
  • Mounting method: Surface mounted
  • Operating temperature: -10°C to 35°C
  • Terminal capacity: 2.5 mm²
  • Mandatory neutral connection required
  • Dimensions (H x L x W): 94mm x 50mm x 94mm
  • Weight: 0.15 kg
Key Features
  • Compact surface mounted PIR detector for presence and absence detection
  • Controls up to 10 drivers/ballasts with 1-10V analogue dimming
  • Self-contained unit with no external control boxes required
  • Infrared programmable with optional remote handset for override
  • IP40 rated, upgradeable to IP54 with gasket for enhanced protection
  • Switching and dimming with lux level sensing and lensing
  • Maintained illuminance with daylight linking and step-down illuminance
  • Two channel flexibility with scene setting and recall
  • Suitable for all lighting types and includes lamp burn-in feature
  • Surface mounted installation with thermoplastic, halogen-free housing
  • 360° detection angle with 3.5m reach sideways and frontally
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
  • Lighting control in commercial and office buildings
  • Automatic lighting for corridors and staircases
  • Energy saving in HVAC and lighting systems
  • Daylight harvesting and maintained illuminance control
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Reduces energy consumption by automatically controlling lighting based on occupancy and daylight levels
  • Supports daylight harvesting to minimize unnecessary artificial lighting
  • Helps lower carbon footprint through efficient lighting management
Warranty Information

Standard manufacturer warranty applies; typically 2 years against defects.

Available Now

The CP Electronics 1-10V Analogue Dimming IP54 Ceiling Surface Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
