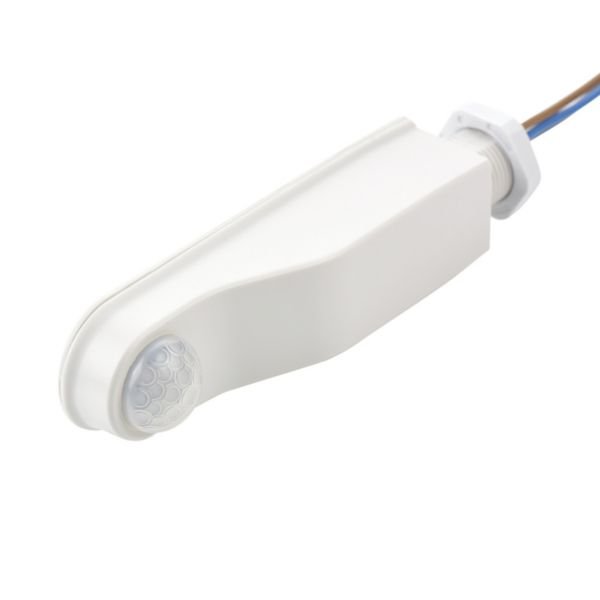

1-10V Analogue Dimming PIR Presence Detector | IP65 Rated | 360° Detection | by CP Electronics
The 1-10V Analogue Dimming PIR Presence Detector is designed for efficient lighting control, featuring IP65 rating for outdoor use and a 360° detection angle. Ideal for retrofit upgrades in commercial and industrial settings, it automatically adjusts lighting based on presence and ambient light levels, ensuring energy savings and enhanced convenience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-10V Analogue Dimming PIR Presence Detector | IP65 Rated | 360° Detection | by CP Electronics
Brand: CP Electronics
SKU: EBMPIR-MB-AD
Alternatively Known As: PIR Presence Detector, Ceiling Mounted PIR Sensor, 1-10V Dimming PIR Detector, Batten Mount PIR Sensor, IP65 PIR Presence Sensor
Technical Specifications
- Presence detector technology: Passive infrared (PIR)
- Constant light control: Yes
- Forced switch off: Yes
- Max mounting height: 7 m
- Detection angle horizontal: 360°
- Max switching power: 460 W
- Nominal voltage: 230 V AC, 50 Hz
- IP rating: IP65
- Impact rating: IK05
- Response value luminosity: 0-2000 lx
- Switch-on delay: 1 s
- Switch-off delay: 10 s
- Standby consumption: approx. 3.55 mA
- Material: Thermoplastic, halogen free, matt white finish (RAL 9002)
- Pre-wired with 1m cable
- Suitable for up to 4 drivers/ballasts
- Dimensions (H x L x W): 28mm x 144mm x 33mm
- Weight: 0.1 kg
Key Features
- Batten mount retrofit system for easy installation
- Integrated unit with no separate power supply required
- IP65 rated for outdoor and wet area suitability
- Movement detection up to 7 metres high
- Pre-wired with 1m cable length and supplied with fitting kit
- Switching and dimming with lux level sensing and lensing
- Programmable via UHS5 or UNLCDHS handsets
- Supports maintained illuminance and daylight harvesting
- Two channel flexibility with scene setting and recall
- Compatible with all lighting types using 1-10V analogue dimming
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct integration with existing lighting systems.
Applications
- Retrofit upgrades for existing batten style luminaires
- Outdoor and wet/wash-down areas due to IP65 rating
- Automatic lighting control in commercial and industrial buildings
- Presence detection for energy saving in offices, corridors, and staircases
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on presence and ambient light levels
- Supports daylight harvesting to minimize unnecessary artificial lighting
- Helps lower carbon footprint through efficient lighting management
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics 1-10V Analogue Dimming Miniature Retrofit IP65 Ceiling Luminaire Mounted PIR Presence Detector is available for immediate purchase, ideal for retrofit lighting control in commercial and industrial applications.
