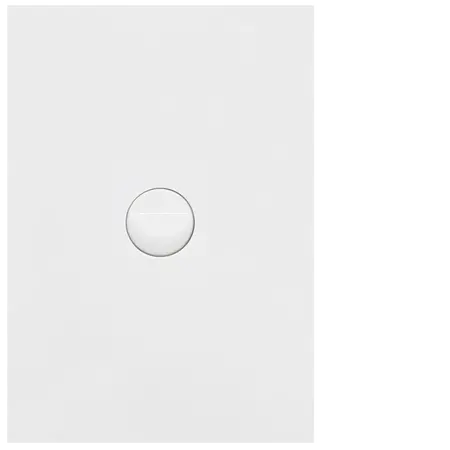

1 Gang Switch Mechanism 16A 2-Way Allure Flush Mount White Hager

BRAND: :hager
SKU: WBQSV1-MW
$19.10 List price: $23.80
+ −
30 Days Return Electricians Unlock Trade Access
The 1 Gang Switch Mechanism 16A 2-Way Allure Flush Mount White Hager is designed for residential and commercial switching applications. It features a 16A rated current, polycarbonate construction, screw mounting and a 2-way switch with loop terminal. The mechanism has IP2X ingress protection and complies with AS/NZS 3000 for electrical installation safety. See the full specifications and installation requirements below before ordering.
Technical Specifications
  • Rated current: 16 A
  • Frequency: 50 Hz
  • Material: Polycarbonate (PC)
  • Ingress Protection (IP) class: IP2X
  • Impact resistance: IK08
  • Mounting type: Screw mounting
  • Switch mode: 2-way with loop terminal
  • Dimensions (H x L x W): 86mm x 23mm x 86mm
  • Weight: 0.2 kg
Key Features
  • Rated current of 16 A for reliable performance.
  • Flush mounting design for a sleek appearance.
  • Made from durable polycarbonate material.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments
  • Commercial: Offices, retail spaces
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • RoHS and REACH compliant, ensuring reduced environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager 1 Gang Switch Plate with Mechanism in Matt White is available now for immediate purchase. Ideal for residential and commercial applications.

FAQ

Q: What is the current rating of this switch mechanism?
A: The switch mechanism has a rated current of 16A and is configured for 2-way switching.

Q: How is the switch mechanism mounted?
A: It uses screw mounting and features a flush mount design.


For another 1-gang switch mechanism option, consider a 10A 2-way configuration with a horizontal design.
A 1-gang switch mechanism with 16AX 2-way operation provides another option for compatible switching applications.
For a 15A option, use a 1-gang switch mechanism with 1P Como vertical configuration.

Register for a trade account to access exclusive pricing on this and other electrical products.


Data Sheet (WBQSV1-MW, 104 Kb) [Download]

Certificate (reach_declaration_WBQSV1-MW.pdf, 103 Kb) [Download]

Certificate (rohs_declaration_WBQSV1-MW.pdf, 104 Kb) [Download]
