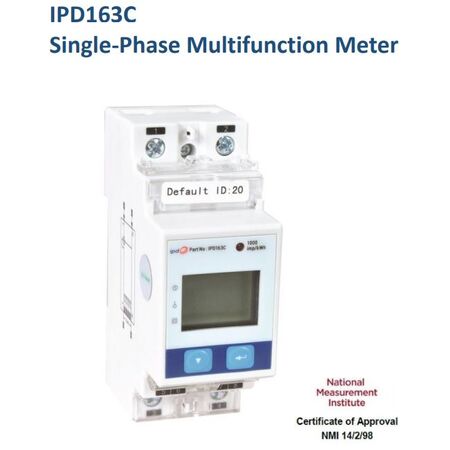

1 Phase Multifunction Meter 63A DIN Rail Mount Modbus 240VAC IPD
IPD 1 Phase Multifunction Meter 63A DIN Rail Mount Modbus 240VAC.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 240VAC
- Frequency range: 45Hz-65Hz
- Maximum current (Imax): 63A
- Accuracy class: Class 1 to IEC 62053-21
- Display: 6½ digit multifunction LCD
- Communication: RS-485 with Modbus RTU protocol
- Starting current: 20mA
- Pulse output: kWh LED and solid state energy pulse output at 1000 imp/kWh
- Mounting: DIN rail

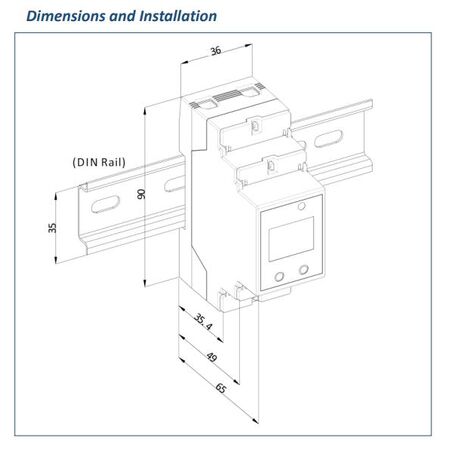

- Dimensions (H x L x W): 90mm x 65mm x 72mm
- Weight: 0.3 kg
Key Features
- Class 1 accuracy to IEC 62053-21
- 63A direct connect input
- Low starting current at 20mA
- Multifunction measurements including Voltage, Current, kW, kvar, kVA, PF, and Frequency
- 6½ digit multifunction LCD display
- Self-powered, no external control power required
- kWh LED pulse output
- Solid state energy pulse output at 1000 imp/kWh
- RS-485 port with Modbus RTU protocol
- DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and correct integration with energy management systems.
Applications
- Energy management systems
- Billing and trade metering
- Industrial and commercial electrical installations
- Low voltage energy metering
Standards & Compliance
- Complies with AS/NZS 62053-21 for electricity metering accuracy and performance
Environmental Benefits
- Enables accurate energy monitoring to optimize power usage and reduce waste
- Supports energy management systems to improve overall energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to the product datasheet for detailed warranty terms.
Available Now
The IPD Single-Phase Multifunction Meter 63A is available now for immediate purchase. Ideal for commercial and industrial energy monitoring and billing applications.
