10.2mm Flexible 316 Conduit 3 8" M20 Stainless Steel Wattmaster

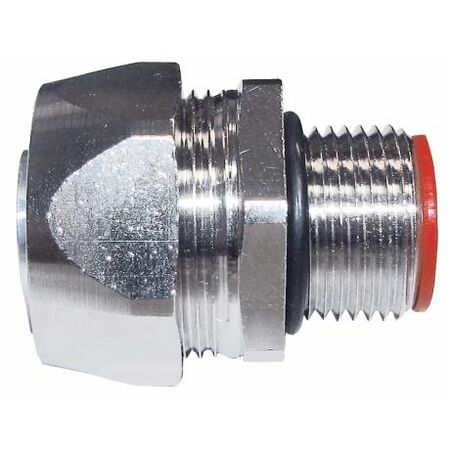

Wattmaster Flexible 316 Conduit Fitting 3 8" Male Thread Dust & Liquid-Tight features Stainless Steel Grade 316 body and cap construction, stainless steel finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Stainless Steel Grade 316 body and cap
- Ferrule: Tin Plated Steel
- Inner Seal: Polyamide 6
- Throat Insulator: Polyamide 6
- Conduit Nut: Stainless Steel Grade 316
- Inside Diameter: 10.2mm
- Thread Size: 3/8" Male Thread M20
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 13mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Constructed from stainless steel grade 316 for superior corrosion resistance
- Provides dust and liquid-tight connection to flexible metal conduit
- Includes body and cap made from SS Grade 316
- Ferrule made from tin plated steel for durability
- Inner seal and throat insulator made from Polyamide 6
- Conduit nut made from SS Grade 316
- Temperature range from –45°C to +105°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Stainless steel construction ensures long product life reducing waste
- Corrosion resistance minimizes need for replacements and maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Flexible Stainless Steel 316 Conduit Fitting Straight 3/8" Male Thread M20 is available for immediate purchase, ideal for use in corrosive and wet environments requiring durable conduit connections.
