10.2mm Flexible Metal 3 8" M20 Nickel-Plated Brass Wattmaster

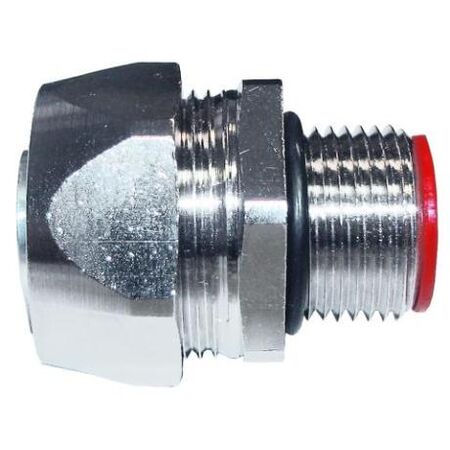

Wattmaster Flexible Metal Conduit Fitting 3 8" Male Thread M20 Dust & Liquid-Tight features nickel-plated brass finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread Size: 3/8" Male Thread M20
- Inside Diameter: 10.2mm
- Total Length: 13mm
- Body and Cap Material: Brass, Nickel Plated
- Ferrule Material: Tin Plated Steel
- Inner Seal Material: Polyamide 6
- Throat Insulator Material: Polyamide 6
- Nut Material: Brass, Nickel Plated
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 13mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule made of tin plated steel
- Inner seal and throat insulator made of durable Polyamide 6
- Temperature range from –45°C to +105°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Nickel plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit Fitting Straight 3/8" Male Thread M20 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
FAQ
Q: What thread size does this conduit fitting use?
A: This fitting features a 3/8" male thread with an M20 connection for flexible metal conduit installations.
Q: What materials are used in this fitting?
A: The fitting includes a brass body and cap, a brass nickel-plated nut, a tin-plated steel ferrule, and Polyamide 6 internal components.
Pair this fitting with a flexible PVC anaconda NMUA liquidtight conduit to create a complete liquid-tight conduit system.
A flexible smooth PVC conduit is suitable for cable routing applications requiring a draw wire.
For angled conduit entries, a flexible metal conduit fitting brass 3/8" thread 45° Wattmaster can be integrated into compatible conduit installations.
