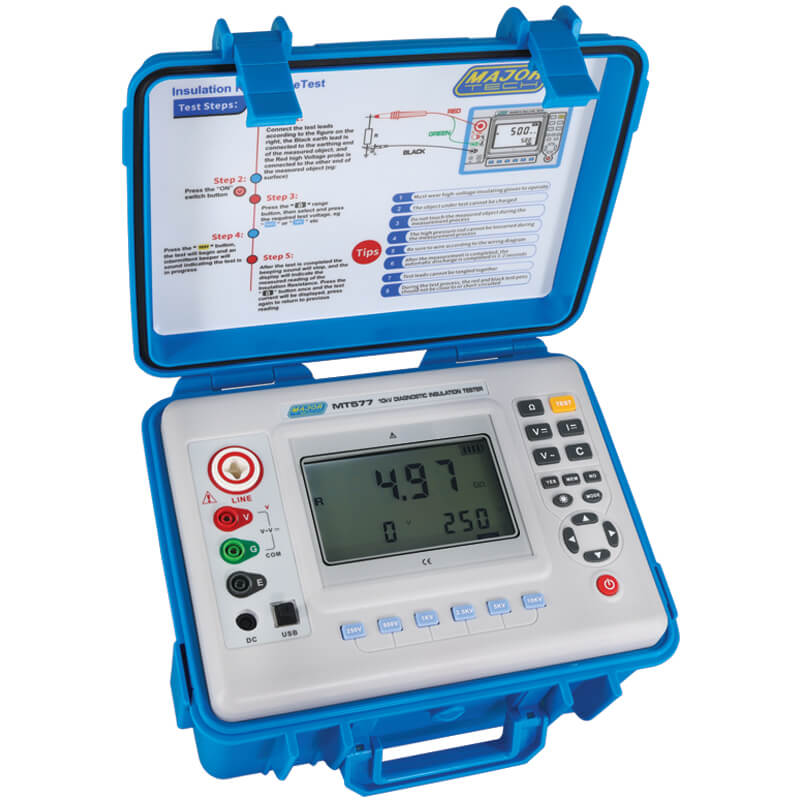

10kV Diagnostic Insulation Tester | 0.2 MΩ to 35 TΩ Range | 6 Voltage Settings | Large Backlit LCD by Majortech
The 10kV Diagnostic Insulation Tester offers a 0.2 MΩ to 35 TΩ insulation resistance range and 6 preset voltage settings—ideal for testing insulation on transformers, cables, and electric circuits. Built for professionals, it features a large backlit LCD and stores up to 500 test results for efficient diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10kV Diagnostic Insulation Tester | 0.2 MΩ to 35 TΩ Range | 6 Voltage Settings | Large Backlit LCD by Majortech
Brand: Majortech
SKU: MT577
Alternatively Known As: High Voltage Insulation Tester, 10kV Insulation Resistance Tester, Diagnostic Insulation Meter, MT577 Insulation Tester
Technical Specifications
- Insulation Test Voltage Ranges: 250V, 500V, 1000V, 2500V, 5kV, 10kV
- Insulation Resistance Range: 0.2 MΩ to 35 TΩ
- Resolution: 0.001 MΩ to 0.01 MΩ depending on range
- Accuracy: ±3% reading ±5 digits
- DC Voltage Range: 0.0V to 1000V, Resolution: 0.1V, Accuracy: ±1.5% reading ±3 digits
- AC Voltage Range: 0.0V to 750V, Resolution: 0.1V, Accuracy: ±1.5% reading ±3 digits
- DC Current Range: 1mA to 1000pA, Resolution: 1pA, Accuracy: ±30% reading ±5 digits
- Capacitance Range: 10μF to 100nF, Resolution: 0.1nF, Accuracy: ±10% full scale ±5 digits
- Short Circuit Current Output: up to 6mA
- Memory: Stores 500 test results
- Display: Large backlit LCD
- Power Supply: 12.6V Lithium batteries
- Dimensions (H x L x W): 120mm x 350mm x 250mm
- Weight: 2.5 kg
Key Features
- 6 preset voltage ranges: 250V, 500V, 1000V, 2500V, 5kV, and 10kV
- Automatic circuit discharge after test completion
- Microprocessor controlled diagnostic tool
- Measures Absorption Ratio and Polarization Index
- Stores up to 500 test results with recall on LCD
- Large backlit LCD display showing insulation, measuring time, output voltage and current
- Measures up to 750V AC, 1000V DC, and capacitance up to 50μF
- Robust case for extended field use
- Powered by 12.6V Lithium batteries
- Data transfer to PC via optical USB and supplied software
Professional Installation Requirements
- Professional installation is not required; however, operation should be performed by trained personnel familiar with high voltage testing and safety procedures.
Applications
- Testing insulation on rotating machines
- Transformers insulation testing
- Cables insulation testing
- High voltage generators
- Electric circuits
- Surge arresters
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Battery-powered with rechargeable lithium batteries reduces disposable battery waste
- Accurate diagnostics help prevent electrical failures and reduce energy waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech MT577 10kV Diagnostic Insulation Tester is available now for immediate purchase. Ideal for mining, industrial, and electrical maintenance applications.
