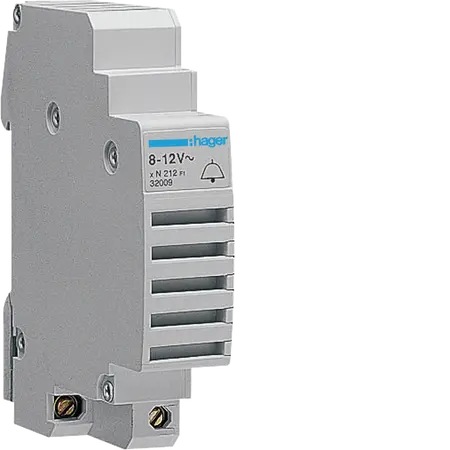

12V Electrical Bell 85dB Noise Level 18mm Width Hager

BRAND: :hager
SKU: SU212
$54.40 List price: $67.80
+ −
30 Days Return Electricians Unlock Trade Access
This Hager 12V Electrical Bell provides 85dB output for residential doorbells and general electrical signalling. Rated current is 0.33 A with 5 VA power consumption. Its compact 18mm width design has dimensions of H x L x W: 80mm x 65mm x 18mm. See the technical specifications below for installation requirements and applications.
Technical Specifications
  • Rated current: 0.33 A
  • Operating temperature: -10 - 40 °C
  • Storage/transport temperature: -25 - 60 °C
  • Cross-section flexible conductor: 4 mm²
  • Cross-section rigid conductor: 6 mm²
  • Total power loss under IN: 5 W
  • Power consumption: 5 VA
  • Noise level: 85 dB
  • Dimensions (H x L x W): 80mm x 65mm x 18mm
  • Weight: 0.1 kg
Key Features
  • High-reliability electrical bell
  • Compact design with a width of just 18 mm
  • Durable under varied temperature conditions
Professional Installation Requirements
  • Professional installation is recommended to ensure optimal performance and safety.
Applications
  • Residential doorbells
  • Commercial buzzer systems
  • General electrical signaling
Standards & Compliance
  • Complies with AS/NZS standards for safety and performance.
Environmental Benefits
  • Energy-efficient with minimal power loss
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Bell 12V SU212 is available now for immediate purchase, ideal for residential and commercial signaling applications.


FAQ

Q: What is the sound output of the Hager 12V Electrical Bell?
A: The bell has a noise level of 85dB.

Q: What are the main applications for this electrical bell?
A: It is suitable for residential doorbells, commercial buzzer systems, and general electrical signalling.


A 12V alert buzzer provides another option for residential doorbells and electrical signalling.

A 12V DC alarm siren can be used for audible signalling applications requiring a siren.

A 12V DC red warning bell is another option for electrical warning and signalling applications.

Backed by SCHNAP's 30-day returns policy for added purchasing confidence.

Data Sheet (SU212, 164 Kb) [Download]

Certificate (reach_declaration_SU2123.pdf, 103 Kb) [Download]
