15kV Diagnostic Insulation Tester | 500V to 15kV Range | Digital Display & Memory Storage | Majortech
The 15kV Diagnostic Insulation Tester offers a measurement range from 500V to 15kV, making it ideal for testing insulation on transformers, cables, and electric circuits. Built for professional electrical technicians, it features a large backlit LCD and stores up to 500 test results for easy recall.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

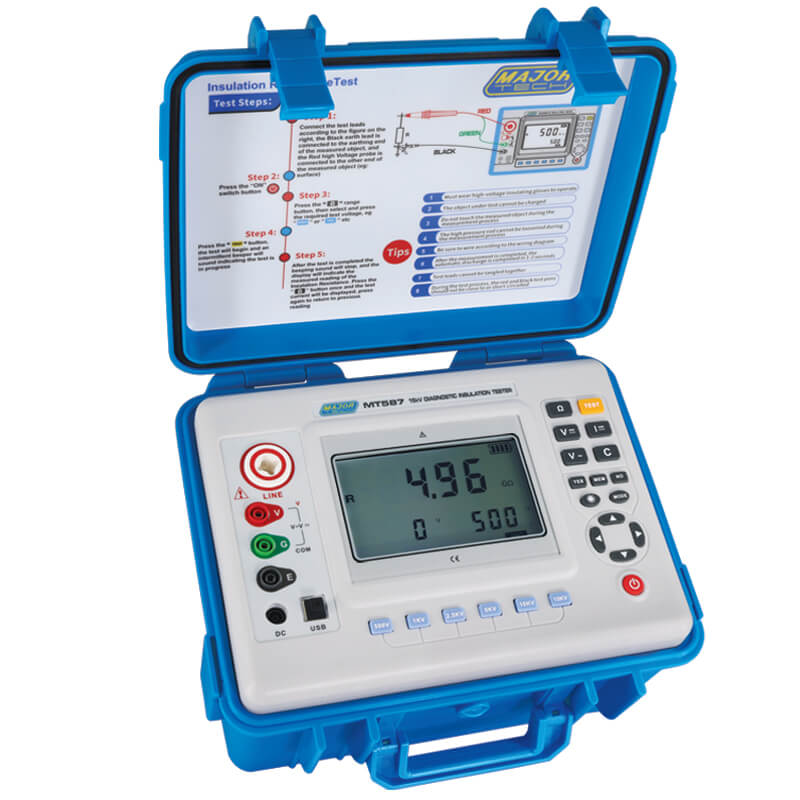

Product Name/Title: 15kV Diagnostic Insulation Tester | 500V to 15kV Range | Digital Display & Memory Storage | Majortech
Brand: Majortech
SKU: MT587
Alternatively Known As: High Voltage Insulation Tester, 15kV Insulation Resistance Tester, Digital HV Tester, MT587 Insulation Tester
Technical Specifications
- Insulation Test Voltage Ranges: 500V, 1000V, 2500V, 5000V, 10kV, 15kV
- Insulation Resistance Range: 0.5MΩ to 50TΩ depending on voltage range
- Resolution: 0.001MΩ to 0.01MΩ depending on range
- Accuracy: ±3% reading ±5 digits
- DC Voltage Range: 0.0V to 1000V, Resolution: 0.1V, Accuracy: ±1.5% reading ±3 digits
- AC Voltage Range: 0.0V to 750V, Resolution: 0.1V, Accuracy: ±1.5% reading ±3 digits
- DC Current Range: 1mA to 1000pA, Resolution: 1pA, Accuracy: ±30% reading ±5 digits
- Capacitance Range: 10μF to 100nF, Resolution: 0.1nF, Accuracy: ±10% full scale ±5 digits
- Short circuit current output up to 6mA
- Memory: Stores 500 test results
- Display: Large backlit LCD
- Dimensions (H x L x W): 150mm x 350mm x 250mm
- Weight: 2 kg
Key Features
- Digital high voltage tester with measurement range from 500V DC to 15kV DC
- 6 preset voltage ranges: 500V, 1000V, 2500V, 5000V, 10kV, and 15kV
- Automatic circuit discharge after test completion
- Microprocessor controlled with diagnostic capabilities
- Measures Absorption Ratio and Polarization Index for AC and DC voltage
- Stores up to 500 test results with recall on LCD display
- Large backlit LCD showing insulation readings, measuring time, output voltage and current
- Measures AC voltage up to 750V, DC voltage up to 1000V, DC current up to 6mA, and capacitance up to 50μA
- Robust case suitable for extended field use
- Powered by 12.6V rechargeable batteries
- Data transfer to PC via optical USB and supplied software
Professional Installation Requirements
- Professional use recommended; testing should be performed by qualified electrical technicians to ensure safety and accuracy.
Applications
- Testing insulation on rotating machines
- Transformers insulation testing
- Cables insulation testing
- High voltage generators testing
- Electric circuits insulation testing
- Surge arrestors testing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Rechargeable battery reduces disposable battery waste
- Accurate diagnostics help prevent electrical failures and reduce energy loss
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech MT587 15kV Diagnostic Insulation Tester is available now for immediate purchase. Ideal for industrial and specialist electrical insulation testing applications.
