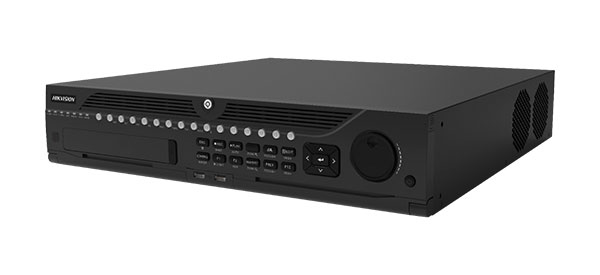

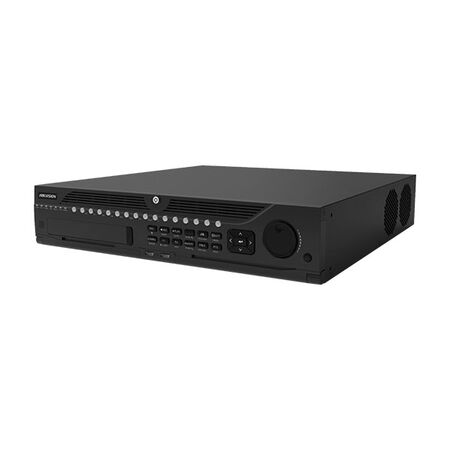

16 Channel Analogue DVR 34 Channel IP No HDD Hikvision
Hikvision analogue DVR features 16 analogue channels, 34 IP channels and no HDD included. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 16-Channel Turbo HD DVR, 16-Channel Analogue DVR, 34-Channel Hybrid DVR, Hikvision AcuSense DVR
Technical Specifications
- Analogue Video Inputs: 16-channel HDTVI/AHD/CVI/CVBS
- IP Camera Inputs: Up to 34 network camera channels
- Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264
- Recording Resolution: Up to 8 MP Lite
- Decoding Capability: 16-channel 1080p at 30 fps
- Storage Interfaces: 8 SATA interfaces and 1 eSATA interface
- Storage Capacity: Up to 12 TB per hard disk
- RAID Support: RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10
- Network Interfaces: 2 x Gigabit Ethernet
- Video Outputs: HDMI and VGA
- Alarm Interfaces: 16 alarm inputs and 8 alarm outputs
- Power Supply: 100–240 VAC, 50–60 Hz
- Power Consumption: Maximum 35 W without HDD
- Hard Disk: Not included
- Dimensions (H x L x W): 88mm x 465mm x 445mm
- Weight: 9 kg
Key Features
- Supports a combination of analogue and IP cameras
- Up to 34 IP camera inputs in enhanced IP mode
- AcuSense deep-learning perimeter protection
- Motion Detection 2.0 across analogue channels
- Supports HDTVI, AHD, CVI, CVBS and IP video formats
- Eight SATA bays with hot-swappable HDD support
- RAID 0, 1, 5, 6 and 10 storage configurations
- Hik-Connect and DDNS support for remote management
- Dual Gigabit Ethernet ports
- POS-triggered recording and POS information overlay
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical installer. Mains connection, camera cabling, network configuration and commissioning should comply with applicable Australian electrical and CCTV installation requirements.
Applications
- Commercial CCTV surveillance systems
- Retail, warehouse and industrial security installations
- Mixed analogue and IP camera upgrades
- Large-scale security systems requiring extended storage
- Remote video monitoring and perimeter protection
Standards & Compliance
- AS/NZS 62676.1.1:2020 - Video surveillance system requirements for security applications
- AS/NZS 62676.3:2020 - Analog and digital video interfaces
Environmental Benefits
- H.265 Pro+ compression can reduce recording bandwidth and storage requirements compared with less efficient codecs
- Eight storage bays and RAID support can extend system service life and reduce premature equipment replacement
- No HDD is supplied, allowing the installer to select storage capacity appropriate to the application and avoid unnecessary component use
- Long-term support for mixed analogue and IP systems can reduce waste during staged CCTV upgrades
Warranty Information
Hikvision's published RMA policy lists a 36-month standard warranty for 8/9 Series DVR products, subject to regional terms, proof of purchase and authorised distribution. Warranty support should be confirmed with the Australian distributor.
Available Now
Available through Hikvision and authorised Australian security distributors, subject to current model and regional stock status.
