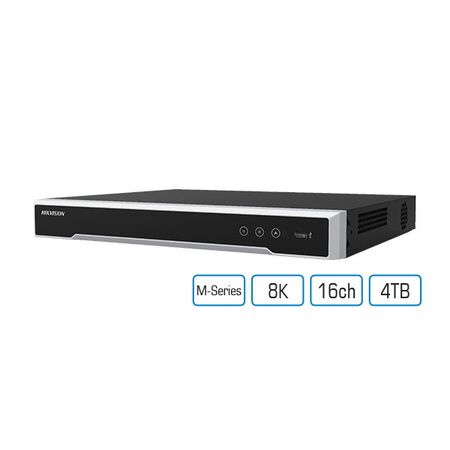

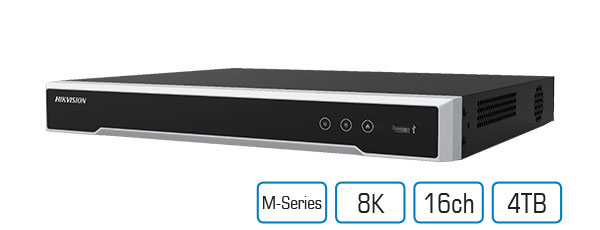

16 Channel M-Series NVR with 4TB HDD Hikvision
Hikvision M-Series NVR features 16 channels and a 4TB HDD. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-7716NI-M4/16P-4TB, 16-Channel Network Video Recorder, 16-Port PoE NVR, CCTV Recorder
Technical Specifications
- Model: DS-7716NI-M4/16P-4TB
- Video Input: 16-channel IP camera input
- Maximum Camera Resolution: Up to 32 MP
- Incoming Bandwidth: 256 Mbps
- Outgoing Bandwidth: 256 Mbps
- Video Compression: H.265+/H.265/H.264+/H.264
- Decoding Capability: Up to 2-channel 32 MP, 10-channel 8 MP or 40-channel 1080p at 30 fps
- Synchronous Playback: 16-channel
- Storage Included: 4TB HDD
- HDD Interfaces: 4 SATA interfaces, up to 16TB per drive
- PoE: 16 x RJ-45 ports, IEEE 802.3af/at, up to 200W total
- Video Outputs: 8K HDMI, 4K HDMI, VGA and CVBS
- Network Interface: 1 x 10/100/1000 Mbps RJ-45 Ethernet port
- Alarm Interfaces: 16 alarm inputs and 9 alarm outputs
- Operating Temperature: -10°C to 55°C
- Power Supply: 100-240VAC, 50-60Hz
- Chassis: 19-inch rack-mounted 1.5U
- Dimensions (H x L x W): 75mm x 400mm x 445mm
- Weight: 5.7 kg
Key Features
- Supports up to 16 IP cameras
- Integrated 16-port PoE for direct camera connection
- 8K HDMI video output capability
- H.265+ compression helps reduce storage requirements and bandwidth consumption
- Four SATA bays support future storage expansion
- 16-channel synchronous playback
- Supports VCA events including motion, line crossing, intrusion, ANPR and people counting when supported by connected cameras
- Hik-Connect and DDNS support for remote system management
- Rack-mountable 1.5U metal chassis
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical technician. Mains connection, PoE cabling, network configuration and CCTV commissioning should follow applicable local requirements and AS/NZS 62676 guidance.
Applications
- Commercial CCTV surveillance systems
- Retail, warehouse and office security installations
- Multi-camera residential security systems
- Industrial and site monitoring
- Centralised recording for PoE IP camera networks
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance system requirements for security applications
- AS/NZS 62676.4:2020 – Video surveillance system application guidelines
Environmental Benefits
- H.265+ video compression can reduce required storage capacity and associated data-transfer demand compared with older compression formats
- Four SATA bays allow storage expansion and can extend the usable service life of the recorder
- Centralised recording reduces the need for separate recording hardware across multiple camera systems
Warranty Information
Warranty terms depend on the Australian sales channel and product classification. Confirm coverage with the authorised distributor before purchase; Hikvision Australia's published five-year programme applies to listed premium product lines, while standard M-Series NVR coverage may differ.
Available Now
Available through Hikvision and authorised Australian security and surveillance distributors.
