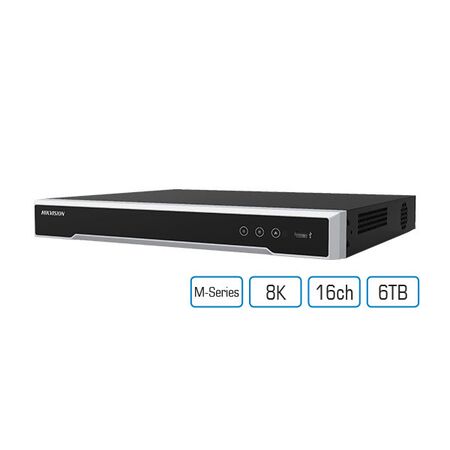

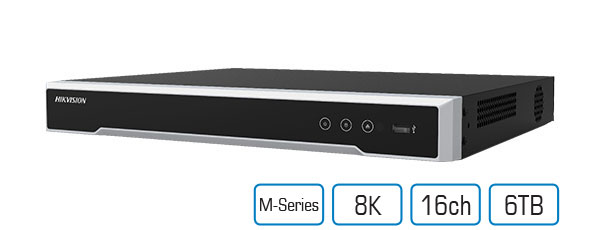

16 Channel M-Series NVR with 6TB HDD Hikvision
Hikvision M-Series NVR features 16 channels and a 6TB HDD. Ideal for CCTV and security installs.
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-7616NI-M2/16P-6TB, 16-channel PoE network video recorder, M-Series NVR
- Product Model: DS-7616NI-M2/16P-6TB
- Video Inputs: 16-channel IP video input
- Maximum Camera Resolution: Up to 32MP
- Incoming Bandwidth: 256Mbps
- Outgoing Bandwidth: 256Mbps
- Video Compression: H.265+, H.265, H.264+, H.264
- Decoding Capability: 2-channel 32MP plus 2-channel 8MP, or up to 20-channel 4MP
- Storage: Pre-installed 6TB HDD
- HDD Interfaces: 2 SATA interfaces, up to 16TB per disk
- PoE Ports: 16 x RJ-45 10/100Mbps, IEEE 802.3af/at, up to 200W total
- Network Interface: 1 x RJ-45 10/100/1000Mbps
- Display Output: HDMI up to 8K at 30Hz; VGA up to 1080p at 60Hz
- Playback: 16-channel synchronous playback
- Alarm I/O: 4 inputs and 1 output
- Power Supply: 100–240VAC, 50–60Hz
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% non-condensing
- Certifications: FCC Part 15 Subpart B and CE electromagnetic compatibility markings
- Dimensions (H x L x W): 52mm x 384mm x 317mm
- Weight: 3.7 kg
- 16-channel IP video recording for commercial and residential CCTV systems
- Integrated 16-port PoE switch for direct camera connection and power
- 8K HDMI output for high-resolution monitoring
- Supports cameras up to 32MP, subject to ultra-HD mode limitations
- H.265+ compression can reduce storage requirements by up to 75%
- Dual-stream recording for efficient local recording and remote viewing
- 16-channel synchronous playback
- Two SATA bays for additional or replacement surveillance storage
- Supports VCA events including motion, line crossing, intrusion, heat mapping, ANPR and people counting when supported by compatible cameras
- Hik-Connect, DDNS, ONVIF and plug-in-free web access support
- Installation and commissioning should be performed by a suitably qualified CCTV/electrical professional. Mains connection, PoE cabling, protective earthing and network installation should comply with applicable Australian requirements, including AS/NZS 3000. CCTV system design and commissioning should consider AS/NZS 62676.1.1:2020. ([hsenode.com](https://www.hsenode.com/NewSamples/AS/125266347/AS-NZS-62676.1.1-2020-1.pdf))
- 16-camera IP CCTV installations
- Retail, office and commercial premises surveillance
- Warehouses, workshops and industrial facilities
- Residential security systems requiring centralised PoE camera recording
- High-resolution security monitoring with local HDMI display
- Remote video monitoring and playback through Hik-Connect or network services
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
- Applicable CCTV selection, planning and installation guidance: AS 4806.2-2006, reconfirmed 2015
- Applicable electrical installation requirements: AS/NZS 3000:2018
- Australian electrical equipment supply may also require EESS registration and RCM obligations through the responsible supplier; verify the exact Australian SKU and documentation before sale. ([hsenode.com](https://www.hsenode.com/NewSamples/AS/125266347/AS-NZS-62676.1.1-2020-1.pdf))
- H.265+ video compression can reduce storage requirements by up to 75%, potentially reducing storage hardware and associated energy use. ([assets.hikvision.com](https://assets.hikvision.com/prd/public/all/doc/m000060966/DS-7616NI-M2_16P_Datasheet_20250114.pdf))
- Dual-stream recording can reduce network bandwidth requirements for remote viewing. ([assets.hikvision.com](https://assets.hikvision.com/prd/public/all/doc/m000060966/DS-7616NI-M2_16P_Datasheet_20250114.pdf))
- Two SATA bays support storage replacement or expansion, which can extend the usable service life of the recorder.
- The steel and electronic components can be separated for responsible recycling at end of life.
Typically supplied in Australia with a 3-year back-to-base manufacturer warranty through authorised distribution channels; the pre-installed HDD may have a separate shorter warranty period. Confirm the applicable warranty terms with the authorised reseller because Hikvision states that warranty periods are governed by the relevant contract terms. The Hikvision Australia 5-year programme lists DeepinMind and Ultra NVR series, not standard M-Series NVRs. ([securitywholesalers.com.au](https://www.securitywholesalers.com.au/faqs/warranties-cctv-products/?utm_source=openai))
Available through Hikvision and authorised Australian security-system distributors; confirm Australian-region firmware, RCM documentation and current distributor stock before ordering. ([pro-av.hikvision.com](https://pro-av.hikvision.com/au-en/newsroom/latest-news/2022/hikvision-ebay-online-market-statement/?utm_source=openai))
