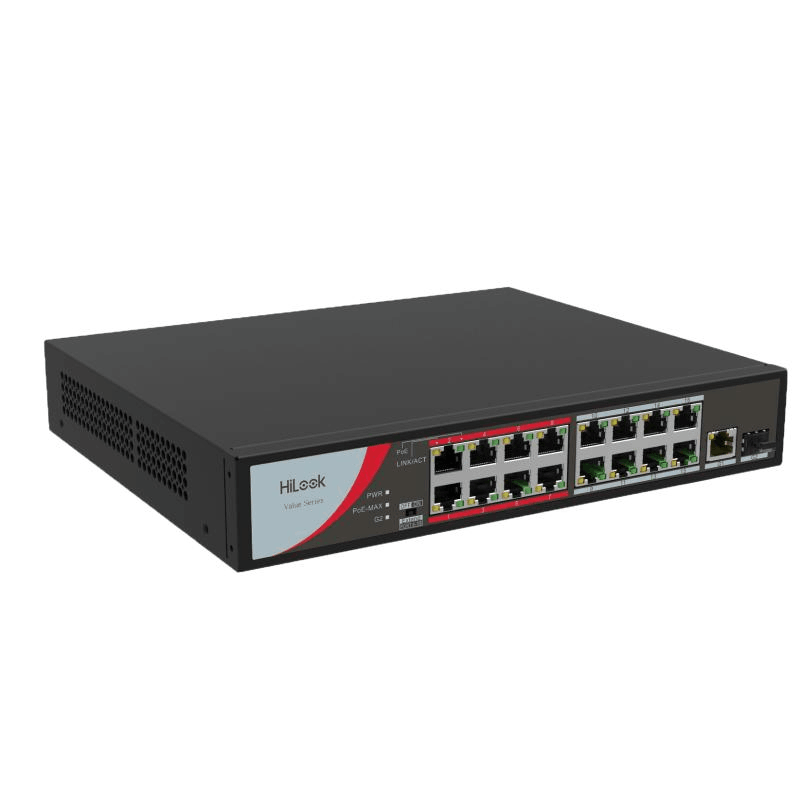

16 Port PoE Switch | 130W Power Budget | 6kV Lightning Protection | by HIKVISION
The 16 Port PoE Switch is designed for efficient network setups, featuring 16 x 100 Mbps PoE ports and a robust 130W power budget. Ideal for small to medium businesses and IP camera surveillance systems, it offers 6kV lightning protection on all ports, ensuring reliable performance. With a maximum transmission distance of 250 meters on select ports, this switch is perfect for expanding office networks and connecting PoE devices like VoIP phones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16 Port PoE Switch | 130W Power Budget | 6kV Lightning Protection | by HIKVISION
Brand: HIKVISION
SKU: NS-0318P-130
Alternatively Known As: 16 Port PoE Switch, Unmanaged PoE Network Switch, HIKVISION PoE Switch NS-0318P-130
Technical Specifications
- 16 x 100 Mbps PoE ports
- 1 x 1000 Mbps RJ45 port
- 1 x 1000 Mbps SFP port
- 130 W PoE power budget
- 6 kV lightning protection on all ports
- Maximum transmission distance 250 meters on ports 9-16 in extend mode
- MAC address auto learning and auto aging
- Dimensions (H x L x W): 45mm x 150mm x 250mm
- Weight: 1.5 kg
Key Features
- 16 x 100 Mbps PoE ports with 130 W total PoE power budget
- 1 x 1000 Mbps RJ45 port and 1 x 1000 Mbps SFP port for uplink
- All ports support 6 kV lightning protection
- Maximum transmission distance of 250 meters on ports 9 to 16 in extend mode
- MAC address auto learning and auto aging for efficient network management
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper setup and compliance with electrical safety standards.
Applications
- Small to medium business network setups
- IP camera surveillance systems
- Office and commercial network expansion
- PoE device connectivity such as VoIP phones and wireless access points
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports energy-efficient PoE technology reducing the need for separate power supplies
- Extended transmission reduces the need for additional network hardware, lowering material use
Warranty Information
2 years warranty provided by the manufacturer.
Available Now
The HIKVISION HILOOK NS-0318P-130 16 Port PoE Unmanaged Switch is available for immediate purchase, ideal for network expansion in commercial and surveillance applications.
