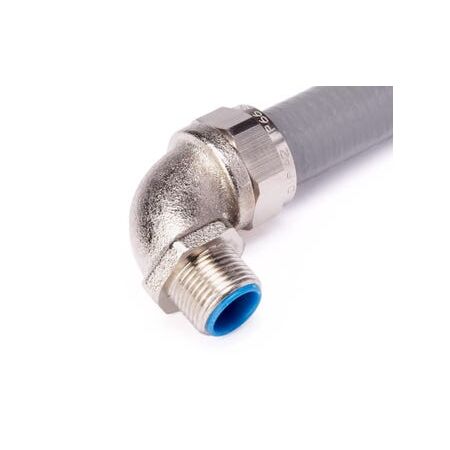

16mm Liquid Tight 90 Degree M16 IP66 Nickel-Plated Brass Cabac
Cabac Liquid Tight Conduit Fitting 90 Degree M16 IP66 Rated features Nickel plated brass connector body and hexagonal nut construction, nickel-plated brass finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Nickel plated brass connector body and hexagonal nut
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M16 x 1.5
- Conduit size: 16mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 36mm x 56mm x 56mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass construction for superior durability
- 90-degree fitting with male external thread for secure attachment
- High chemical resistance and mechanical strength
- Dust proof and liquid tight seal
- Complete with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel on conduit until tightened
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with hazardous area standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and liquids, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Nickel Plated Brass Liquid Tight 90 Degree Fitting M16 is available now for immediate purchase. Ideal for industrial and commercial wiring protection in hazardous and demanding environments.
FAQ
Q: What conduit size is this fitting designed for?
A: This fitting is designed for 16mm conduit and features an M16 x 1.5 external thread.
Q: Is this fitting suitable for hazardous area electrical installations?
A: Yes. It is tested and certified to IEC60079-0, IEC60079-31 and complies with AS/NZS 60035 for hazardous area electrical equipment.
Pair this installation with a liquid tight conduit fitting 45 degree where conduit routing requires a gradual change in direction.
A liquid tight conduit fitting stainless steel option is available for applications requiring corrosion resistant conduit connections.
Install an inspection tee to provide convenient access for future conduit inspection and maintenance.
