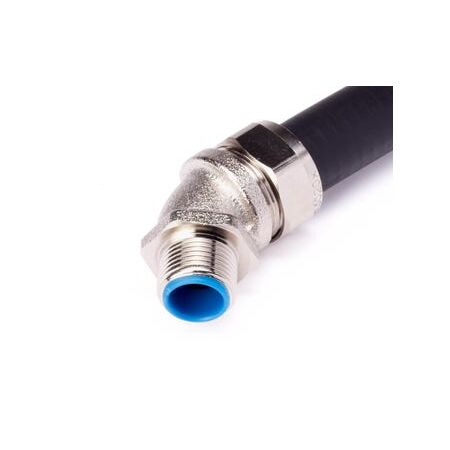

16mm Liquid Tight M20 45 Degree Nickel-Plated Brass Cabac
Cabac Liquid Tight Conduit Fitting M20 45 Degree External Thread features Nickel plated brass connector body and hexagonal nut construction, nickel-plated brass...
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Nickel plated brass connector body and hexagonal nut
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M20 x 1.5
- Conduit size: 16mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 33mm x 32mm x 46mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass construction for superior durability
- 45-degree male thread fitting with external thread for threaded entries and knockouts
- High chemical resistance and mechanical strength
- Dust proof and liquid tight seal
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting on conduit until tightened
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure compliance with hazardous area certifications and secure fitting.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static applications
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and liquids, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nickel Plated Brass Liquid Tight 45 Degree Fitting M20 is available now for immediate purchase. Ideal for industrial and commercial wiring protection in hazardous and general environments.
FAQ
Q: What conduit size is this fitting designed for?
A: This fitting is designed for 16mm conduit and features an M20 x 1.5 external thread.
Q: Where is this liquid tight conduit fitting commonly used?
A: It is suitable for machining centres and robotics, OEM wiring, low fire hazard applications, underfloor office wiring, and narrow space static installations.
Pair this fitting with a liquid tight conduit fitting 90 degree for conduit runs requiring a protected change of direction.
Use a liquid tight conduit fitting with straight configuration where conduit entries require direct sealed termination.
Install a liquid tight 90 degree stainless steel fitting where conduit layouts include additional directional changes.
Read the conduit fittings Australia guide for practical advice on selecting conduit fittings for industrial and commercial electrical installations.
