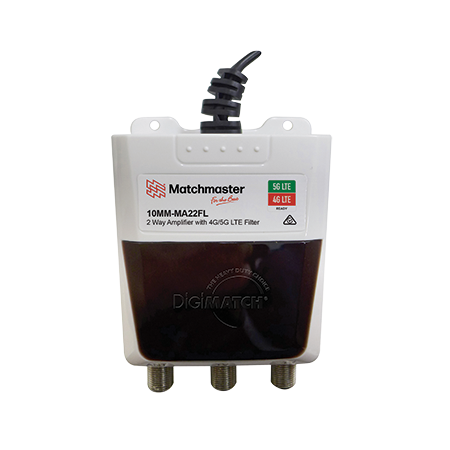

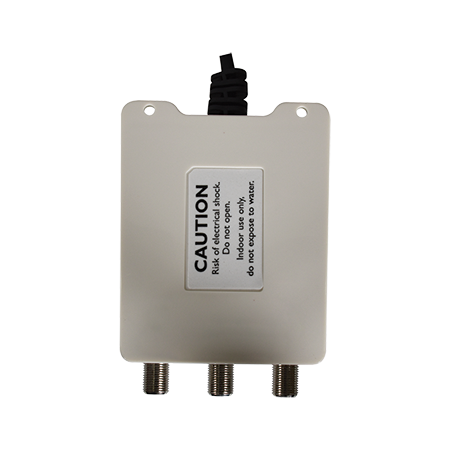

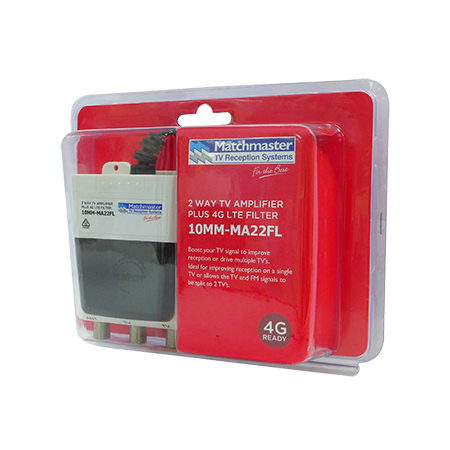

2 Way Amplifier with 4G/5G LTE Filter | 65dB Gain | Dual Output | SMA Connector by Matchmaster

SKU: 10MM-MA22FL
$149.00 List price: $180.30
+
2 way amplifier with 65dB gain and dual output—ideal for enhancing mobile signal in homes and offices. Built for improved call quality and data speeds, with 4G/5G LTE support and SMA connectors.

Product Name/Title: 2 Way Amplifier with 4G/5G LTE Filter

Brand: Matchmaster

SKU: 10MM-MA22FL

Alternatively Known As: 2 Way TV Amplifier, 2 Way Signal Splitter Amplifier, 4G/5G Filtered Amplifier, LTE Filtered TV Amplifier

Technical Specifications
  • Gain: 15dB ± 3dB
  • Frequency Range: 40-694MHz
  • Filter: 4G/5G LTE low pass filter at 694MHz
  • Inputs/Outputs: 1 input to 2 outputs
  • Connectors: Three ‘F’ type male to PAL (IEC) female adaptors included
  • Dimensions (H x L x W): 40mm x 120mm x 100mm
  • Weight: 0.3 kg
Key Features
  • 15dB gain locally powered 2-way splitter amplifier
  • 4G/5G LTE filter low pass 694MHz to block interference
  • Frequency range: 40-694MHz
  • Includes three ‘F’ type male to PAL (IEC) female connectors
  • Ideal for amplifying and splitting TV and FM signals
Professional Installation Requirements
  • Professional installation by a qualified technician or electrician is recommended to ensure optimal signal quality and safety.
Applications
  • Apartment TV signal amplification
  • Splitting TV and FM signals to two TVs or receivers
  • Improving signal quality in multi-device setups
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Improves signal quality reducing the need for multiple antennas and equipment
  • Energy efficient local power amplifier reduces overall power consumption
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster 2 Way Amplifier with 4G/5G LTE Filter is available now for immediate purchase. Ideal for apartment and multi-device TV signal amplification applications.

Brochure (10mm-ma22fl_brochure.pdf, 622 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
