In House Distribution Amplifier | 5-862 MHz | Adjustable Level & Equalizer
In house distribution amplifier with 5-862 MHz frequency range and adjustable level and equalizer—ideal for reducing 4G interference. Built for home and commercial use, with wall mounting and metal housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

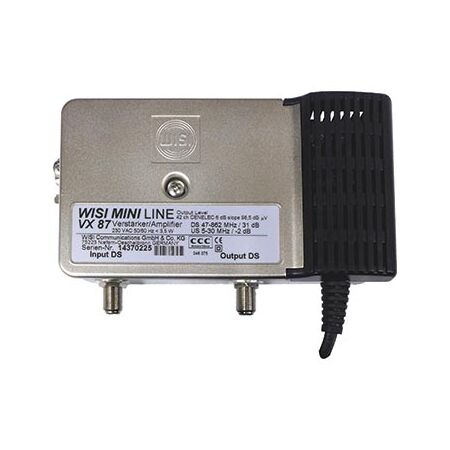

Product Name/Title: In House Distribution Amplifier | 5-862 MHz | Adjustable Level & Equalizer
SKU: 14MM-VX87
Alternatively Known As: VHF/UHF Distribution Amplifier, Mast Head Amplifier, Signal Booster, TV Signal Amplifier
Technical Specifications
- Frequency Range US/DS: 5-30/47-862 MHz
- Gain DS: 28-31 dB
- Attenuator: 0-18 dB
- Equaliser: 3-18 dB
- Output Level DS CENELEC, Flat: 96 dBµV
- Output Level DS CENELEC, 6dB Slope: 98.5 dBµV
- Output Level DS EN50083-5/3.Ord: 114 dBµV
- Noise Figure: <8 dB
- Return Path: -2 dB
- RF Inputs and Outputs: 'F' Type
- Operating Temperature: -20°C to +55°C
- Power Consumption: 3.5W
- EMC: CE, Class A
- Dimensions (H x L x W): 50mm x 120mm x 150mm
- Weight: 1.2 kg
Key Features
- Frequency range US/DS: 5-30/47-862 MHz
- Adjustable level and equalizer for signal optimization
- Built-in low pass LTE/4G filters to reduce interference
- Wall mounting metal housing for durability
- Passive return path
- F type connectors
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal signal distribution and compliance with electrical safety standards.
Applications
- Residential: TV signal distribution within homes
- Commercial: Signal distribution in small to medium buildings
- Broadcast: Amplification and equalization of VHF/UHF signals
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 3.5W reduces energy usage
- Built-in LTE/4G filters minimize interference, improving signal quality and reducing need for additional equipment
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The In House Distribution Amplifier is available now for immediate purchase. Ideal for residential and commercial TV signal distribution applications.
